CS-Lab CSMIO/IP-A User Manual

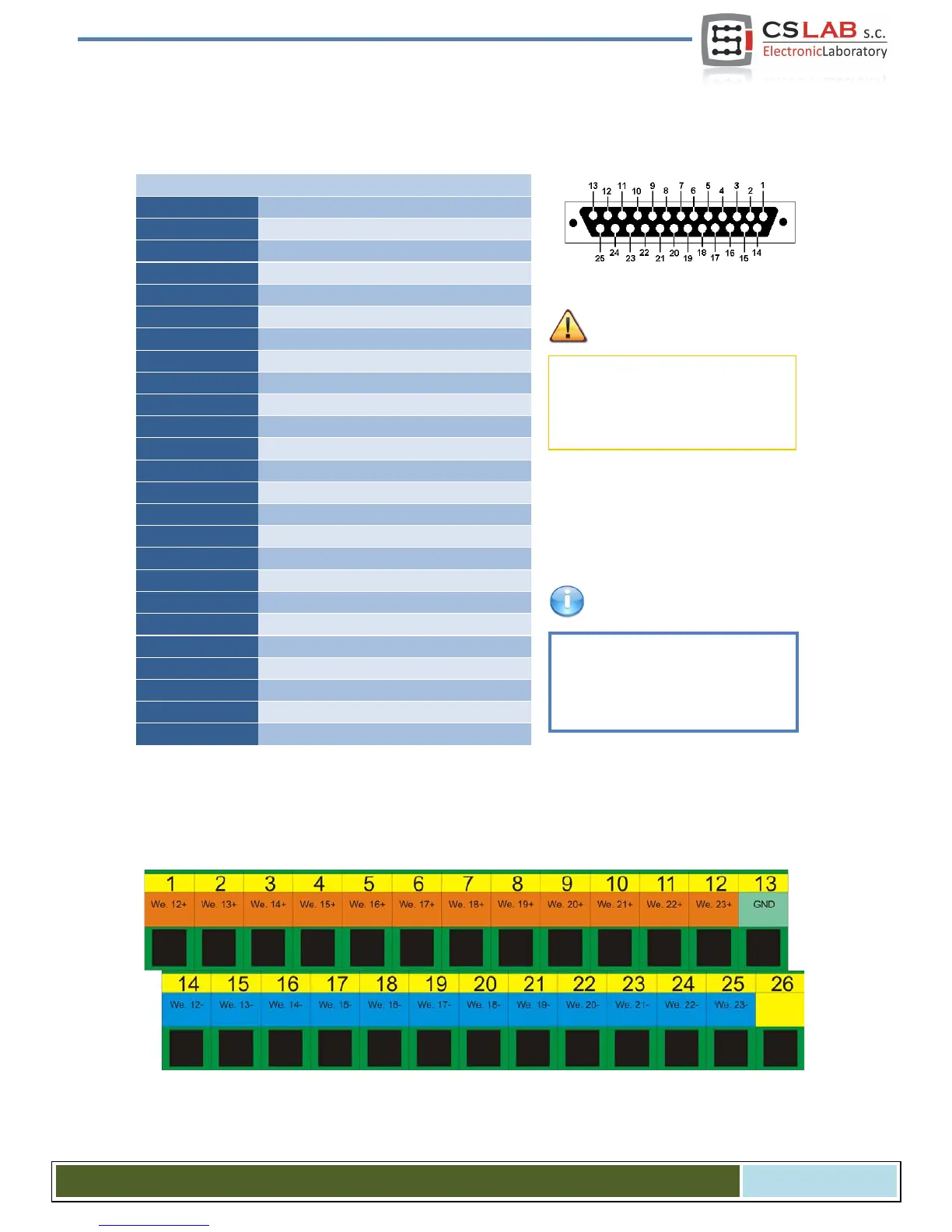

4.6 Digital inputs connector (12-23)
Oz
4.6.1 Signals on a terminal block connector
PIN number
Description
1
Input 12 (+)
2
Input 13 (+)
3
Input 14 (+)
4
Input 15 (+)
5
Input 16 (+)
6
Input 17 (+)
7
Input 18 (+)
8
Input 19 (+)
9
Input 20 (+)
10
Input 21 (+)
11
Input 22 (+)
12
Input 23 (+)
13
Not used (GND)
14
Input 12 (-)
15
Input 13 (-)
16
Input 14 (-)
17
Input 15 (-)
18
Input 16 (-)
19
Input 17 (-)
20
Input 18 (-)
21
Input 19 (-)
22
Input 20 (-)
23
Input 21 (-)
24
Input 22 (-)
25
Input 23 (-)
Pay special attention to not exceed
the permissible voltage (30VDC) on
input lines. It may cause damage of
the device.
Inputs: 12 – 23 have identical con-
struction like inputs: 0 -11. Look at
inputs: 0 – 1 description in the previ-
ous section.
CS- Lab s.c. – CSMIO/IP- A - CNC controller Page 26
