13.3 We begin the treatment

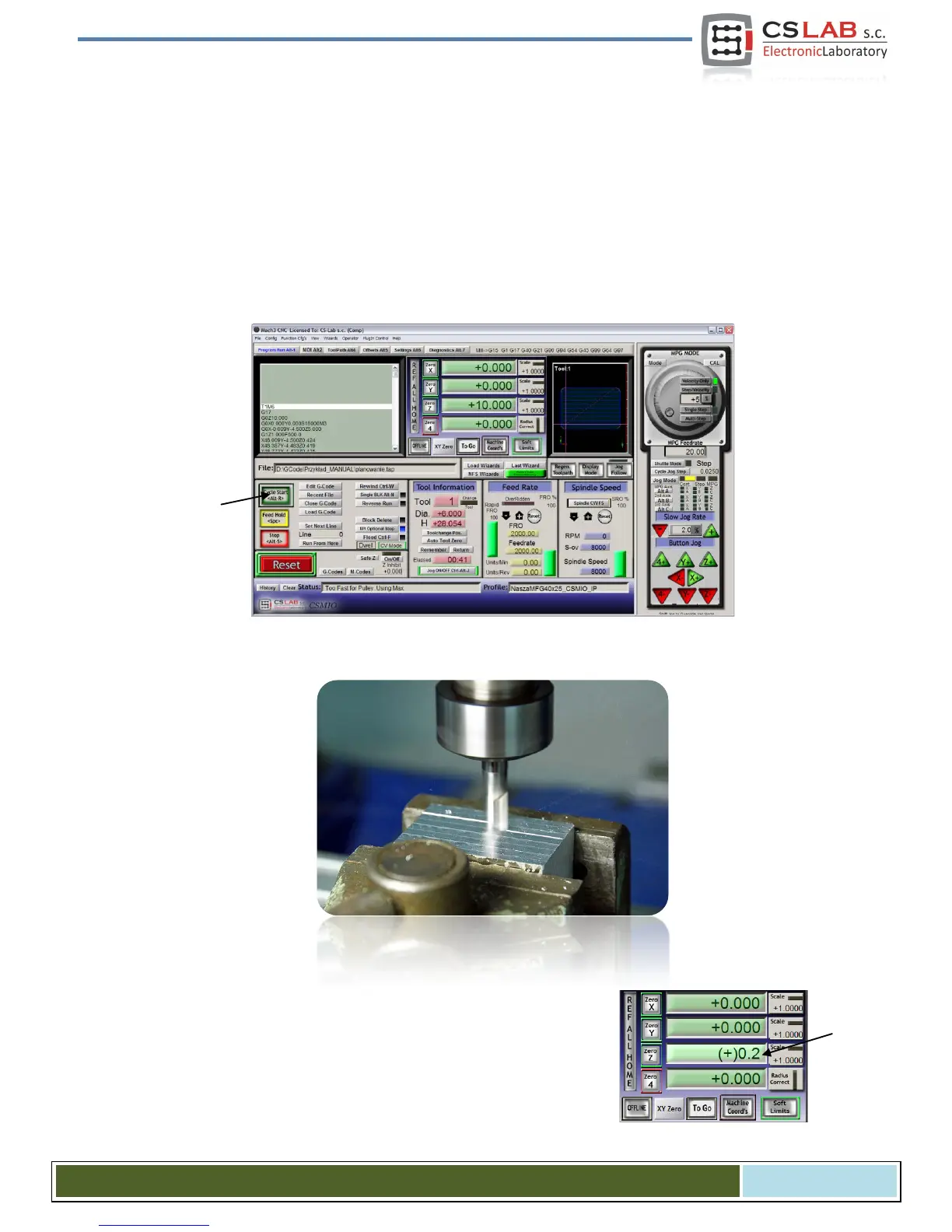

In Mach program, we select „File/Load G-Code” menu position or we click „Load G-Code” button on the
main screen. Select the file we created earlier: „planing.tap”. When the file is loaded, we can initially set
the machine over the material and enter on the MDI screen.
• G0G53 Z0 <enter>
• G0 X0 Y0 <enter>
The firs command causes the Z axis rises maximum high, the second one is to set the machines tool XY
axes in the defined earlier zero point of the material.
Go to the main screen again and click „Cycle Start” button – the treatment start.
Below a photo taken during the work:
You can change the tool for an engraving cutter and load the second,
previously generated trajectory. Before processing, there is one im-
portant detail. When planning the surface we lowered its level, the en-
graving logo would be 0.1mm depth, and not 0.3mm like the one we had
assumed. “This can be easily remedied by reducing the zero point level
about 0.2mm (planned depth). Click on the text box that displays current
CS- Lab s.c. – CSMIO/IP- A - CNC controller
Page 99
