Detailed description of the signals is available in ArtSoft® documentation: www.machsupport.com, below
we present short description of the most important.
Signals of axis enabling. Can be used e.g. as an enabling signals (Ser-
vo ON) in servo drives. For axes in use (section 10.3), the signals pass
into active state after pressing RESET on Mach3 screen. If Mach goes
into stop state, the signals are disabled.
Universal outputs. Can be used to control a spindle, cooling as well as
from VisualBasic scripts level.
Current limit output for stepper motors. In CSMIO/IP-A this signal is
not used.

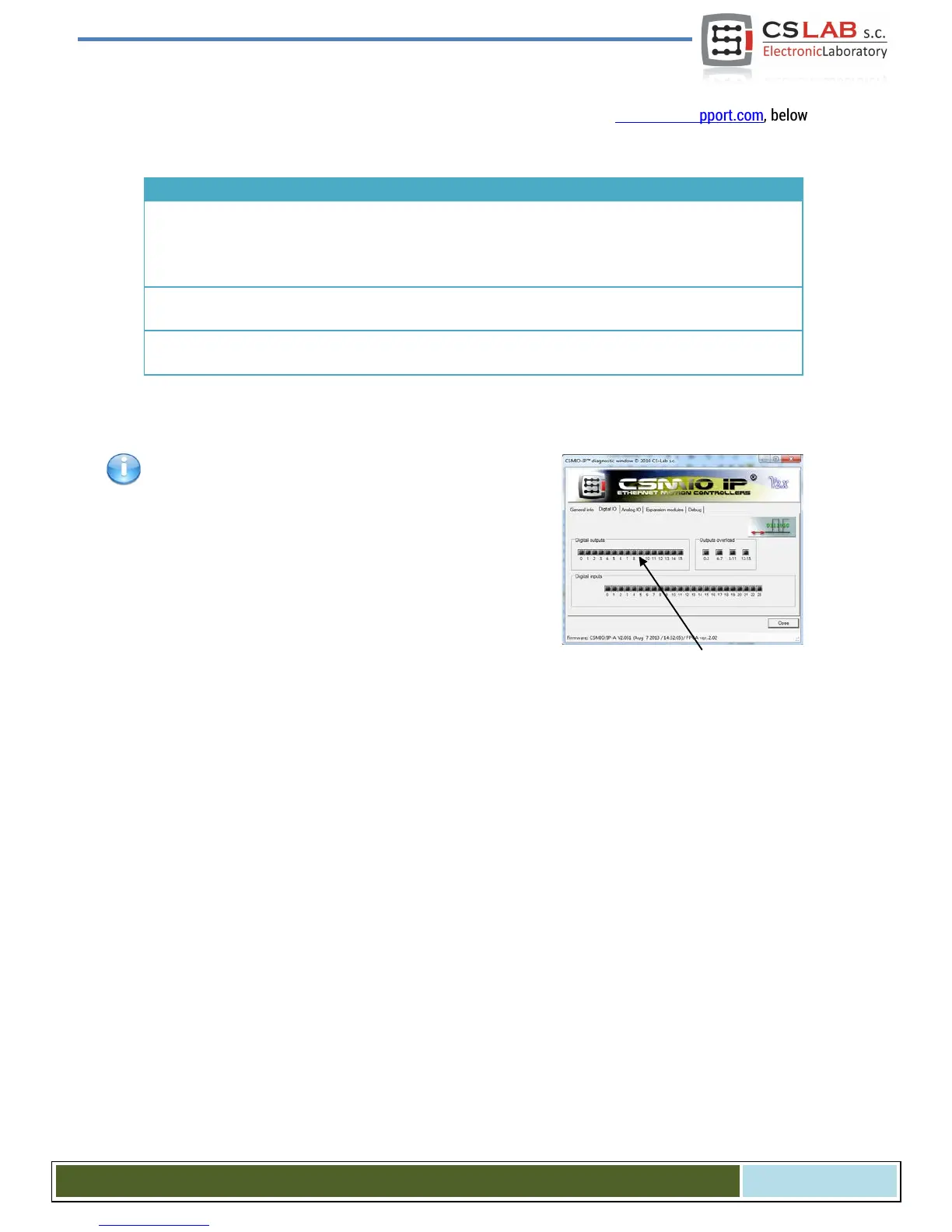

Again, during system startup the diagnostic window from the
“PlugIn Control” menu may be helpful. In „Digital IO” tab, you can
view current output signals state and assess if any problems
result from some wrong configuration or from some incorrect
electrical connection.
