D-Link DES-3010FA/GA User Guide

Page 104

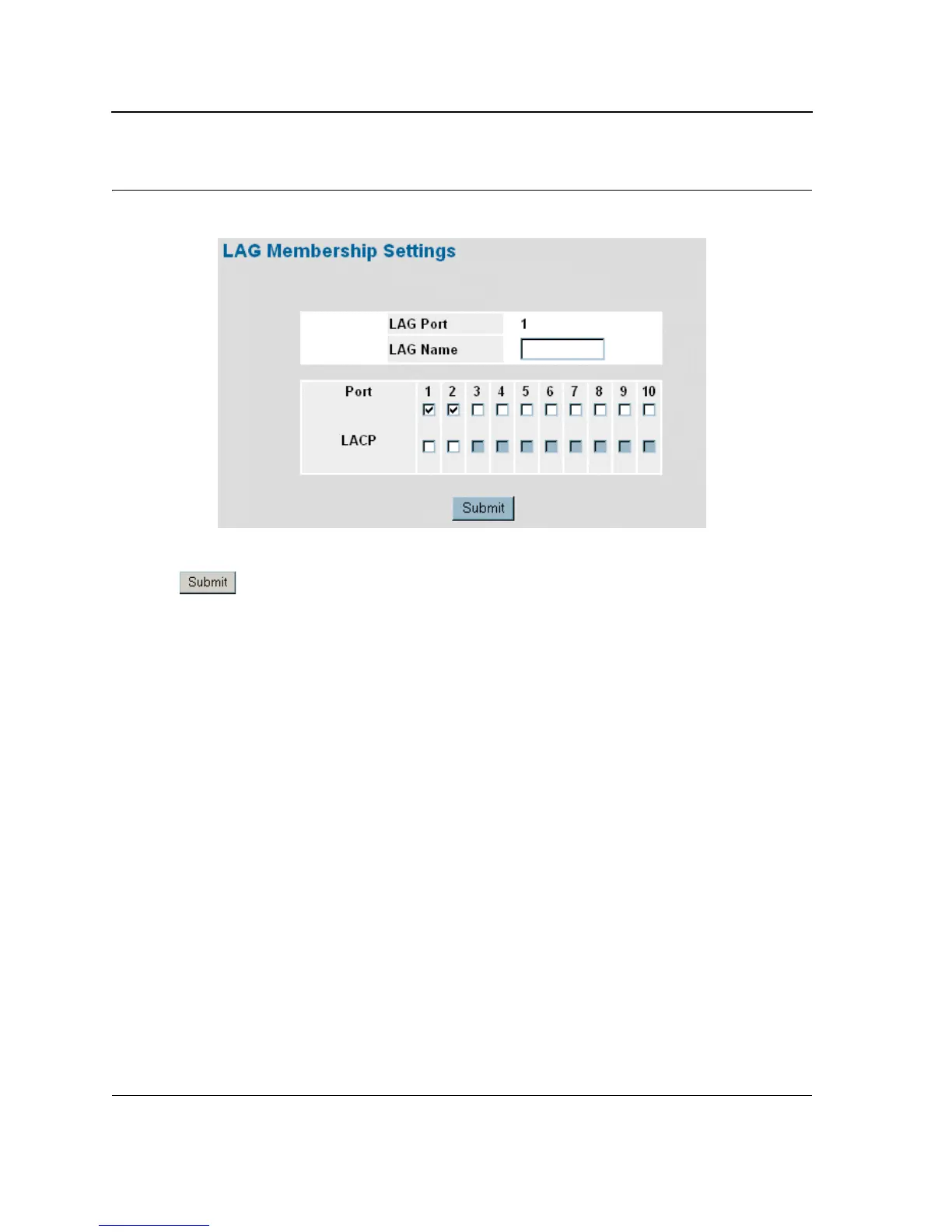

Figure 56: LAG Membership Settings Page

3. Define the Port and LACP fields.

4. Click . The LAG membership settings are saved, and the device is updated.
