Device Description
Viewing the Device
Page 11
Viewing the Device
The D-Link DES-3010FA and D-Link DES-3010GA are 10 port Fast Ethernet Managed Switches. The two devices
contain 8 network ports on the front panel for network connectivity. Device management is performed using an
Embedded Web Server (EWS) or through a Command Line Interface (CLI). The device configuration is performed
via a DB-9 RS-232 interface. This section contains descriptions for:
• DES-3010FA Front Panel
• DES-3010GA Front Panel
DES-3010FA Front Panel
The following figure illustrates the DES-3010FA front panel.

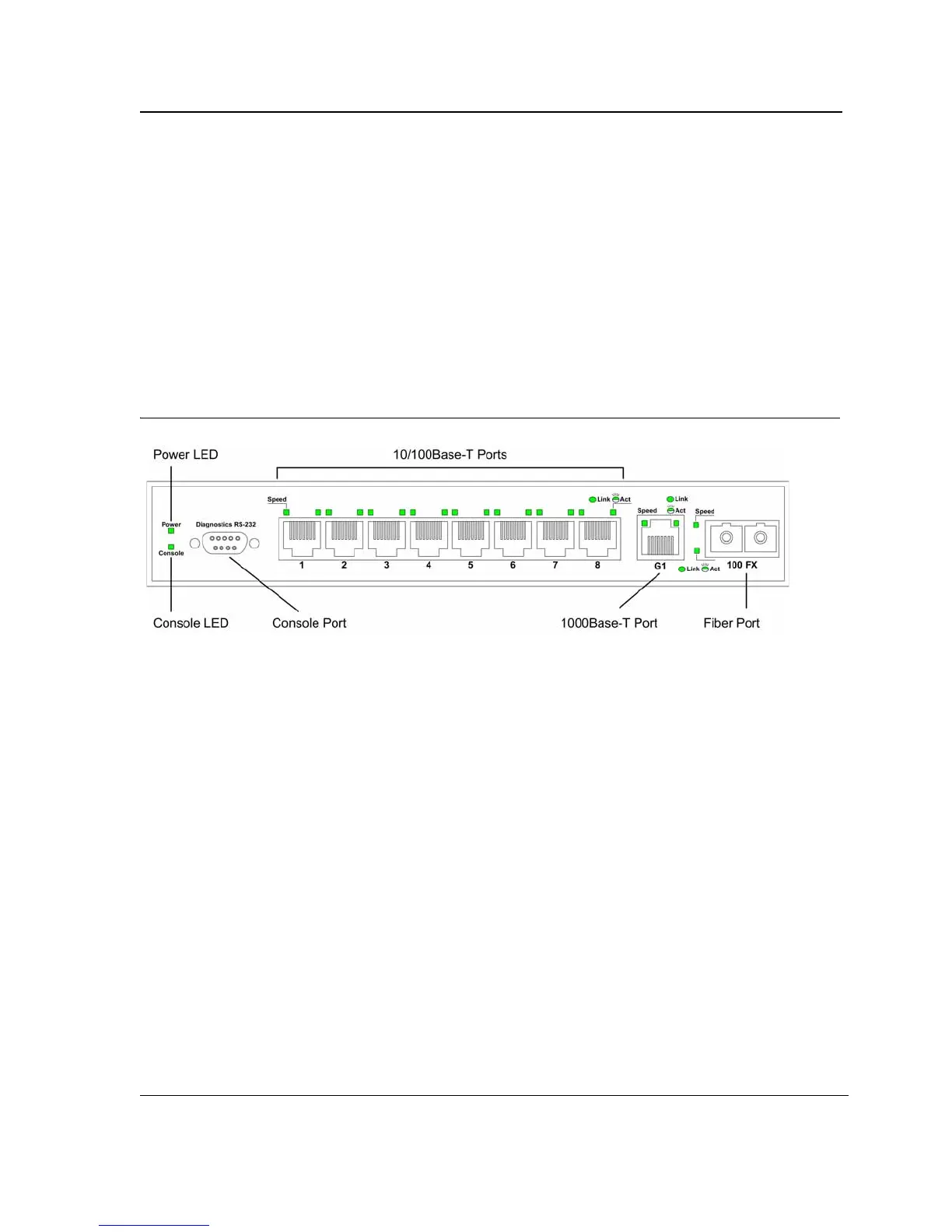

Figure 1: DES-3010FA Front Panel
The device front panel is configured as follows:
• 8 Fast Ethernet ports — RJ-45 ports designated as 10/100Base-TX . The RJ-45 ports are designated as
ports Ports1-8.
• DB-9 Console port — An asynchronous serial console port supporting the RS-232 electrical specification.
The port is used to connect the device to the console managing the device.
• 1000Base-T Copper port — Copper RJ-45 Gigabit port designated on the device as port 9.
• 100Base-FX port — Fiber port designated on the device as ports 10.
On the front panel there are the Port activity LEDs on each port and the Power LED displayed separately.
DES-3010GA Front Panel
The following figure illustrates the DES-3010GA front panel.
