D-Link DES-3010FA/GA User Guide
Page 14

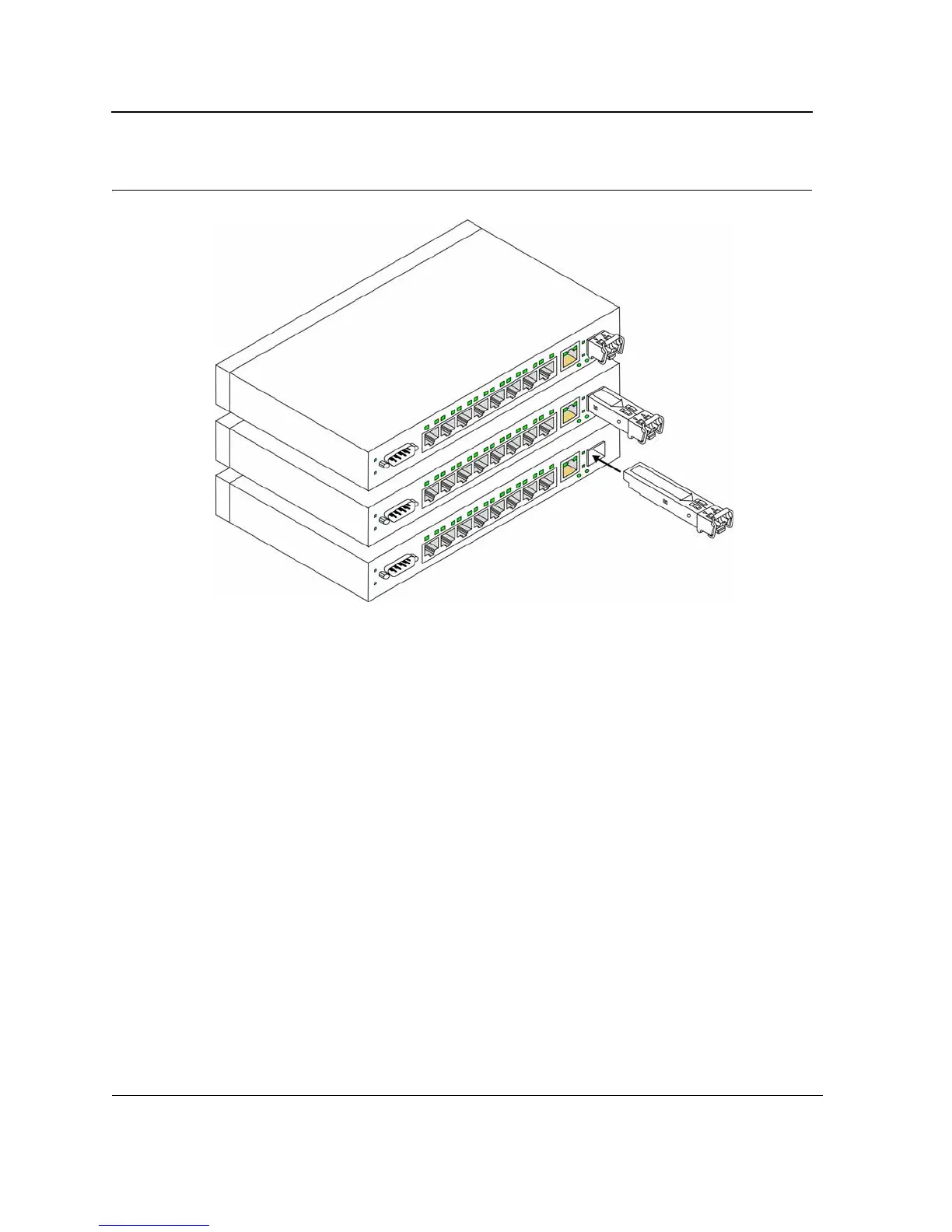

Figure 4: Inserting a GBIC into the Device
DB-9 Console Port
The DB-9 port is an asynchronous serial console port supporting the RS-232 electrical specification. The port is
used to connect the device to a console managing the device. This interface configuration is as follows:
• Eight data bits.
• One stop bit.
• No parity.
• Baud rate is 9600 (default). The user can change the rate from 115200 down to 9600 bps.
• Console speeds of 57600 and 115200.
