Configuring VLANs

Defining VLAN Properties

Page 109

2. Click . The Add VLAN page opens:

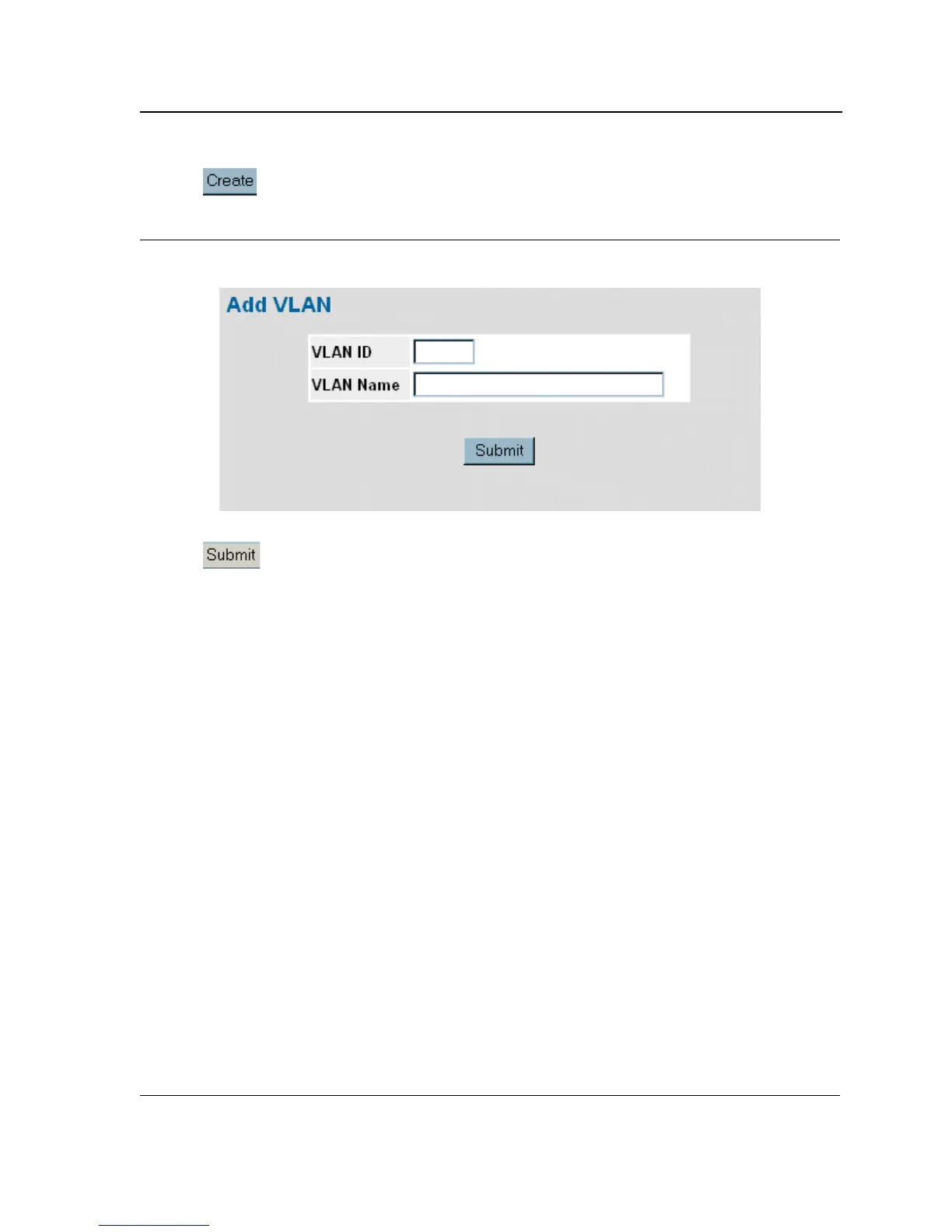

Figure 60: Add VLAN Page

3. Define the VLAN ID and VLAN Name fields.

4. Click . The VLAN ID is defined, and the device is updated.
