Configuring Spanning Tree

Defining Multiple Spanning Tree

Page 153

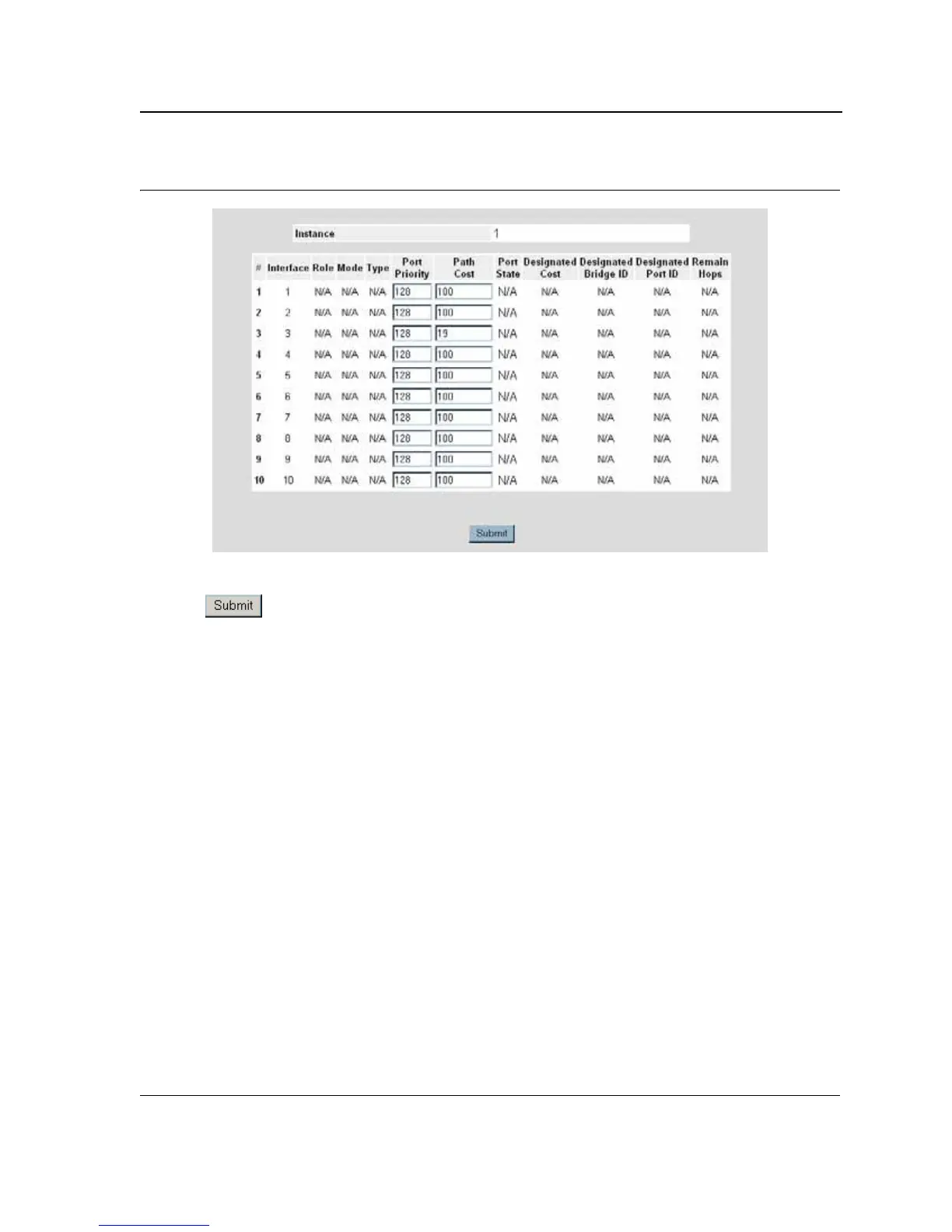

Figure 94: MSTP Interface Table

3. Define the Port Priority and the Path Cost fields.

4. Click . The MSTP interface settings are defined, and the device is updated.
