Device Description
LED Defiitions
Page 17

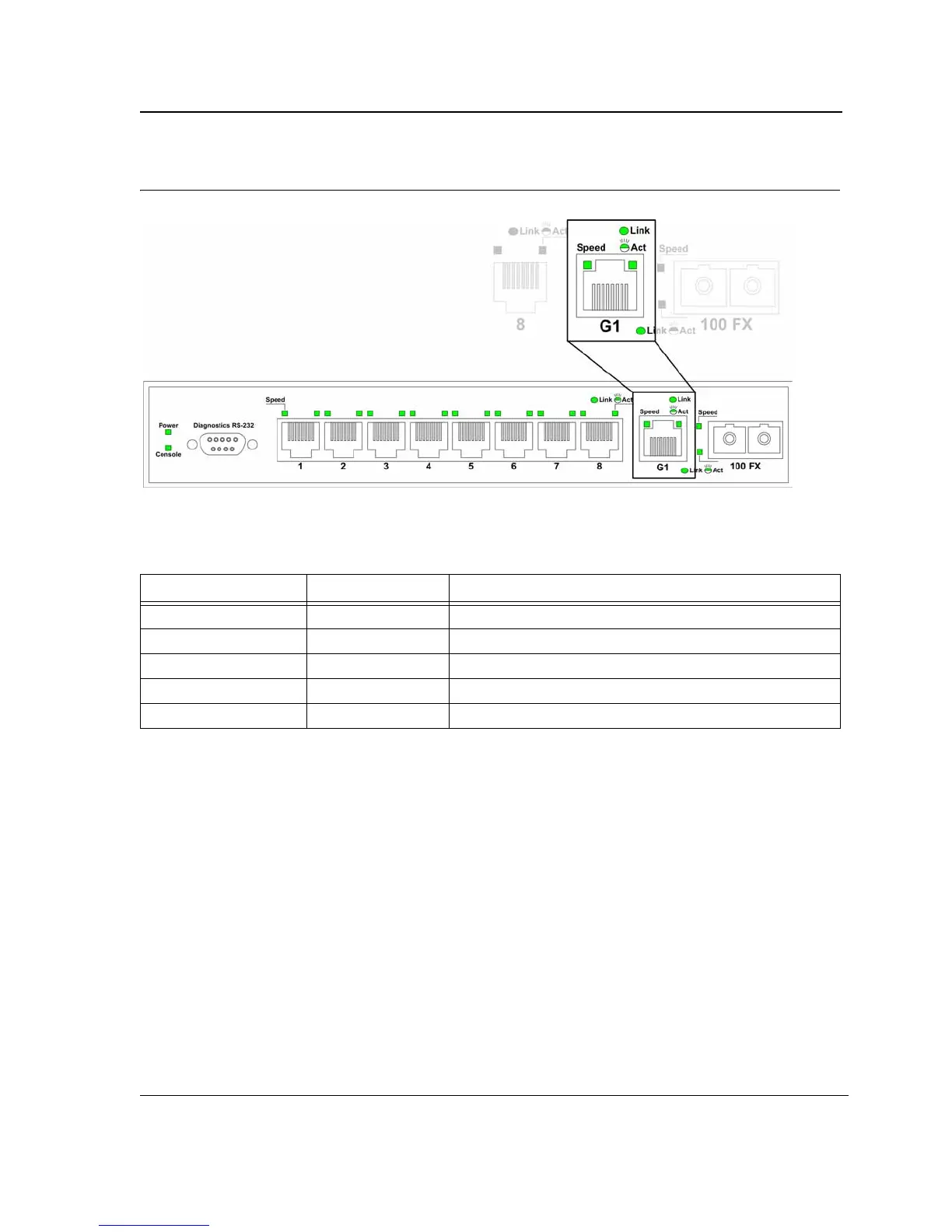

Figure 6: 1000Base-T Gigabit Ethernet RJ-45 Port LEDs
The RJ-45 ports have two LEDs, one for speed, and one for Link /activity. The LED indications are described in
the following table:
Fiber Port LEDs
The following figure illustrates the port LEDs.
Table 4: 1000Base-T Gigabit Ethernet RJ-45 Port LED Indications
Port Description LED Indication Description
Left LED - Speed Green A 100/1000-Mbps link is established on the port.
Off No link is established on the port.
Link/Activity LED Green A link is established on the port.
Flashing Green There is data transmission on the port.
Off No link is established on the link.
