Mounting Device

Installing the Device

Page 27

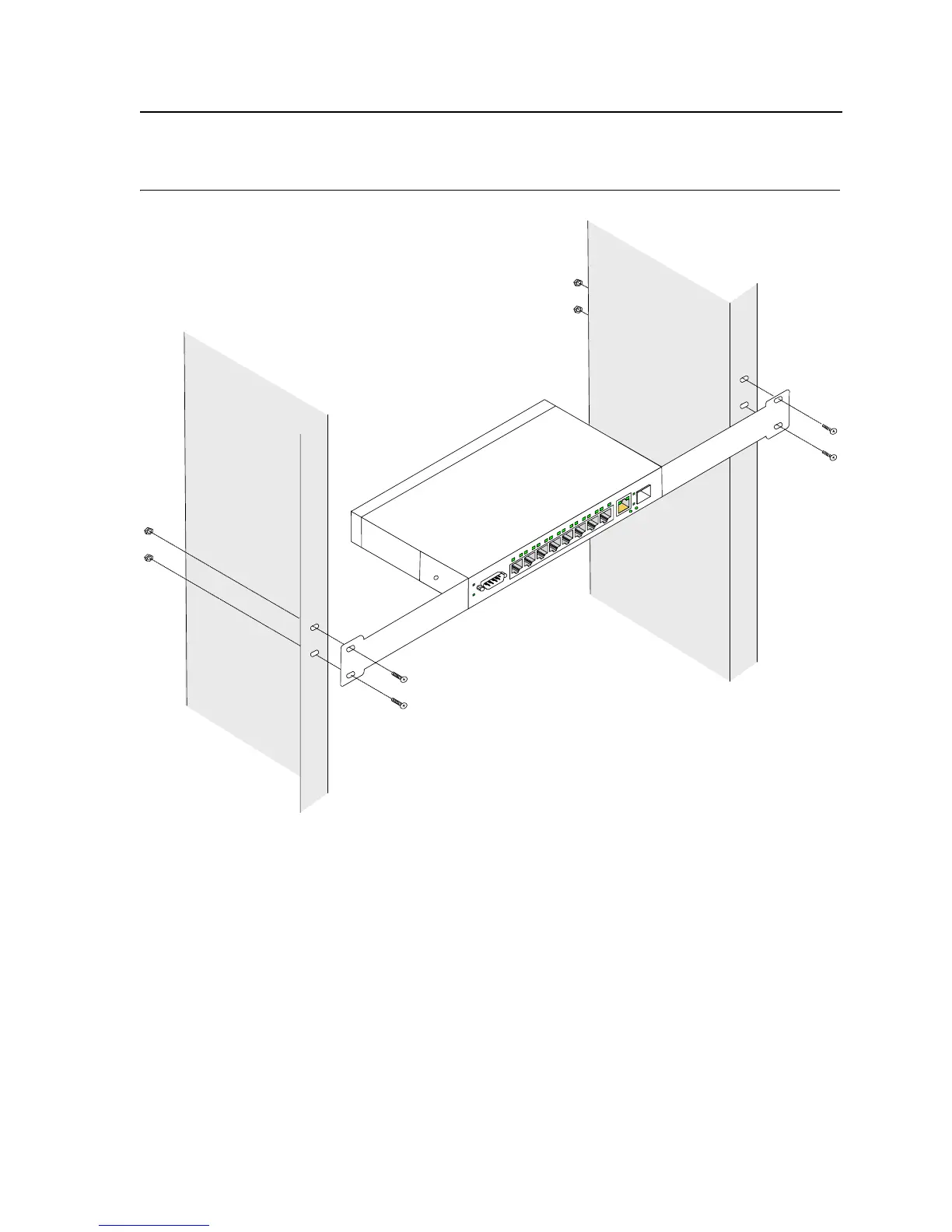

Figure 12: Mounting Device in a Rack

5. Secure the unit to the rack with the rack screws (not provided). Fasten the lower pair of screws before the

upper pair of screws. This ensures that the weight of the unit is evenly distributed during installation. Ensure

that the ventilation holes are not obstructed.
