D-Link DES-3010FA/GA User Guide

Page 72

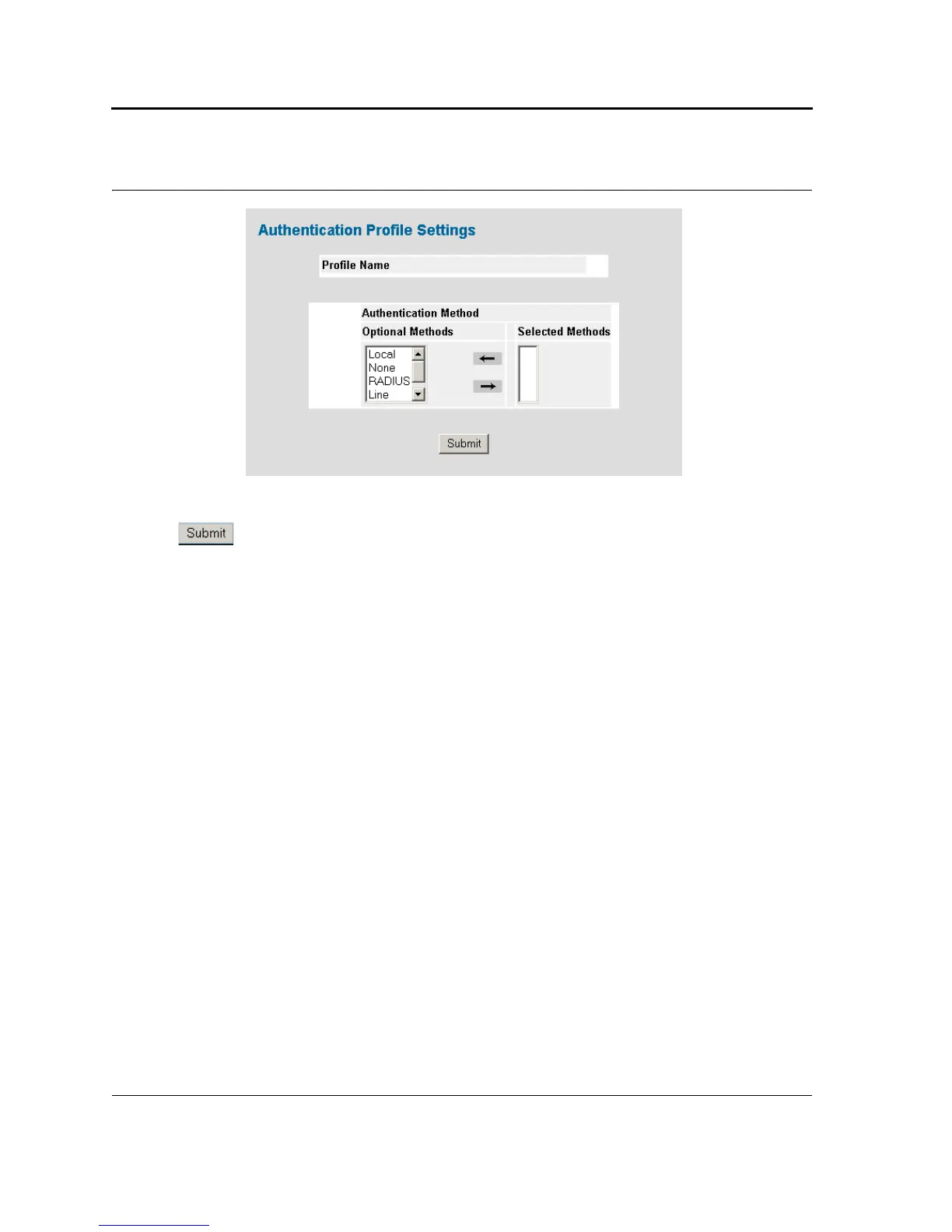

Figure 32: Authentication Profile Settings Page

3. Select an authentication method from the Optional Methods list.

4. Click . The authentication method is selected, and the device is updated.
