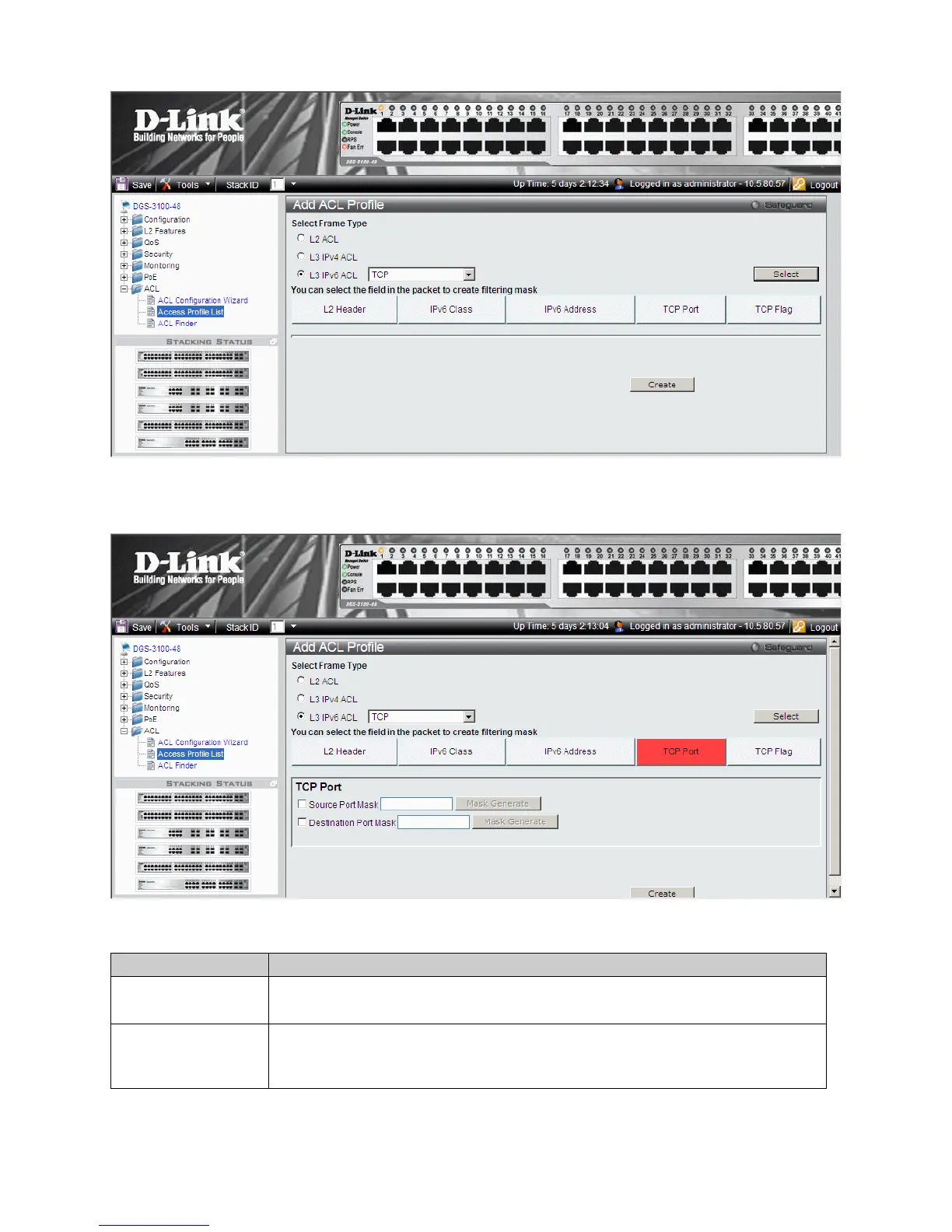

Figure 0-20 ACL Profile L3 IPv6 TCP Page
To define L3 IPv6 TCP Port ACL profile:
1. Click the TCP Port button. The ACL Profile L3 Ipv4 TCP Port Page updates to show the following:
Figure 0-21 ACL Profile L3 IPv6 TCP Port Page
The ACL Profile L3 Ipv4 TCP Port Page contains the following fields:
Field Description
Source Port Mask
Defines the range of source Ports relevant to the ACL rules. (0=ignore, 1=check).
For example, to set 0 – 15, set mask of FFF0.
Destination Port Mask
Defines the range of destination IP addresses, relevant to the ACL rules. (0=ignore,
1=check).
For example, to set 0 – 15, set mask of FFF0.
2. Select Source Port Mask and/or Destination Port Mask. The Mask Generate button is active.
221

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
