User's Manual
10

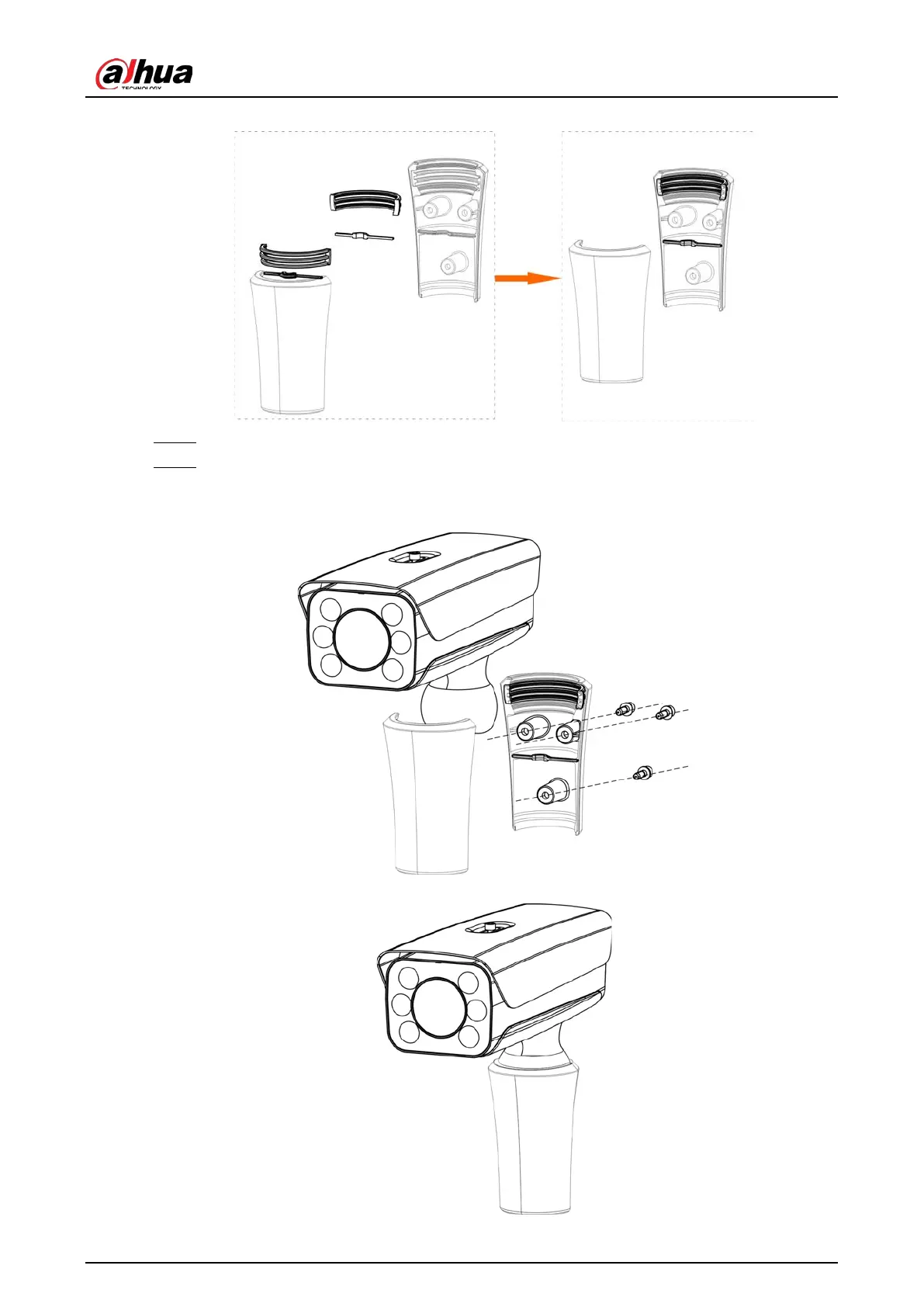

Figure 3-2 Prepare bracket housing
Step 2 Cover the spherical bracket with bracket housing.
Step 3 Use three M6×20 socket head cap screws to fix the bracket housing to the Camera.
For the illustration after installation.
Figure 3-3 Fix the bracket housing
Figure 3-4 Installation completed
