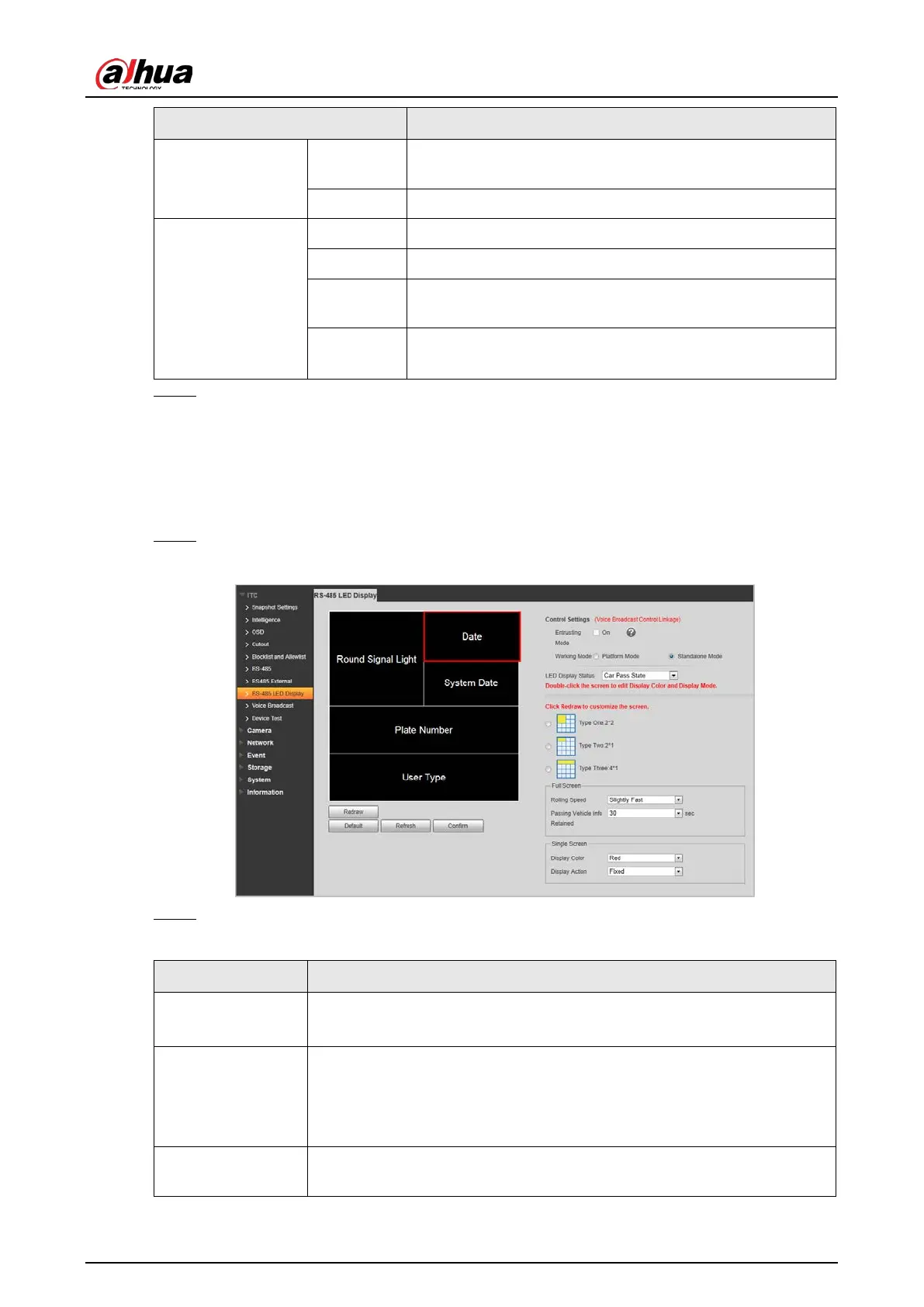

Page #53 background imageLoading...
Page #53 background image
User's Manual
44
Parameter Description
Common
Config
Click to restore to commonly selected fields (default).
Up/Down Click to move the field position up or down.
General config
Tag Head The tag head of data package. It is
aabb
by default.
Tag Tail
The tag tail of data package. It is
aa55
by default.
Encode
Type
Select encode type from
UTF-8
(default) and
GB2312
.
Check
Mode
Select check mode from
No Parity
,
CheckSum
and
XOR
Check
.
Step 3 Click
Confirm
.
4.5.1.7 RS-485 LED Display
Connect the LED display with the Camera through RS-485, and then you can configure the status,
display type, display color, action, speed, and more parameters of the LED.
Step 1 Select
Setting
>
ITC
>
RS-485 LED Display
.
Figure 4-51 RS-485 LED display
Step 2 Configure LED parameters.
Table 4-21 LED parameters description
Parameter Description
Entrusting Mode
Select
On
, and then the LED will be totally controlled by superior platform.
The protocol must be supported by the platform.
Working Mode
Platform Mode
: Select this to allow platform to control LED display
information.
Standalone Mode
: Display as configured, and not controlled by any
platforms.
LED Display Status
Select from
Car Pass State
, and
Normal Status
. The LED screen will
display as configured during the time period of either status.
