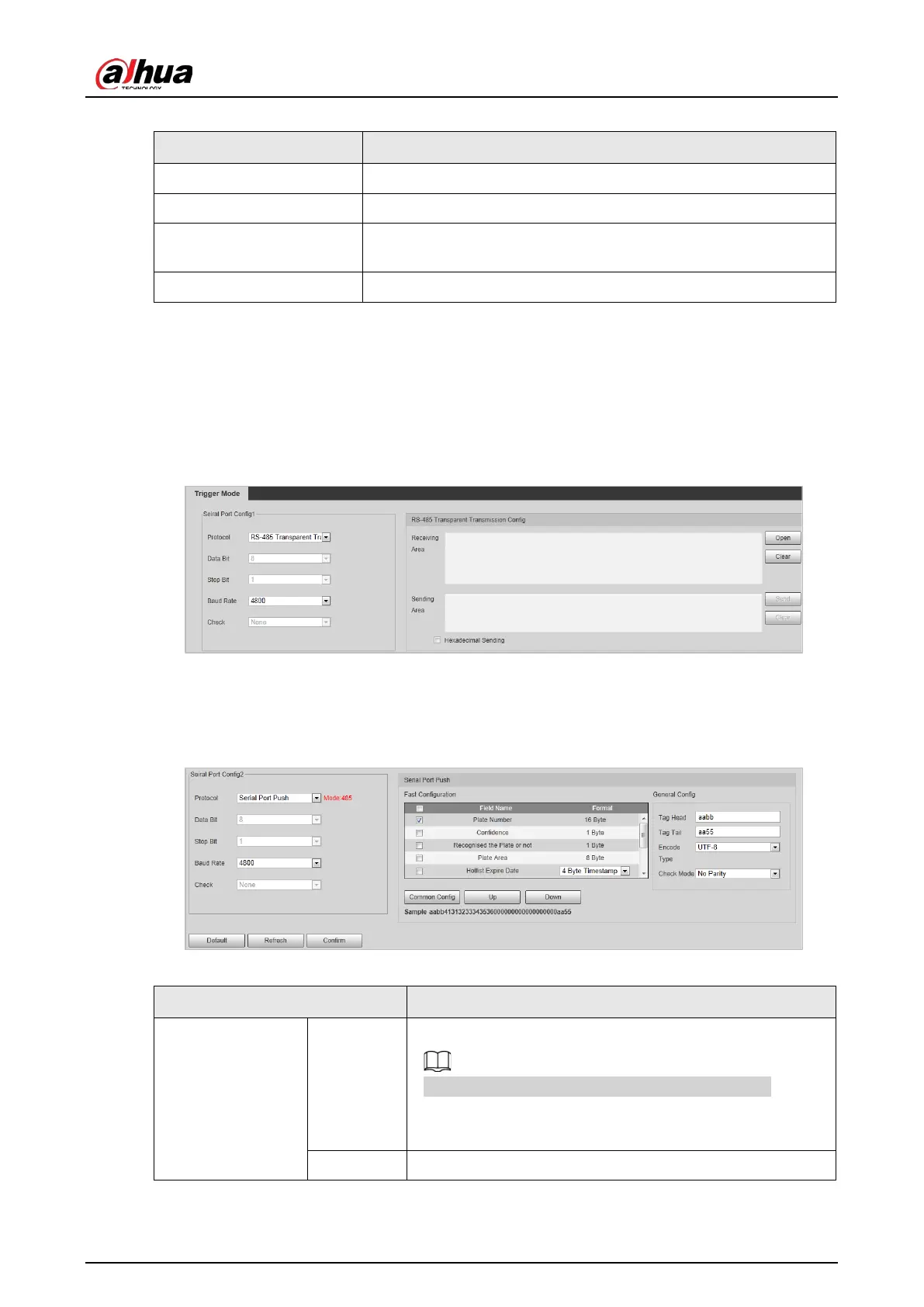

User's Manual
43
Table 4-19 DHRS parameters description
Parameter Description
Data Bit 8 by default, and cannot change.
Stop Bit 1 by default, and cannot change.
Baud Rate
The transmission speed of the code element. Options are 4800,
9600, 19200, 38400, 115200.
Check None by default, and cannot change.
2) RS-485 transparent transmission.
The third party platform can control the RS-485 output of the Camera through RS-485
transparent transmission, and then you can connect external devices.
Trigger capture through transmitting capture command. To test the RS-485 transparent
transmission sending, and receiving conditions, select
Hexadecimal Sending
, and
then click
Open
on the right side of
Receiving Area
.
Figure 4-49 RS-485 transparent transmission
3) Serial port push.
You can configure the serial port push information. The camera pushes the snapshots
to the third serial collection device through RS-485.
Figure 4-50 Serial port push
Table 4-20 Serial port push parameter description
Parameter Description
Quick
configuration
Field Name
Select fields to send to the third serial collection device.
Hover over the fields, you can see the explanations.
Select the check box next to
Field Name
to select all the
fields.
Format Format of the fields.
