SiEN18-622 Field Setting
Test Operation 153

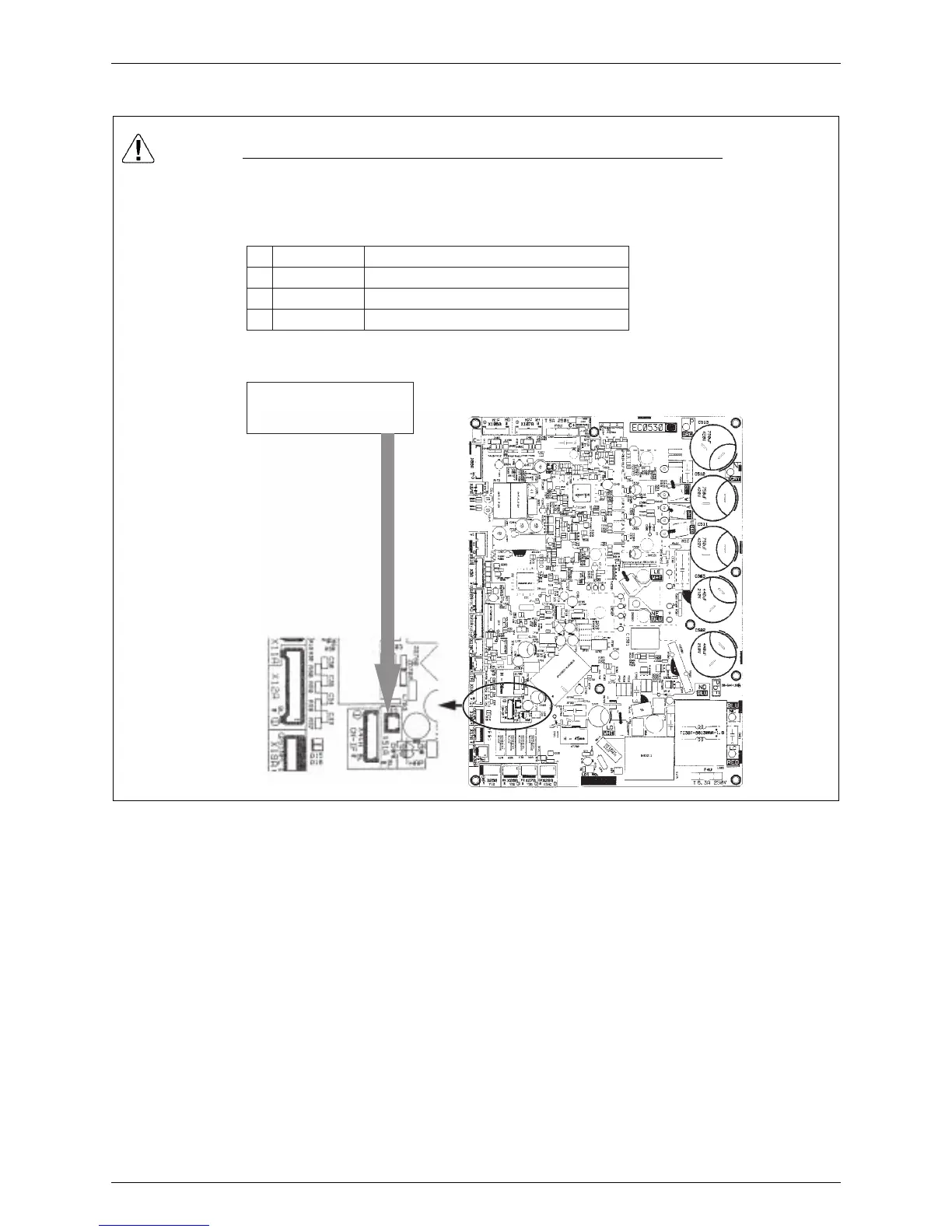

Caution DIP switch Setting after changing the main PCB(A1P) to spare parts PCB
When you change the main PCB(A1P) to spare parts PCB, please carry out the following setting.
Please Attach the Capacity Setting Adapter corresponding to Capacity Class (ex. 112, 140, 160) in connector X51A.
(See Below)
Capacity Setting Adapter
1
2
3
Capacity Class
4 (112)
5 (140)
6 (160)
CAPACITY SETTING ADAPTER (for 100/J112)
CAPACITY SETTING ADAPTER (for 125/J140)
CAPACITY SETTING ADAPTER (for 140/J160)
Position of Attaching the Capacity Setting Adapter
Note
X51A
Position of Attaching the
Capacity Setting Adapter
To Next Page
