Instruction SiEN18-622
196 System Configuration
Outdoor Unit
Indoor Unit

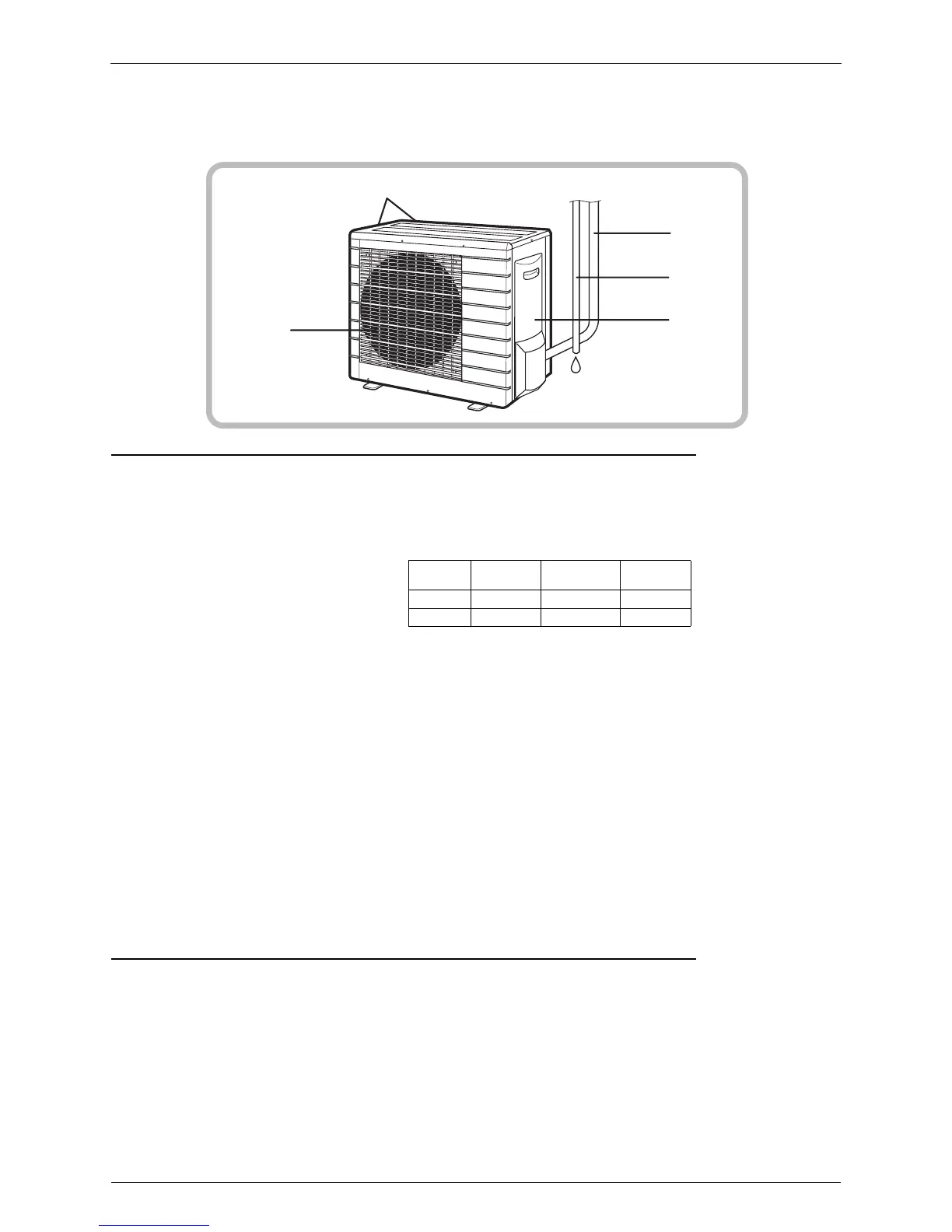

Outdoor Unit
Appearance of the outdoor unit may differ from some models.
1. Air filter
2. Air-Purifying Filter with photocatalytic
deodorizing function:
• These filters are attached to the inside of
the air filters.
3. Air inlet
4. Front grille
5. Grille tab
6. INTELLIGENT EYE sensor:
• It detects the movements of people and
automatically switches between normal
operation and energy saving operation.
7. Display
8. Air outlet
9. Flap (horizontal blade)
10.Louvers (vertical blades):
• The louvers are inside of the air outlet.
11.Operation lamp (green)
12.TIMER lamp (yellow)
13.HOME LEAVE lamp (red):
• Lights up when you use HOME LEAVE
Operation.
14.Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• The operation mode refers to the following
table:
• This switch is useful when the remote
control is missing.
15. Packaging materials:
50 class only
• If any packaging materials are included,
please remove before operating.
16. Room temperature sensor:
• It senses the air temperature around the
unit.
17. Signal receiver:
• It receives signals from the remote control.
• When the unit receives a signal, you will
hear a short beep.
• Operation start .............beep-beep
• Settings changed..........beep
• Operation stop..............beeeeep
18. Air inlet:
(Back and side)
19. Air outlet
20. Refrigerant piping and inter-unit cable
21. Drain hose
22. Earth terminal:
• It is inside of this cover.
20
21
22
19
18
Mode
Temperature
setting
Air flow
rate
FTKS COOL 22°C AUTO
FTXS AUTO 25°C AUTO
