SiEN18-622 Instruction
System Configuration 199
Outdoor Unit
Indoor Unit

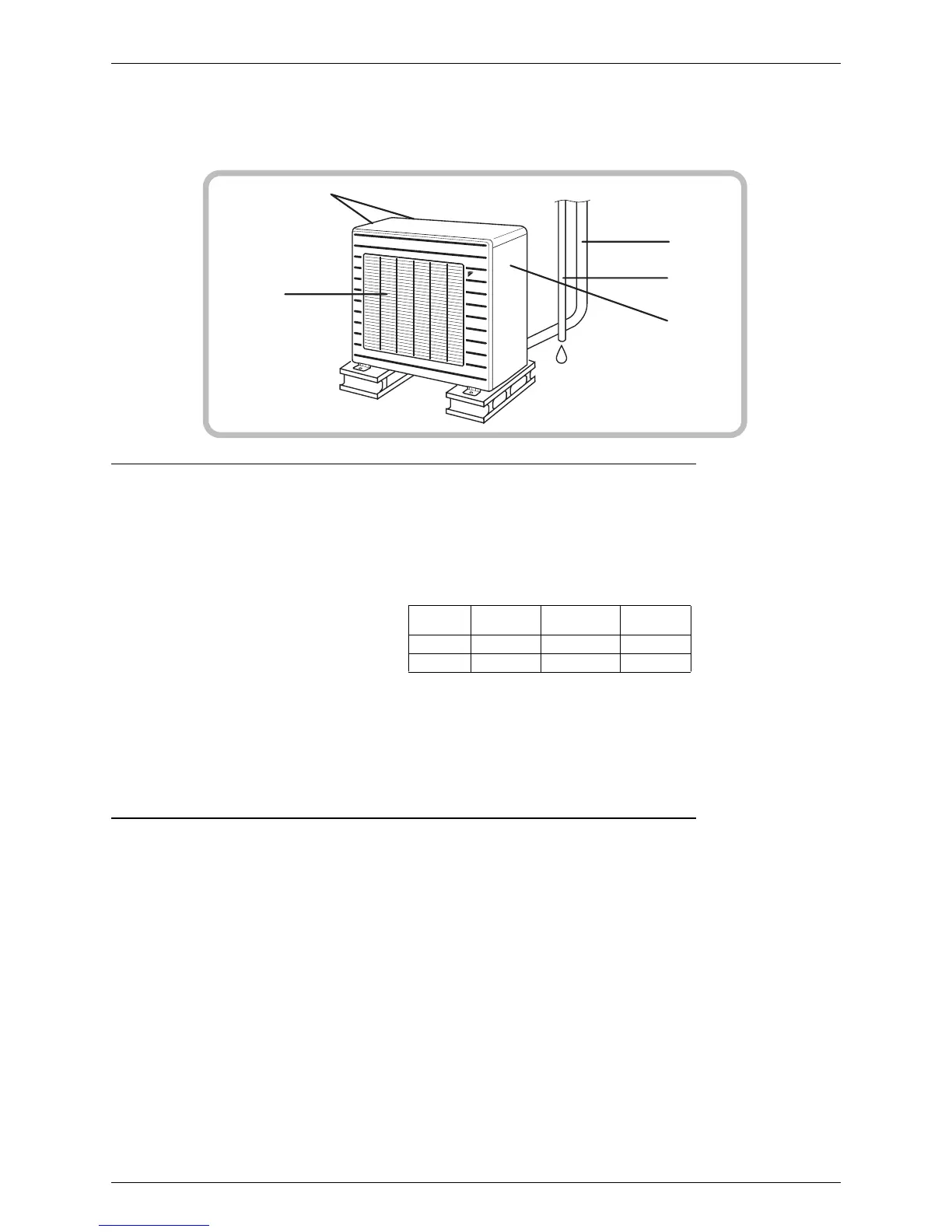

Outdoor Unit
Appearance of the outdoor unit may differ from some models.
1. Air outlet
2. Air outlet grille:
(Field supply)
• Appearance of the Air outlet grille and Air
inlet grille may differ with some models
3. Display, Control panel
4. Suction grille:
(option)
• Appearance of the suction grille and Air
inlet grille may differ with some models.
5. Air inlet
6. Room temperature sensor:
• It senses the air temperature around the
unit.
7. Operation lamp (green)
8. TIMER lamp (yellow)
9. HOME LEAVE lamp (red):
• Lights up when you use HOME LEAVE
operation.
10.Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• This switch is useful when the remote
control is missing.
•
The operation mode refers to the following
table
.
11. Air inlet:
(Back and side)
12. Refrigerant piping and inter-unit cable
13. Drain hose
14. Earth terminal:
• It is inside of this cover.
15. Air outlet
15
11
12
13
14
Mode
Temperature
setting
Air flow
rate
CDKS COOL 22°C AUTO
CDXS AUTO 25°C AUTO
To Next Page
