1.1.2 Service PCB (A2P)
Connectors 1) X205A Connector for Main PCB (A1P)
Note: Other Designation
1) H1P to H8P Service Monitor LED
2) BS1 to BS5 Push Button Switch (Mode, Set, Return, Test, Reset)
3) DS1 DIP Switch

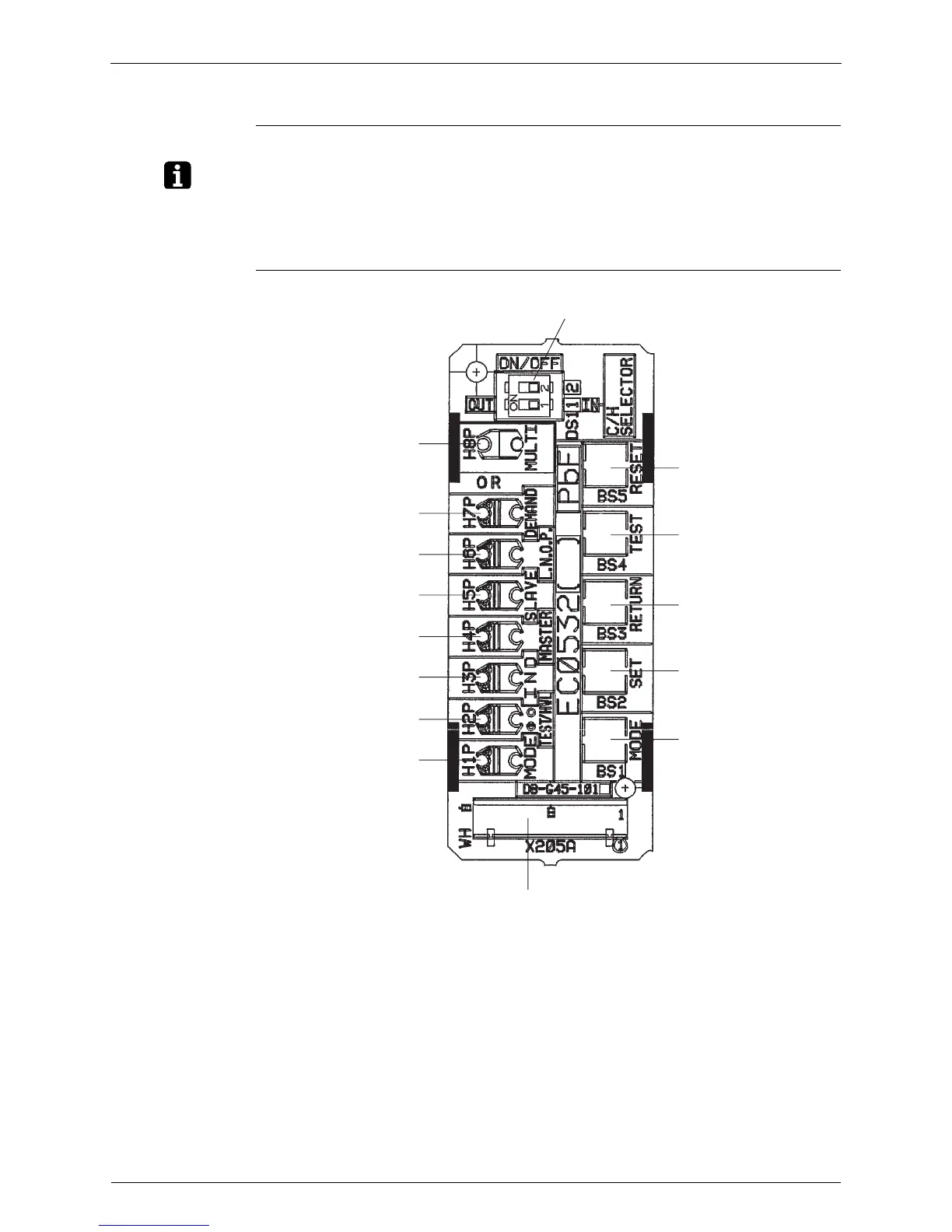

PCB Detail
DS1
H8P
BS5
H7P
H6P
H5P
H4P
H3P
H2P
H1P
X205A
BS4
BS3
BS2
BS1
2P174185
