SiEN18-622 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram and Name 57
1.1.3 Noise Filter PCB (A3P)
Connectors 1) LA, NA Terminal for X1M (Power Supply)
2) LB, NB Terminal for Main PCB (A1P)
3) E Terminal for Earth
Note: Other Designation
1) F1U Fuse (250V 6.3A)

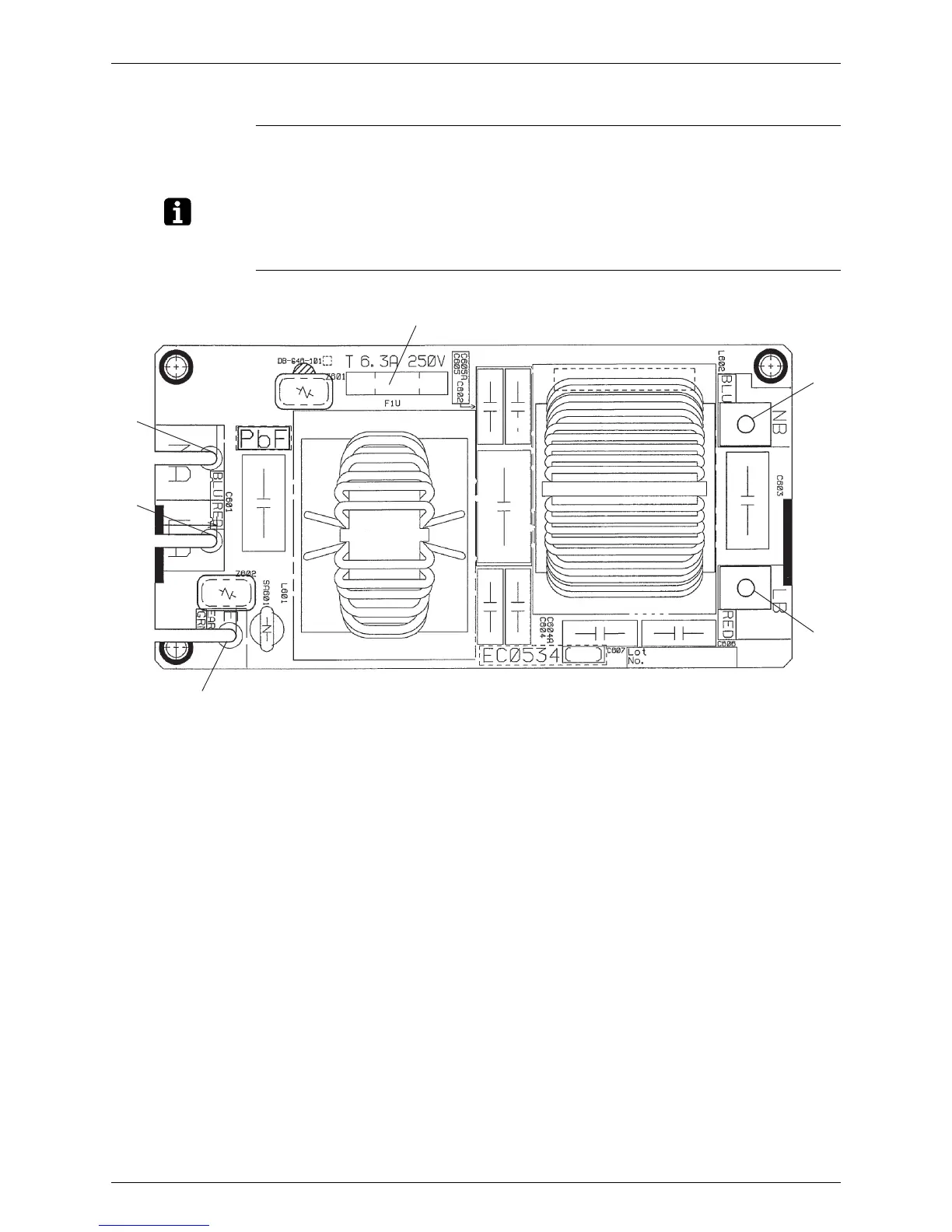

PCB Detail
NB
F1U
NA
LA
E
LB
2P174186
