Printed Circuit Board Connector Wiring Diagram SiEN18-622
58 Printed Circuit Board Connector Wiring Diagram and Name
1.1.4 Cool / Heat Selector PCB (A4P)
Connectors 1) X1A Connector for Main PCB (A1P)
Note: Other Designation
1) X1M Cool / Heat Selector

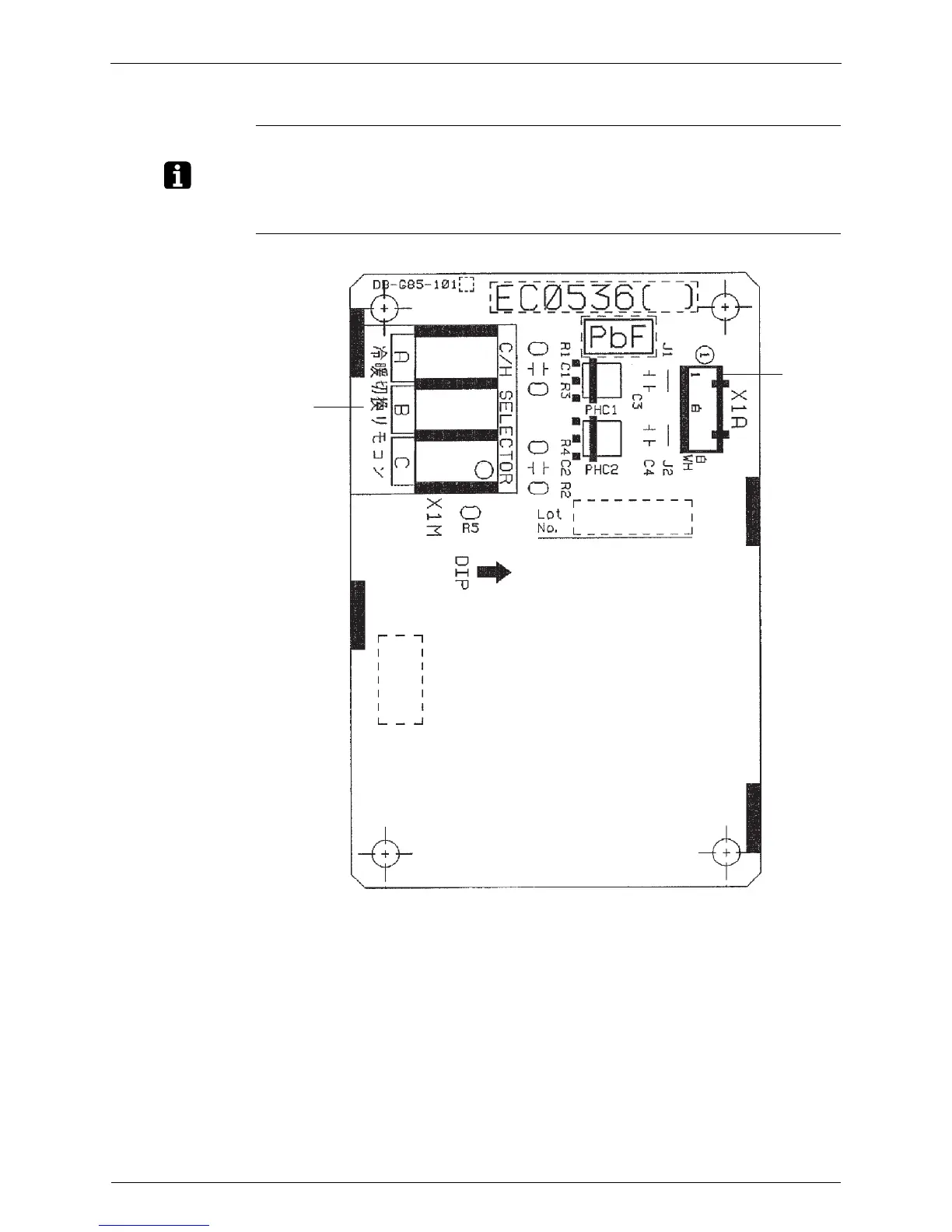

PCB Detail
X1M
X1A
2P174187
