3 iC2-Micro Frequency Converters
3.1 Intended Use
The drive is an electronic motor controller intended for:
l Regulation of motor speed in response to system feedback or to remote commands from external controllers. A power drive system
consists of the drive and the motor.
l System and motor status surveillance.
The drive can also be used for motor overload protection.
Depending on the configuration, the drive can be used in standalone applications or form part of a larger appliance or installation.
The drive is allowed for use in residential, industrial, and commercial environments in accordance with local laws and standards.
NOTICE
In a residential environment, this product can cause radio interference, in which case supplementary mitigation measures can be
required.
Foreseeable misuse
Do not use the drive in applications which are non-compliant with specified operating conditions and environments. Ensure compliance
with the conditions specified in chapter Specifications.

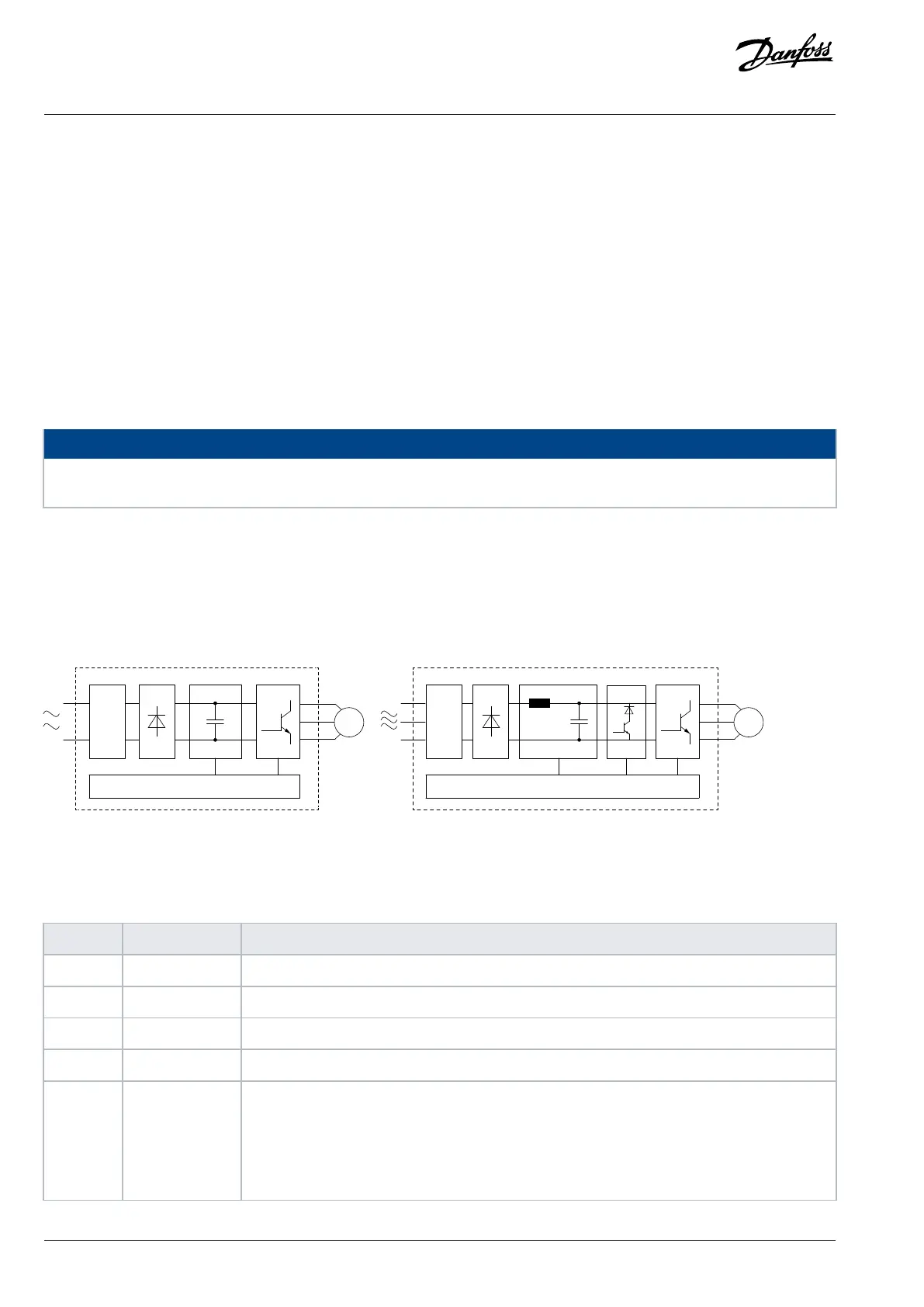

3.2 Block Diagram
10
3x200–240 V AC / 3x380–480 V AC
1x100–120 V AC / 1x200–240 V AC
Figure 1: Block Diagram of iC2-Micro Frequency Converters
Table 5: Functions of Each Component
Area Component Functions
1 Mains input AC mains supply to the drive.
2 RFI filter RFI filter is used to meet the regulatory requirements of electromagnetic compatibility.
3 Rectifier The rectifier bridge converts the AC input to DC current to supply inverter power.
4 DC bus Intermediate DC bus circuit handles the DC current.
5 DC reactor
(1)
• Filters the DC-link current.
• Provides mains transient protection.
• Reduces the root mean square (RMS) current.
• Raises the power factor reflected back to the line.
• Reduces harmonics on the AC input.
16 | Danfoss A/S © 2024.08 AJ402315027937en-000401 / 130R1239
Design Guide | iC2-Micro Frequency Converters iC2-Micro Frequency Converters
