Design Guide | iC2-Micro Frequency Converters Mechanical Installation Considerations
5 Enclosure: States the protection rating of the drive both as an Ingress Protection rating and a UL compliant rating.
6 Ambient temperature: States the ambient temperature range without derating needed.
7 Efficiency class: Efficiency class according to ErP directive. The value given for 90% frequency/100% current working point.
8 Company name, address, and website.
9 Warnings and compliance information.
10 2D code: The 2D code contains information on the drive, and can be scanned by smart device. The code contains:
• P/N: Code number.
• S/N: Serial number.
6.2.3 Package Labels
The package label is placed on the drive packaging and contains information about the drive.
e30bv085.11
1
2
6
9
10
5
Freq
u
e
n
cy C
o
nve
rter
iC
2
-
M
icr
o
M
/
C: I
C
2
-30
F
A3
N
0
4-03A7E20F2+ACXX
P
O
W
E
R
:
1.
5
kW / 2.0HP
I
N
:
3
X
3
8
0-
480
V
50/60Hz 5.9/5.1A
O
U
T
:
3
x
0-Vin 0
-5
00Hz 3.7/3.4A
E
N
CL:
I
P20 / Open Type
132
L6
13
0
1234
01A112
D
anf
o
s
s
A/
S
,
6
4
3
0 No
rdborg, DK
D
anf
o
s
s
Ltd.
,
22
Wy
c
o
mbe End, HP9 1NB, GB
ww
w.d
a
n
f
o
ss.c
om
M
A
DE
I
N
C
HI
NA
P/N
:
13
2L61
30
S
/
N
:
12
3401
A
1
12
3
4
7
8

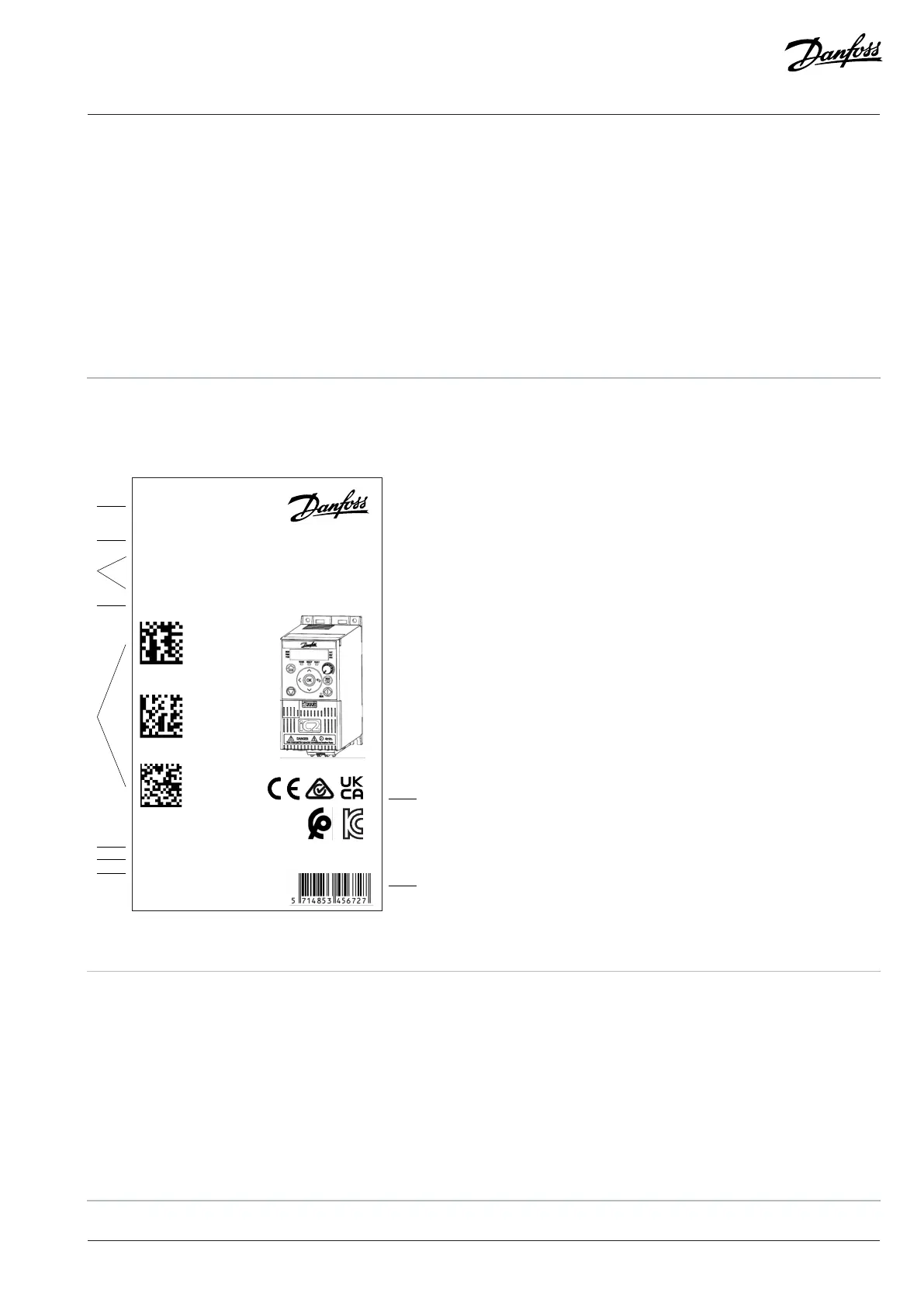

Figure 31: Example of a Package Label
1 Product name
2 Model code: M/C includes 27 characters of the model code.
3 Power rating:
• The 1st line lists the typical motor power rating at the referenced voltages.
• The 2nd line lists input ratings (voltage range, frequency, and input current at given input voltages).
• The 3rd line lists output ratings (voltage range, frequency, and rated output currents at the given input voltage).
4 Enclosure: States the protection rating of the drive both as an Ingress Protection rating and a UL compliant rating.
5 2D code with information about the order.
Danfoss A/S © 2024.08 AJ402315027937en-000401 / 130R1239 | 61
