Danfoss iC2-Micro Series - Cable Shield Connection

e30bv098.10
(1) (2)
A
A
A
A

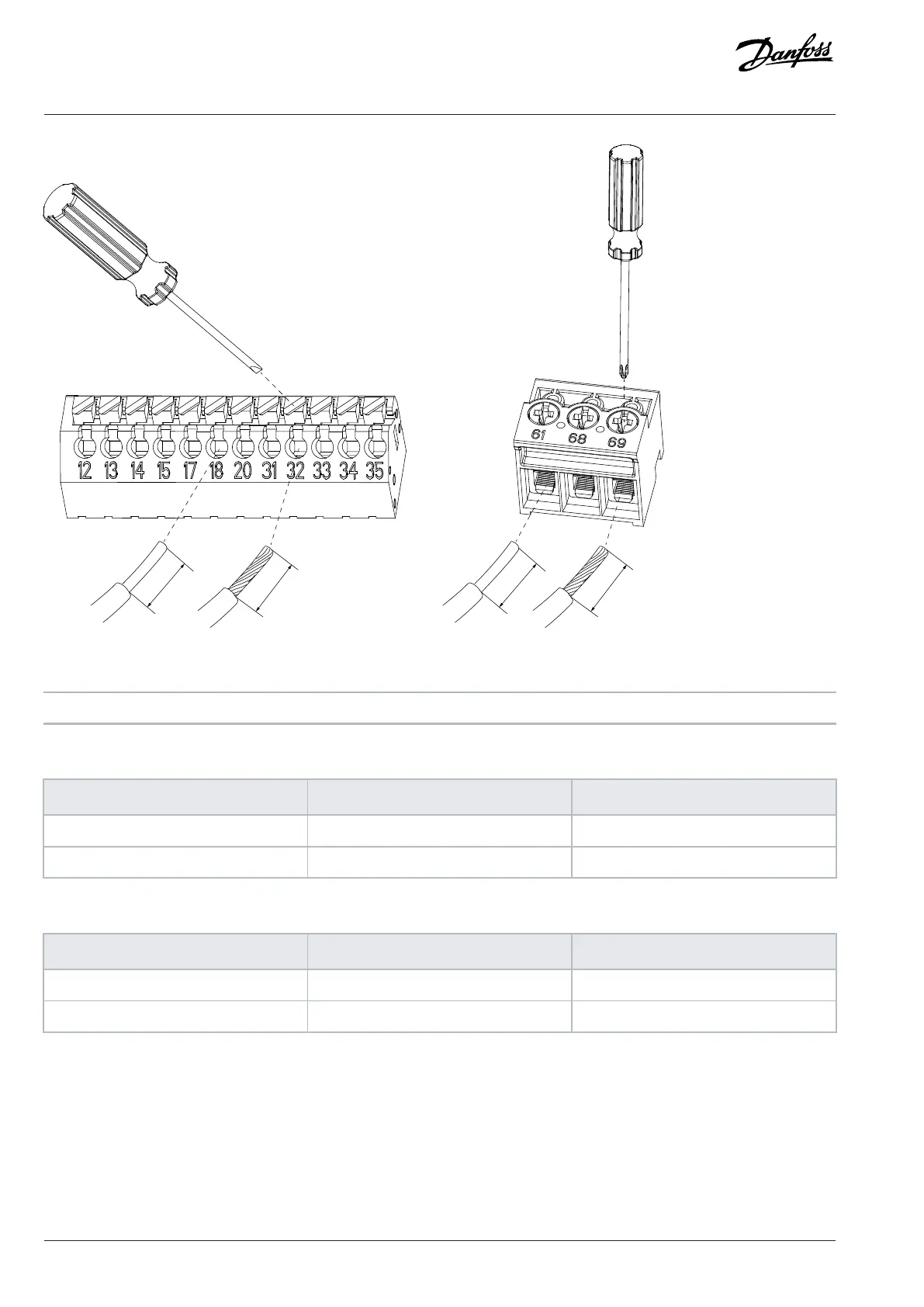

Figure 50: Inserting Wires into the Connector
1 I/O terminal 2 RS485 terminal
Table 56: Cable Sizing for I/O Terminal
Wire type
Cross-section [mm
2
(AWG)]
Stripping length A [mm (in)]
Solid 0.2–1.5 (24–16) 8.5–9.5 (0.33–0.37)
Flexible with ferrule 0.2–1.5 (24–16) 8.5–9.5 (0.33–0.37)
Table 57: Cable Sizing for RS485 Terminal
Wire type
Cross-section [mm
2
(AWG)]
Stripping length A [mm (in)]
Solid 0.25–1.5 (24–16) 5–6 (0.20–0.24)
Flexible with ferrule 0.25–1.5 (24–16) 5–6 (0.20–0.24)
7.10.6 Cable Shield Connection
The cable shield must be completely in contact with the EMC clamp on the EMC plate. Cable isolation must be removed and the cable
shield exposed for the entire surface. Avoid pigtails.
