5.2 IP21/UL Type 1 Enclosure Sizes and Dimensions
e30bv104.10
C1
A2
B1

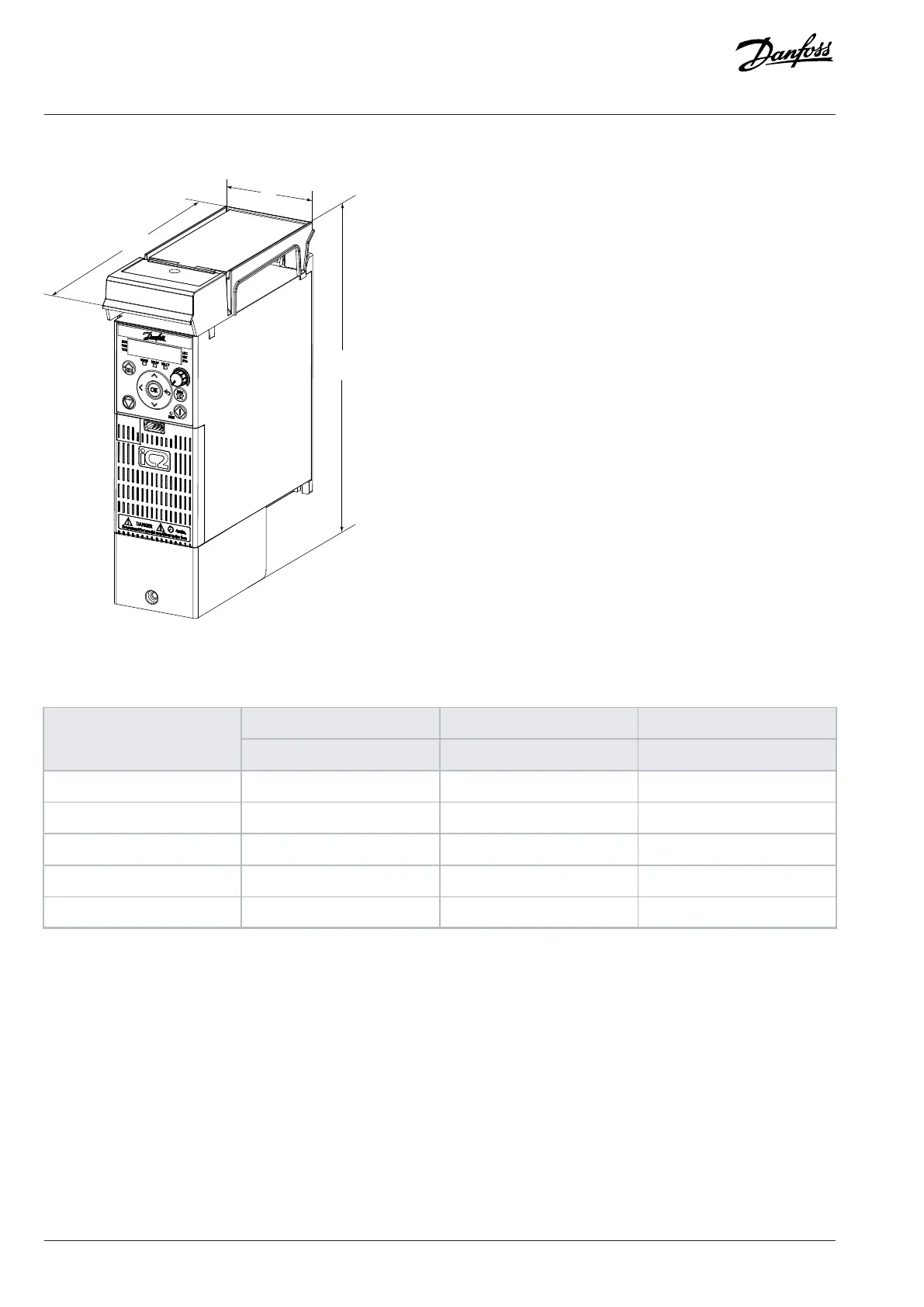

Figure 28: IP21/UL Type 1 Enclosure Sizes and Dimensions
Table 41: IP21/UL Type 1 Enclosure Sizes and Dimensions
Height [mm (in)] Top cover width [mm (in)] Depth [mm (in)]Enclosure
A2 B1 C1
MA01c 242.2 (9.5) 81.5 (3.2) 153.5 (6.0)
MA02c 257 (10.1) 92.4 (3.6) 165 (6.5)
MA01a 220.2 (8.7) 73.2 (2.9) 166.5 (6.6)
MA02a 255 (10.0) 78 (3.0) 184 (7.2)
MA03a 298 (11.7) 98 (3.9) 210 (8.3)
