Danfoss iC2-Micro Series - NEMA 1 Enclosure Sizes and Dimensions

Design Guide | iC2-Micro Frequency Converters Exterior Dimensions
5.3 NEMA 1 Enclosure Sizes and Dimensions
e30bv105.10
C
A3
B

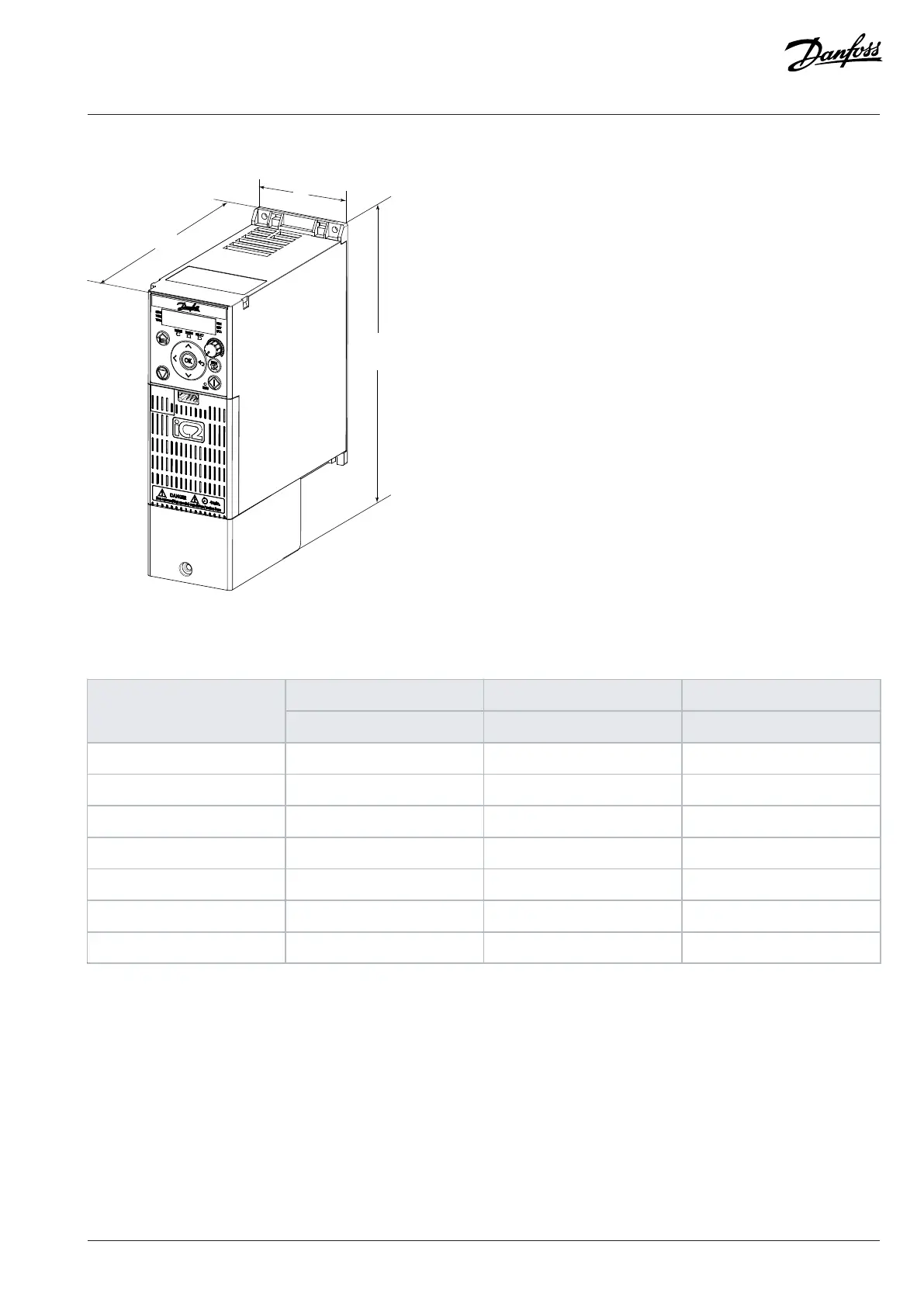

Figure 29: NEMA 1 Enclosure Sizes and Dimensions
Table 42: NEMA 1 Enclosure Sizes and Dimensions
Height [mm (in)] Width [mm (in)] Depth [mm (in)]
(1)
Enclosure
A3 B C
MA01c 206.2 (8.1) 70 (2.8) 143 (5.6)
MA02c 221 (8.7) 75 (3.0) 157 (6.2)
MA01a 195 (7.7) 70 (2.8) 158 (6.2)
MA02a 231 (9.1) 75 (3.0) 175 (6.9)
MA03a 283 (11.1) 90 (3.5) 200 (7.9)
MA04a 352.5 (13.9) 125 (4.9) 244.5 (9.6)
MA05a 392 (15.4) 165 (6.5) 248 (9.8)
1) The potentiometer on the local control panel extends 6.5mm (0.26in) from the drive.
Danfoss A/S © 2024.08 AJ402315027937en-000401 / 130R1239 | 59
