Design Guide | iC2-Micro Frequency Converters Exterior Dimensions
5 Exterior Dimensions
5.1 IP20/Open Type Enclosure Sizes and Dimensions
e30bv103.10
C
B
b
a
A
Ø D
A1

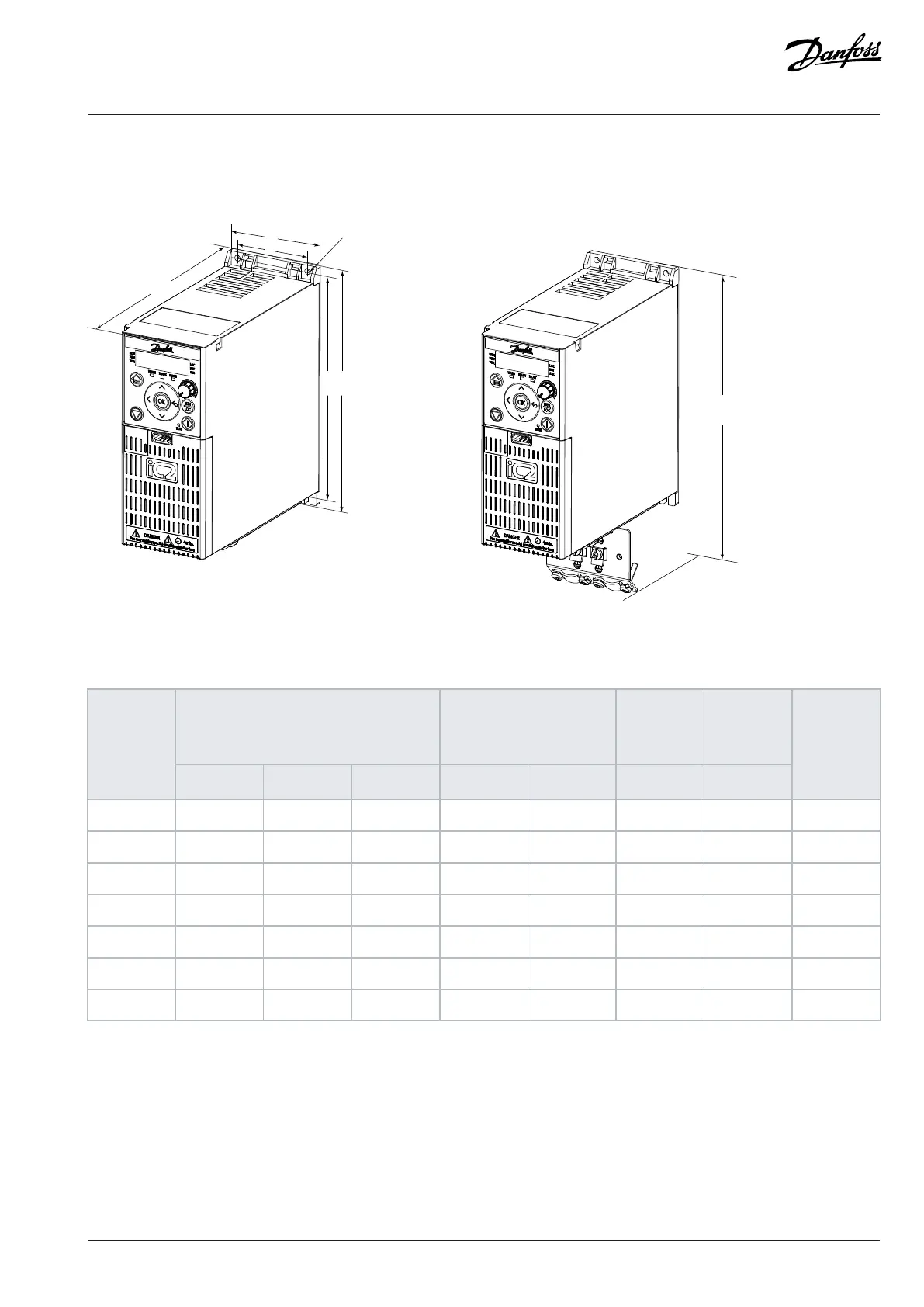

Figure 27: IP20/Open Type Enclosure Sizes and Dimensions
Table 40: IP20/Open Type Enclosure Sizes and Dimensions
Height [mm (in)] Width [mm (in)] Depth [mm
(in)]
(1)
Mounting
holes [mm
(in)]
Enclosure
A
A1
(3)
a B b C D
Maximum
weight [kg
(lb)]
(2)
MA01c 150 (5.9) 216 (8.5) 140.4 (5.5) 70 (2.8) 55 (2.2) 143 (5.6) 4.5 (0.18) 1.0 (2.4)
MA02c 176 (6.9) 232.2 (9.1) 150.5 (5.9) 75 (3.0) 59 (2.3) 157 (6.2) 4.5 (0.18) 1.3 (2.9)
MA01a 150 (5.9) 202.5 (8.0) 140.4 (5.5) 70 (2.8) 55 (2.2) 158 (6.2) 4.5 (0.18) 1.1 (2.4)
MA02a 186 (7.3) 240 (9.4) 176.4 (6.9) 75 (3.0) 59 (2.3) 175 (6.9) 4.5 (0.18) 1.6 (3.5)
MA03a 238.5 (9.4) 291 (11.5) 226 (8.9) 90 (3.5) 69 (2.7) 200 (7.9) 5.5 (0.22) 3.0 (6.6)
MA04a 292 (11.5) 365.5 (14.4) 272.4 (10.7) 125 (4.9) 97 (3.8) 244.5 (9.6) 7.0 (0.28) 6.0 (13.2)
MA05a 335 (13.2) 396.5 (15.6) 315 (12.4) 165 (6.5) 140 (5.5) 248 (9.8) 7.0 (0.28) 9.5 (20.9)
1) The potentiometer on the local control panel extends 6.5mm (0.26in) from the drive.
2) Not including decoupling plate.
3) Including decoupling plate.
