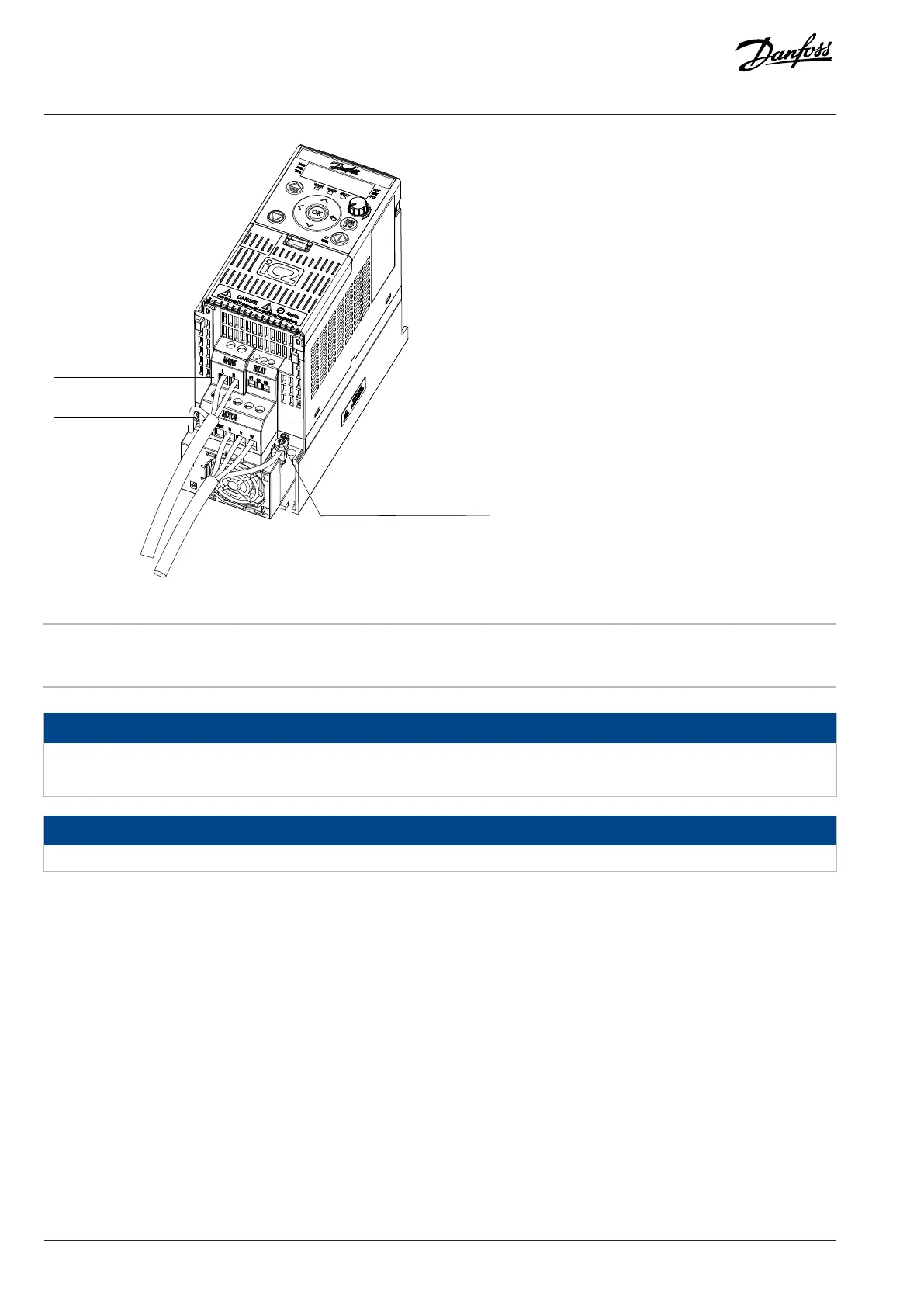

Figure 46: Mains, Motor, and Grounding Connection for Single-phase Units (Taking MA02c as an Example)
1 Mains 2 Grounding point A
3 Motor 4 Grounding point B
 NOTICE
For MA01c and MA02c drives, grounding point A supports 10mm
2
(7AWG) cable via a cable shoe, the recommended cable shoe
type is JST copper tubular lug TUB-4.
 NOTICE
For MA01c and MA02c drives, decoupling plates are needed if 3 grounding terminals are used.
