Design Guide | iC2-Micro Frequency Converters Electrical Installation Considerations
1 Connector 2 Wiring the connector
3 Wiring completed
e30bv090.10

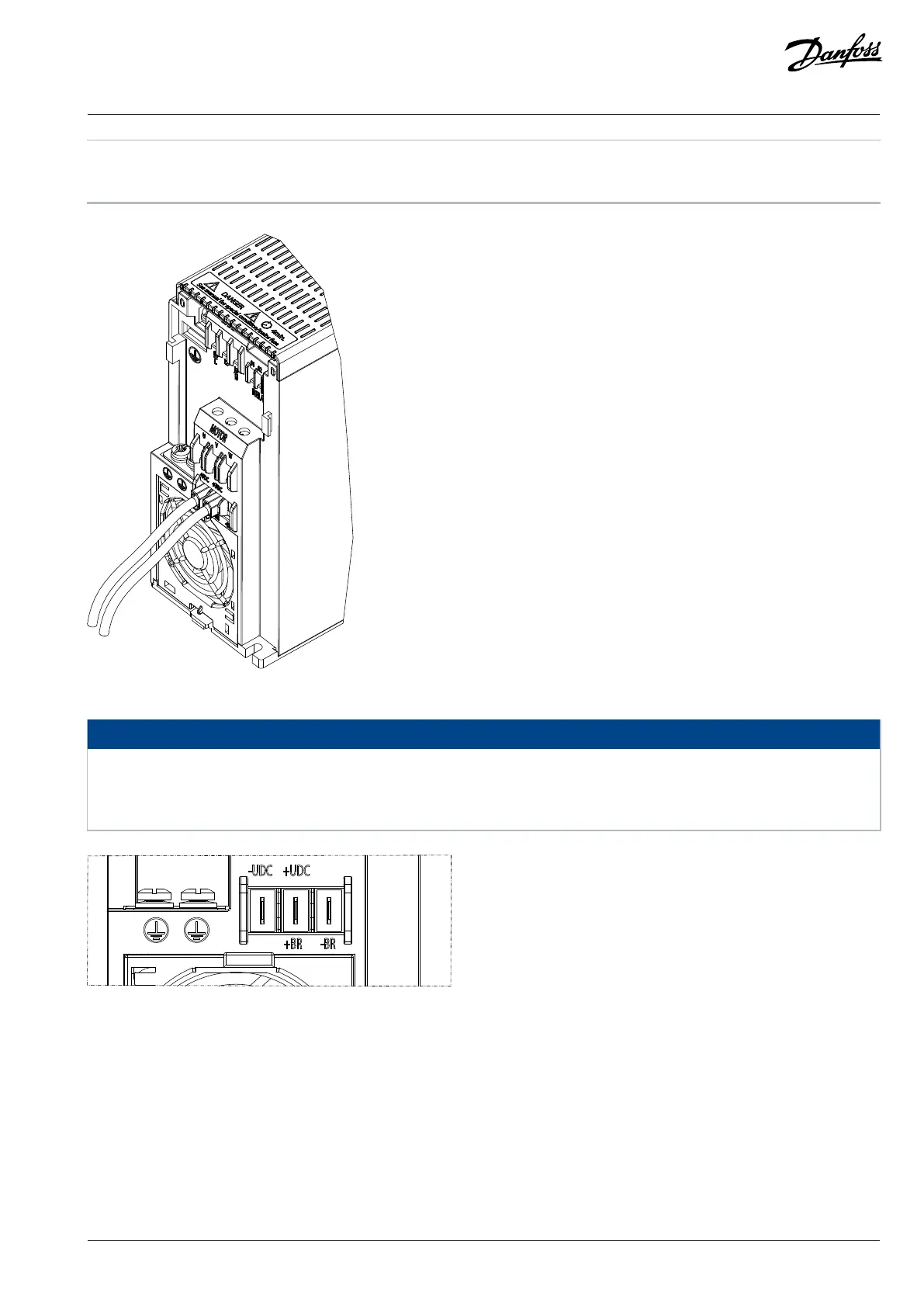

Figure 57: Connecting to Load Sharing and Brake
 NOTICE
BRAKE FUNCTION OF MA02A
For MA02a, only 3x200–240 V and 3x380–480 V drives have brake function.
l Do not connect the brake cable to MA02a 1x200–240 V drives.
e30bv102.10
Figure 58: Brake Function of MA02a (3x380-480 V)
