Datalogic PowerScan RF Programming Guide

Name: Datalogic PowerScan RF
Brand: Datalogic
Rating: 4 (1 reviews)

220 pages

To Next Page

To Previous Page

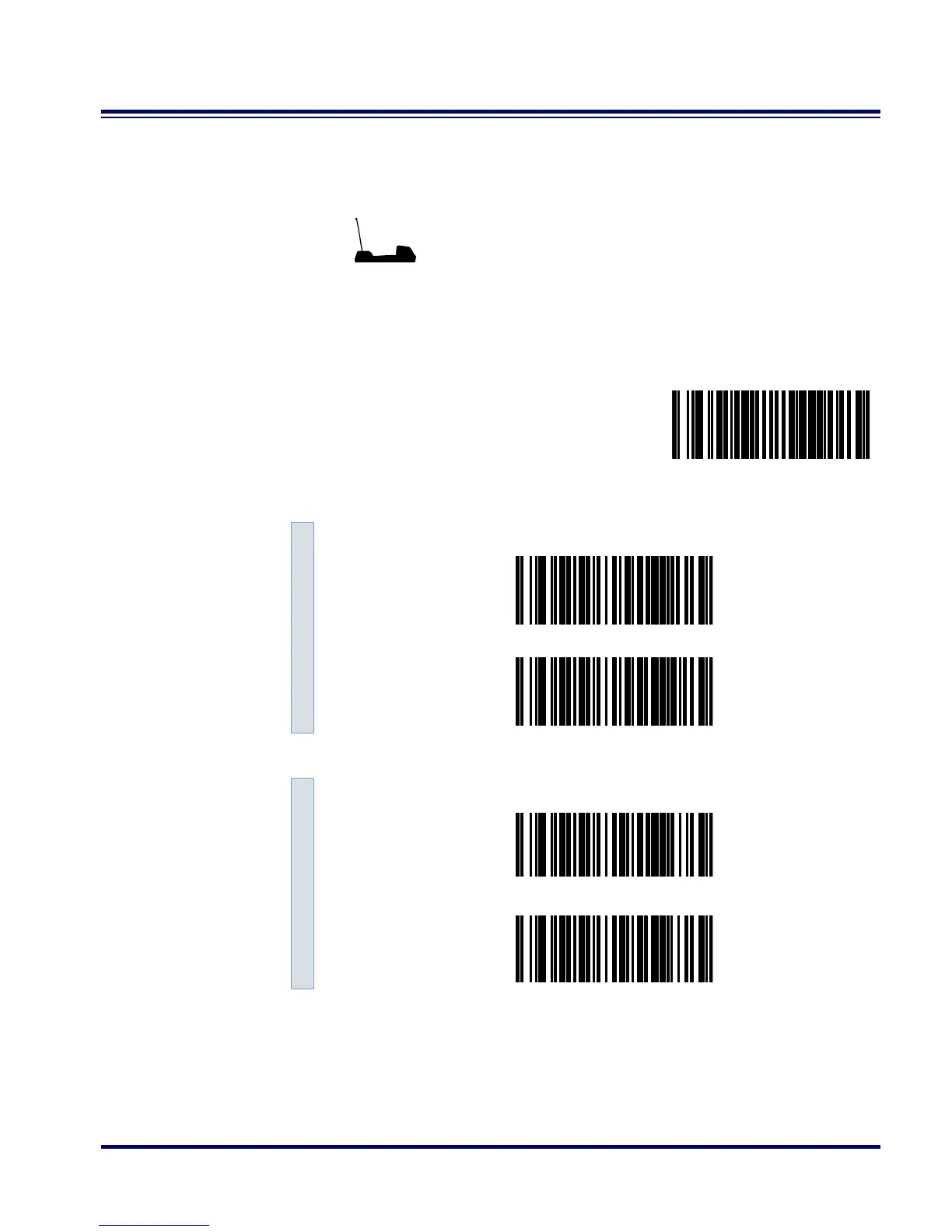

RF Programming Manual 21

Wand Emulation Settings

Use these programming bar codes to configure the settings for the

Wand Emulation Interface.

Feature is specific to Base Station ONLY

SET -------------------------------

Polarity

Space Low, Bar

High ---------

Space High,

Bar Low ---------

Signal Speed

Low (660 µs) ---------

High (330 µs) ---------
