RF Programming Manual 91

QuadraLogic

™ II

Decoding

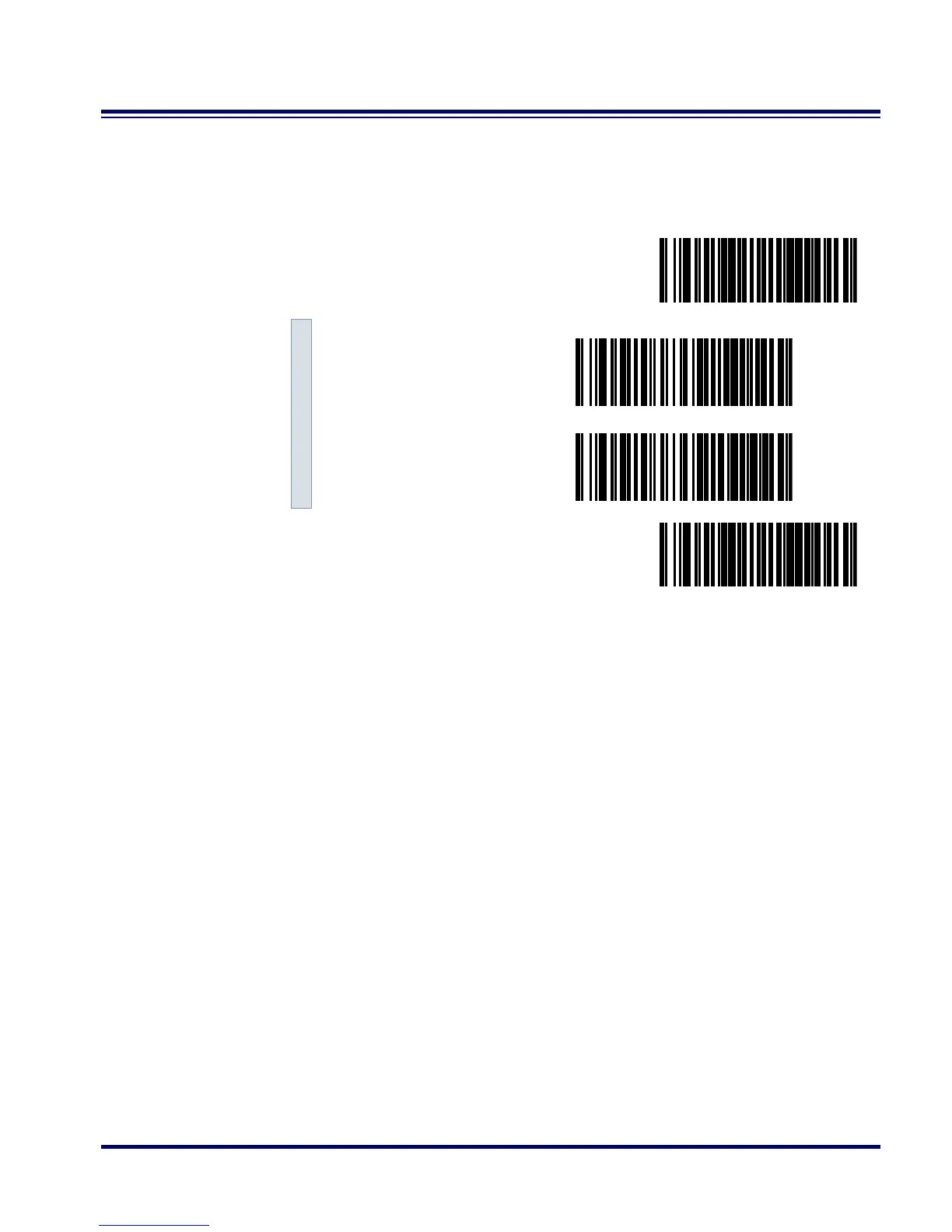

Scan these bar codes to activate/deactivate the QuadraLogic™ II

Decoding feature for the Code 128 and UCC/EAN 128 symbologies.

SET ------------------------------------------

Activate for C128 and

UCC/EAN 128 ---------

Deactivate for C128 and

UCC/EAN 128 ---------

END ------------------------------------------
