Datamax E-Class Mark II Programmer's Manual

Appendix B – Sample Programs
Class Series 2 Programmer’s Manual 175
End Sub
Private Sub open_Click()
CommonDialog1.ShowOpen
loadfile = CommonDialog1.FileName
txtFile.Text = loadfile
End Sub
Private Sub Printer_Click()
CommonDialog1.ShowPrinter
End Sub

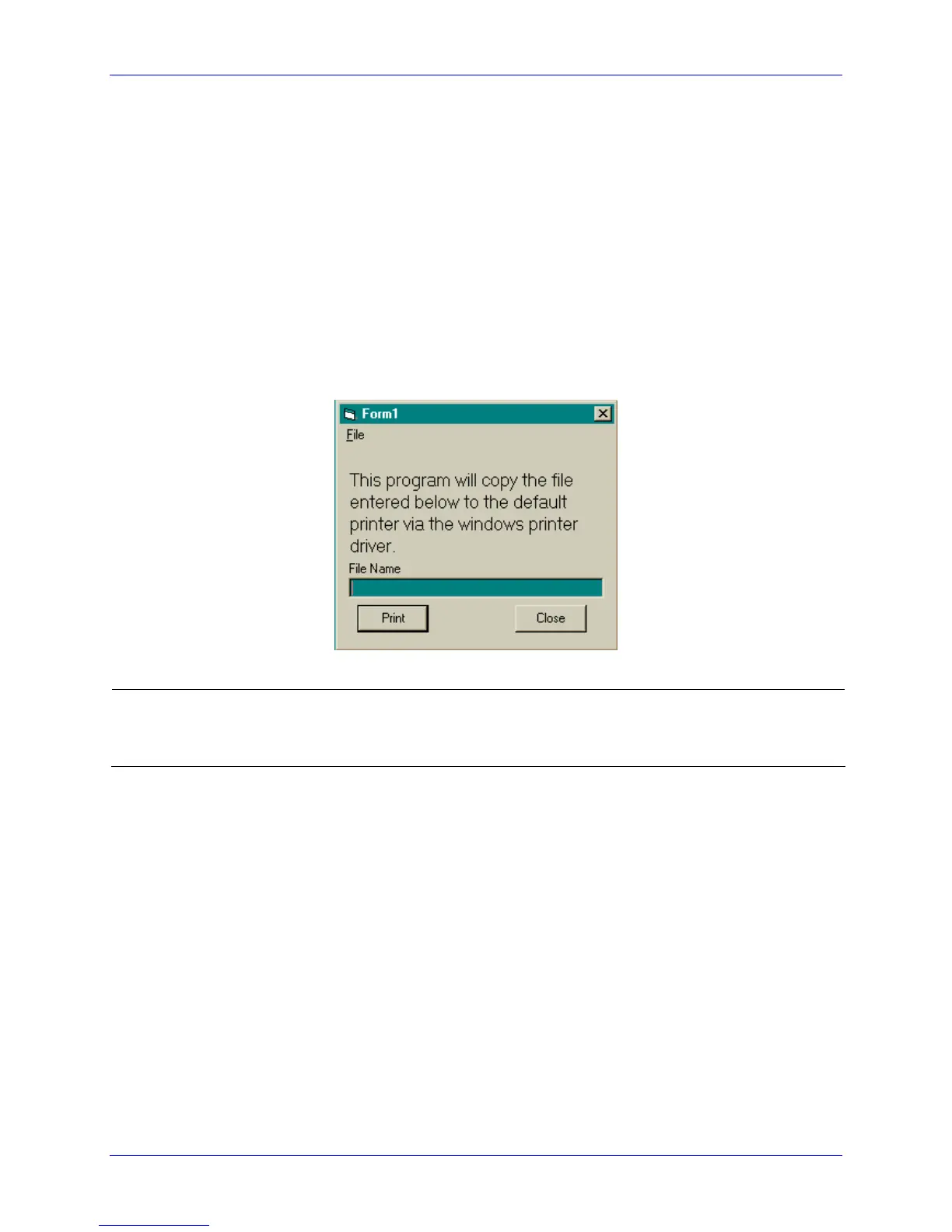

This will create the form pictured below:

It may be necessary to remove and reinsert the common dialog control due to Windows
®
registry issues.

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
