Class Series 2 Programmer’s Manual 255
Appendix J
General Purpose Input Output (GPIO) Port Applications
GPIO-equipped printers can interface with most external controlling devices. Operational
preferences can be stored for subsequent power-ups using the printer menu, or via <STX>Kc
commands. Functions and connections vary, as discussed below.

When a label is ready to print but awaiting a Start of Print signal, the prompt differs
slightly depending upon equipment:
• Non-Display Models – The STOP LED will flash.
• Display-Equipped Models – The display will indicate WAITING FOR SIGNAL.
Always wear a wrist strap and follow ESD prevention measures when handling the GPIO
or Applicator Interface Card. For specification information, reference the printer’s
Maintenance Manual.
Applicator Interface Card (Type 1)
The Applicator Interface Card (Type 1) is equipped with a GPIO Port, an Auxiliary (Serial B)
Port and two LEDs as detailed below.
9
5
4
3
2
1
8
7
6
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Auxiliary Port, J1
Green and Yellow LEDs
GPIO Port, J2
Applicator Interface Card
Connector
Pin-Outs

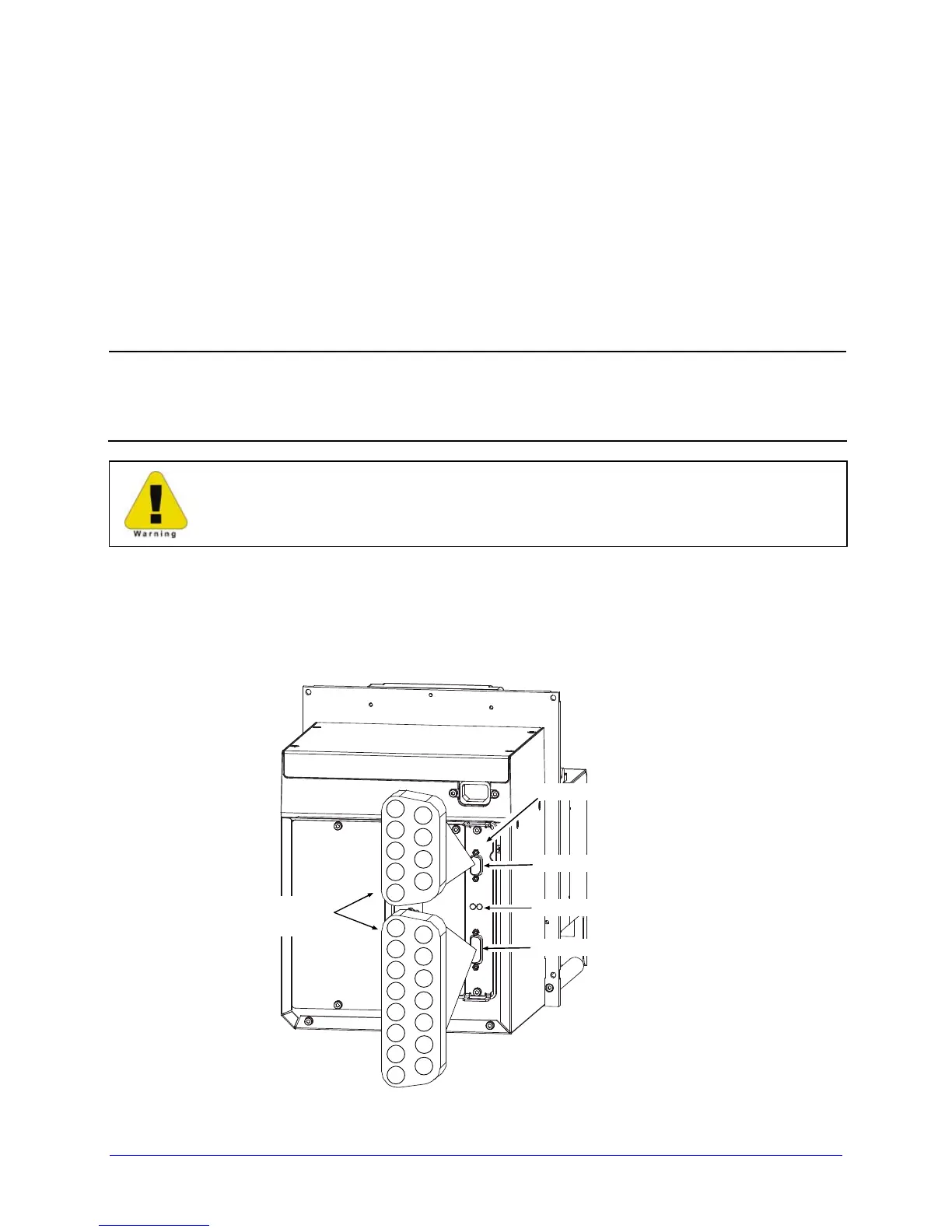

Applicator Interface Card (Type 1) Location and Connector Pin Outs

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
