Datamax E-Class Mark II Programmer's Manual

Appendix J – General Purpose Input Output Port Applications
256 Class Series 2 Programmer’s Manual

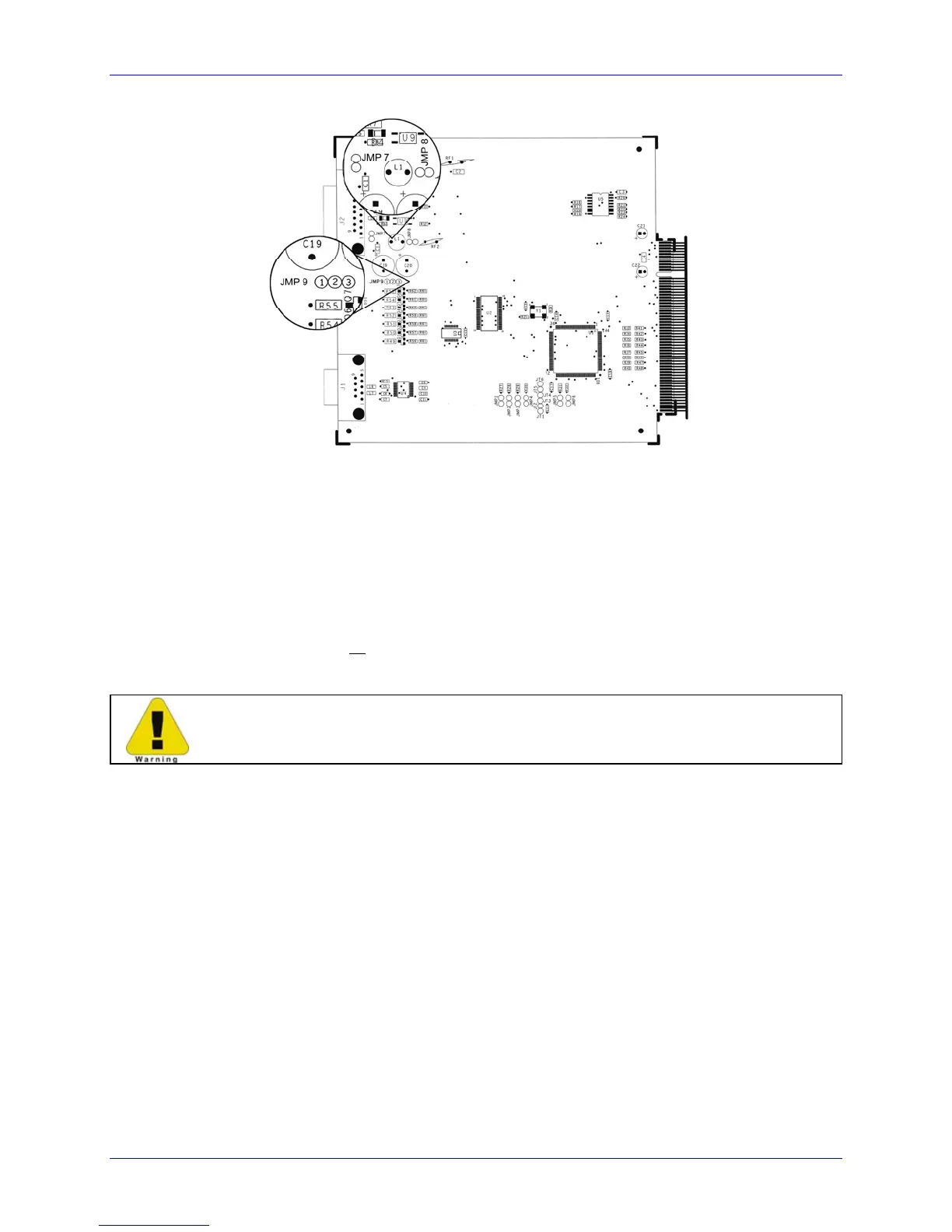

Applicator Interface Card (Type 1) Jumper Locations
The GPIO Port allows printer integration. Functions can be configured using the menu
system or via <STX>Kc commands. All configuration settings are saved in non-volatile
memory. Jumper settings are critical:
• Jumper settings allow internal or external power distribution to the applicator circuitry.
• Jumper settings allow + 5 or +24 VDC output signal levels.
Failure to configure the card for the device(s) you are connecting may result in damage
to the printer and/or the applicator.
The table below details the GPIO Port functions, and configurable settings:

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
