Datamax E-Class Mark II Programmer's Manual

Class Series 2 Programmer’s Manual 309
Appendix U

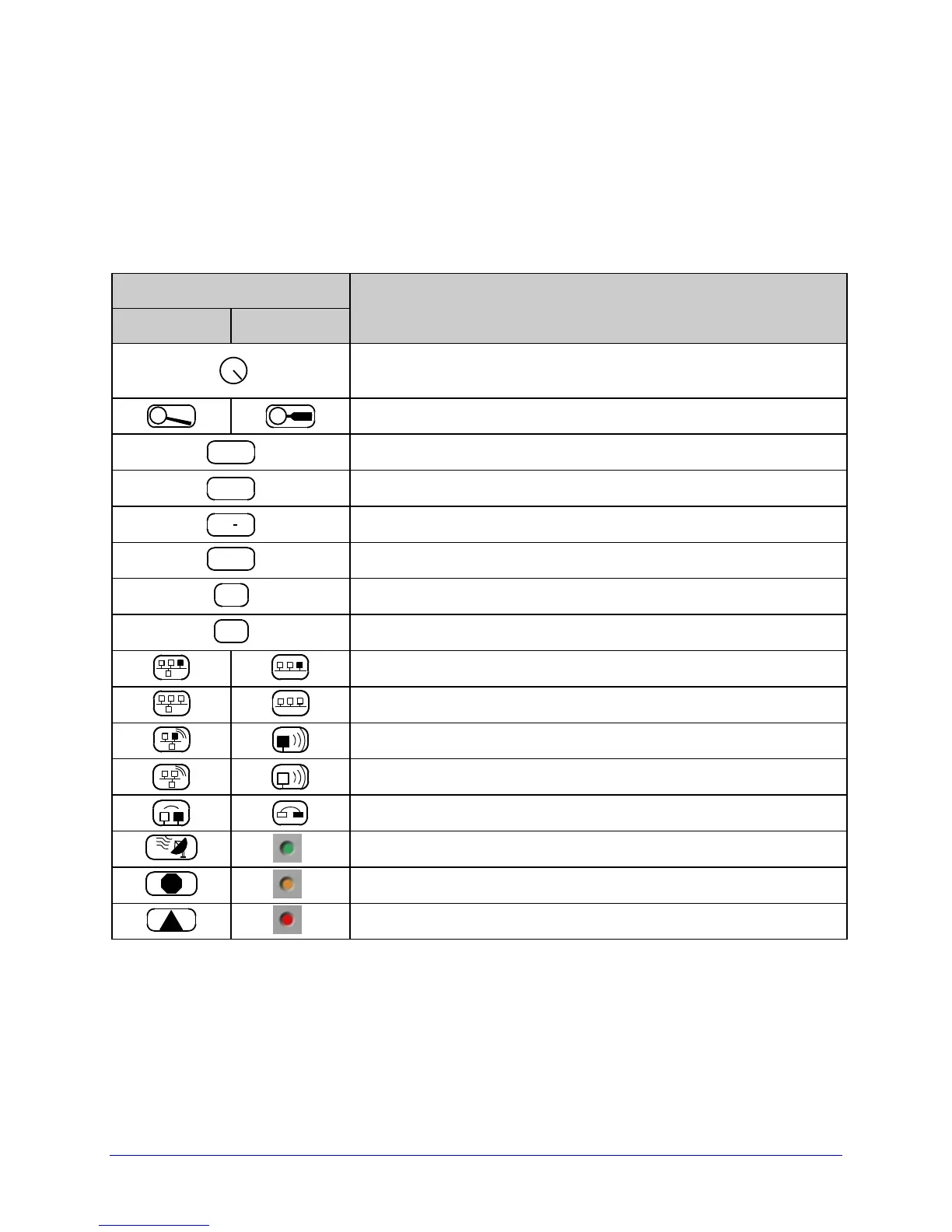

Graphics Display Icon Key
Display Size
Large Small
Description
Initialization, typically brief (but a damaged or invalid printhead
can delay the process).
M
ENU
Display large fonts; see Section 4.1.2.
DPL
Input Mode – DPL; see Section 4.2.4.
LINE
Input Mode – LINE; see Section 4.2.4.
PL Z
Input Mode – PL-Z; see Section 4.2.4.
RFID
RFID detected.
SD
SD memory card detected.
USB
HOST
USB memory (or keyboard) detected.
Wired network detected.
Server inaccessible.
WLAN associated with Access Point.
WLAN not associated with Access Point.
WLAN ADHOC Mode.
*
Receiving data.
STOP
*
Paused.
!
*
Faulted, see Section 6.1.2.
*LED

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
