Appendix G – Bar Code Details
212 Class Series 2 Programmer’s Manual
S: UCC/EAN Code 128 Random Weight
Valid Characters: 0-9
Length: At least 34 digits.
Valid bar widths: The fourth character of record is the width of the narrow bar in dots.
All other bars are a ratio of the narrow bar (2 times, 3 times, and 4 times the narrow
bar width).
This bar code is commonly used by the food and grocery industry.

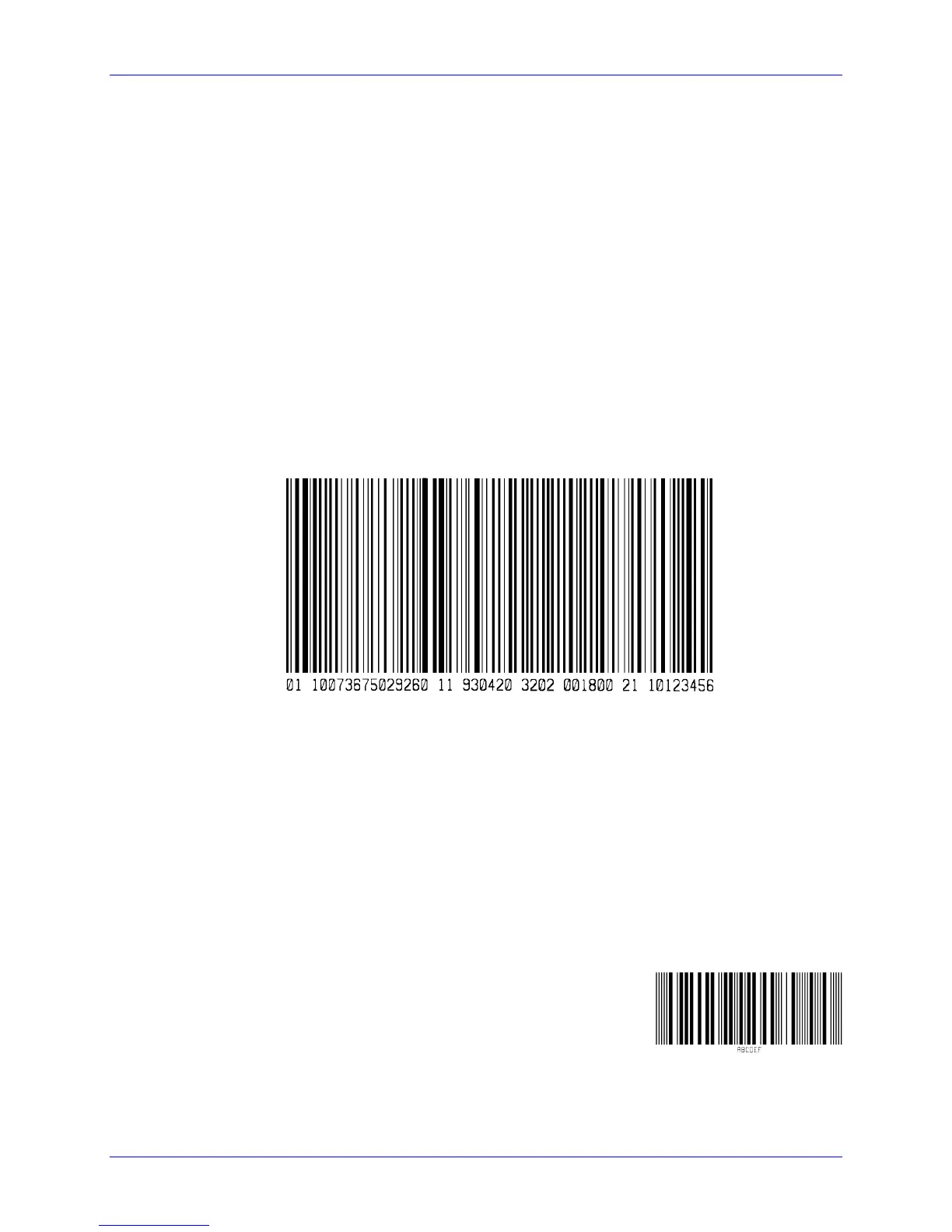

The following example prints a UCC/EAN Code 128 Random Weight bar code:
<STX>L
D11<CR>
1S000000015005001100736750292601193042032020018002110123456<CR>
121100000000100Barcode S<CR>
E
Barcode S
T: Telepen
Valid Characters: All ASCII characters.
Variable Length
Valid bar widths: The fourth character of the record is the width of the narrow bar in
dots. All other bars are a ratio of the narrow bar (2 times, 3 times, and 4 times the
narrow bar width).
The following example prints a Telepen bar code:
<STX>L
D11<CR>
1T0000000150100ABCDEF<CR>
121100000000100Barcode T<CR>
E
Barcode T

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
