Applicator Interface Card (Type 2)
The Applicator Interface Card (Type 2) has two GPIO Ports, two Auxiliary Ports (Serial C &
D) and two indicator LEDs as detailed below.
J2
J1
9
5
4
3
2
1
8
7
6
J4
1
6
11
5
4
3
2
9
8
7
10
15
14
13
12
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
8
1
J3

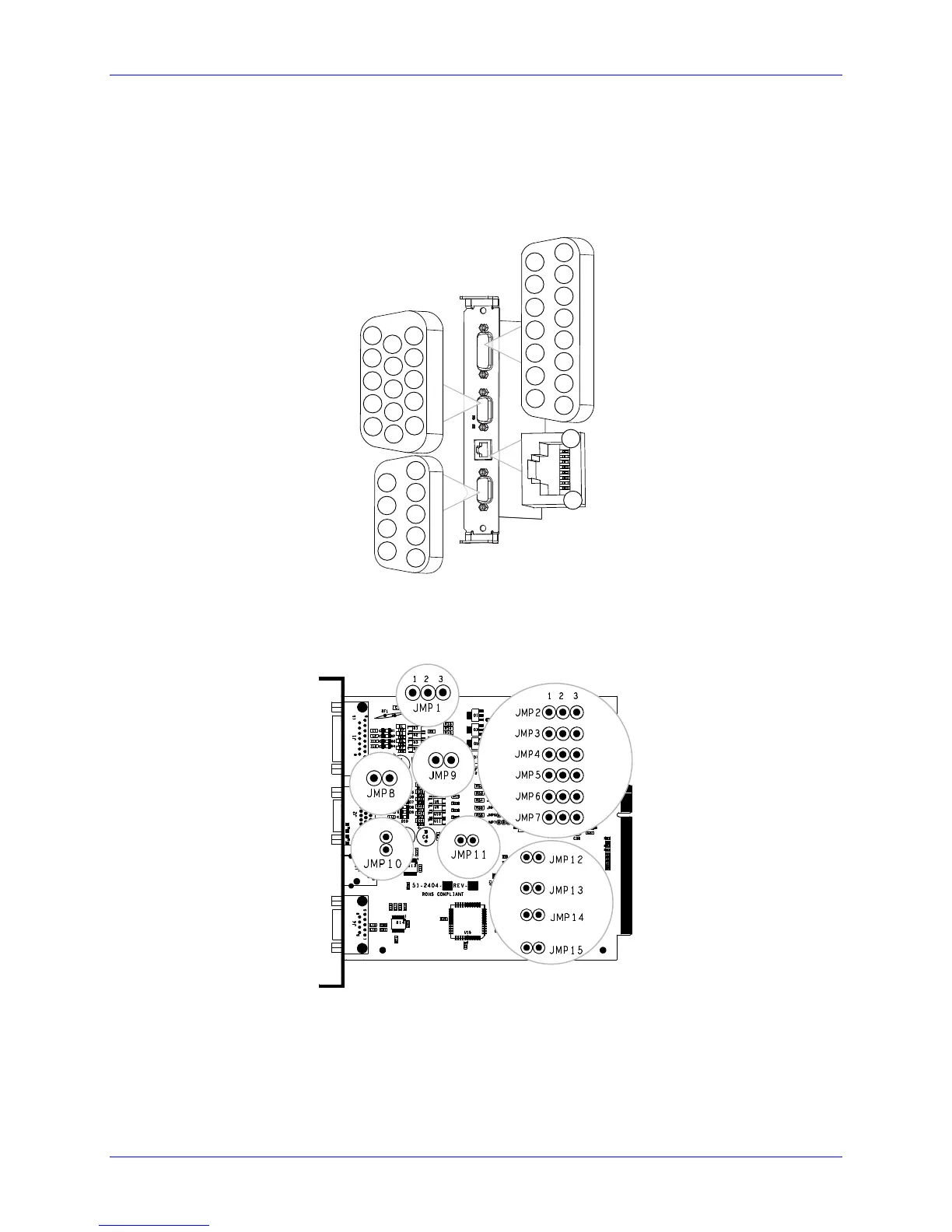

Applicator Interface Card (Type 2) Port Pin Out
Applicator Interface Card (Type 2) Hardware Jumper Locations

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
