Datamax E-Class Mark II Programmer's Manual

Appendix J – General Purpose Input Output Port Applications
Class Series 2 Programmer’s Manual 267

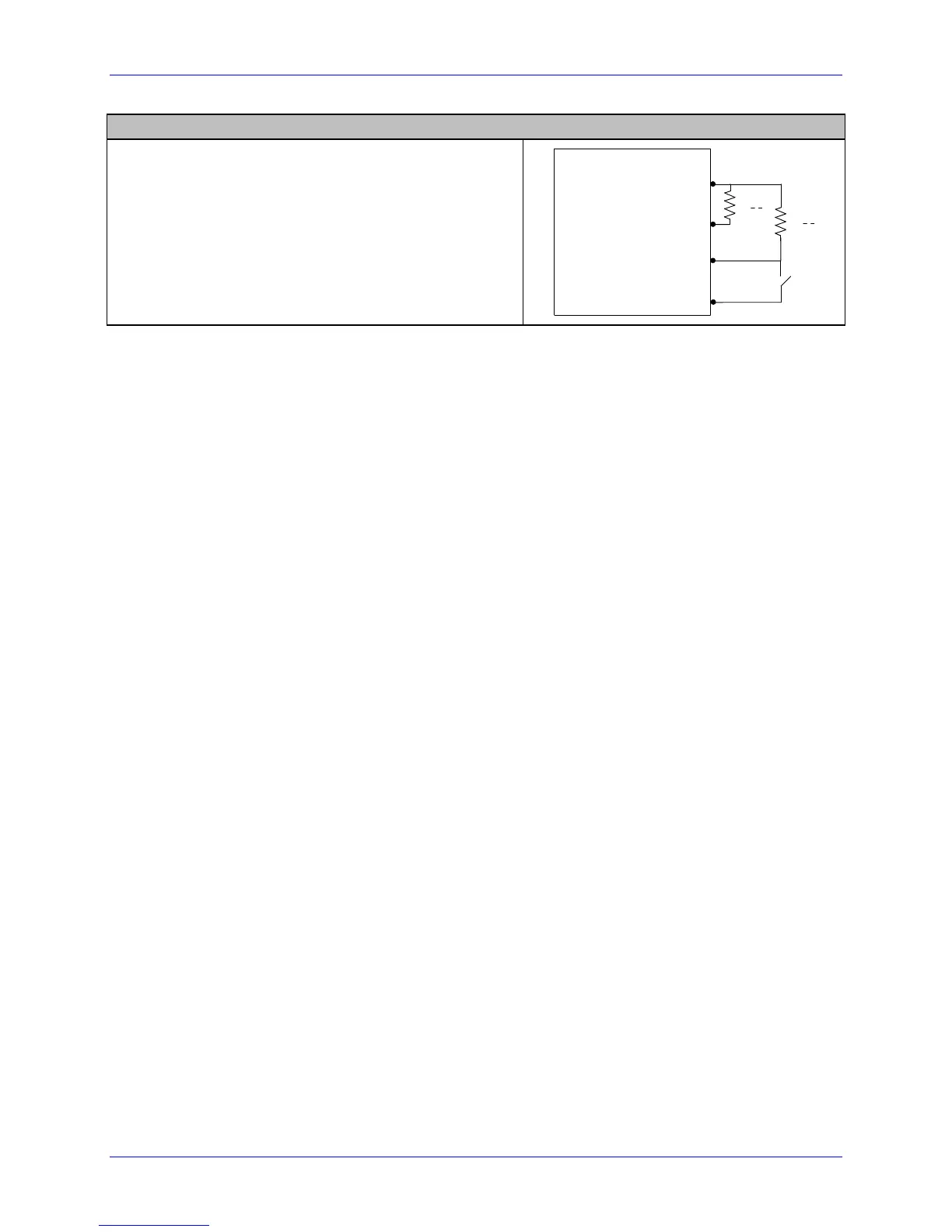

MII Sample SOP Circuit
Pin 3 should be pulled to +5VDC. In additional,
connections for the external Start of Print control can
either be directly made to Pin 4 of the Option Port (or
Main PCB connector) using a TTL-level input, or via an
interface circuit (similar to the one shown). For more
information, see the table below.
1
8
Vcc
Gnd
GPIO Connector Pin Number
3Spare
4SOP
1K
O
1K
O

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
