Chapter 4 Installation
PAGE 4-18
RELAY CONTACT-3 SIGNAL PIN No.: TB2-9 OUT-10
RELAY CONTACT –COM SIGNAL PIN No.: TB2-10
OK is output when the fastening has been performed for the number of times specified by the cycle
count.
QL OK RELAY CONTACT-4 SIGNAL PIN No.: TB2-11 OUT-11
QL OK RELAY CONTACT-4 SIGNAL PIN No.: TB2-12 OUT-11
OK output for the QL signal

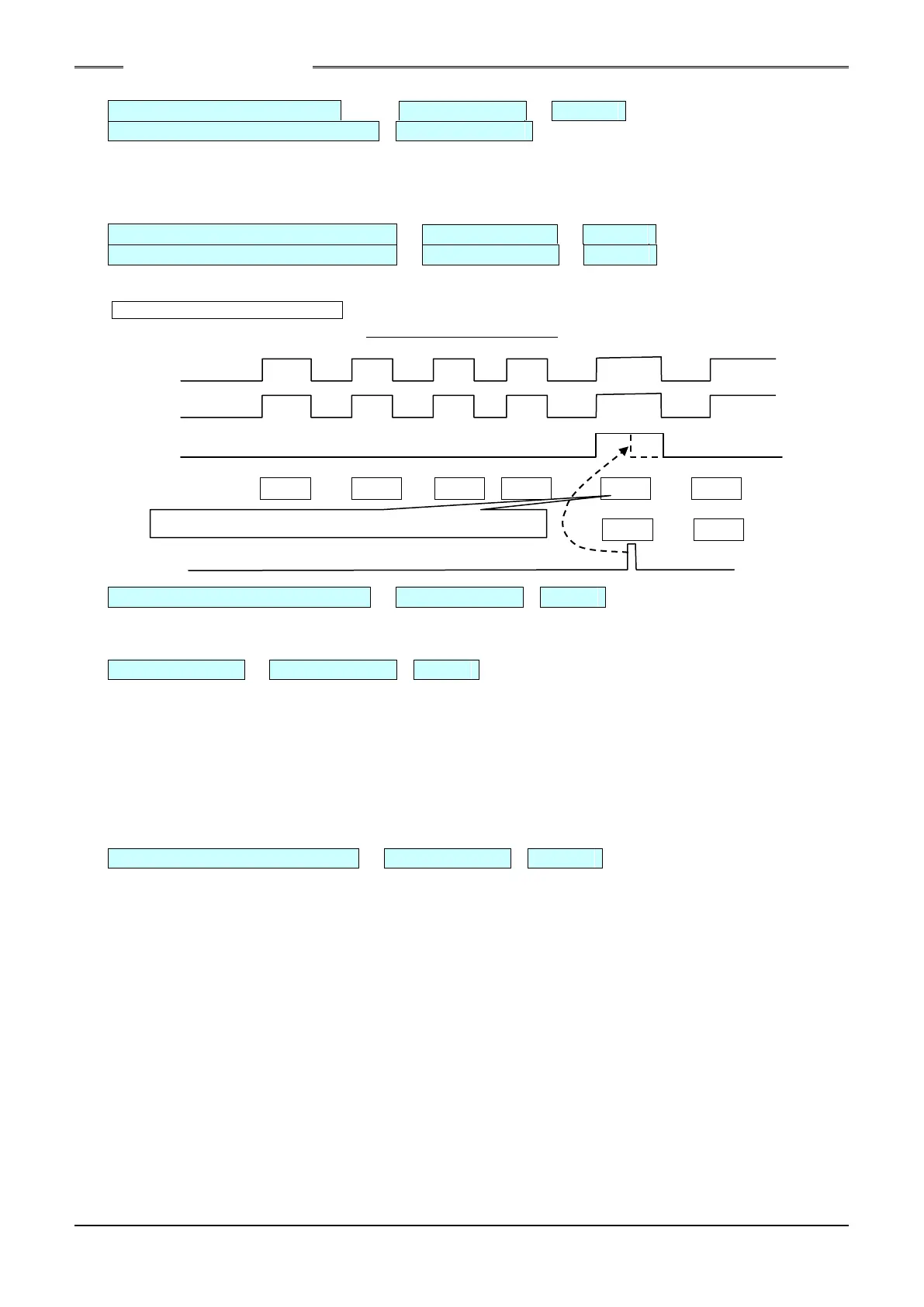

[QL OK] [BATCH OK] Timing Chart
D-No.540: Cycle count = 5
ACCEPT
QL OK
BATCH OK
D-No/COUNT
BATCH OK RESET
Fastening Result Data Available PIN No.: TB3-7 OUT-6
The “ON” output is performed when fastening result data are present.
CF CARD FULL PIN No.: TB3-8 OUT-7
The “ON” output is the controller with CF card option meets one of the following conditions. Once this
signal turns "ON", it remains "ON" until the power is turned ON again.
・CF card remaining capacity is 1% or less (Controller software version V1.209 or earlier)
・CF card remaining capacity is less than 20MB (Controller software version V1.210 or later)
・CF card not inserted
・Error occurred when writing file
PROGRAM: PROGRAM MODE PIN No.: TB2-6 OUT-12
The “ON” output is performed in the PROGRAM mode.
ｃ０１ ｃ０２ ｃ０３ ｃ０４ ｃ０５ → ｃ０１
↓
ｃ００ → ｃ０１
Clear at BATCH OK RESET, count starts after “c00”.
S0140185-H
