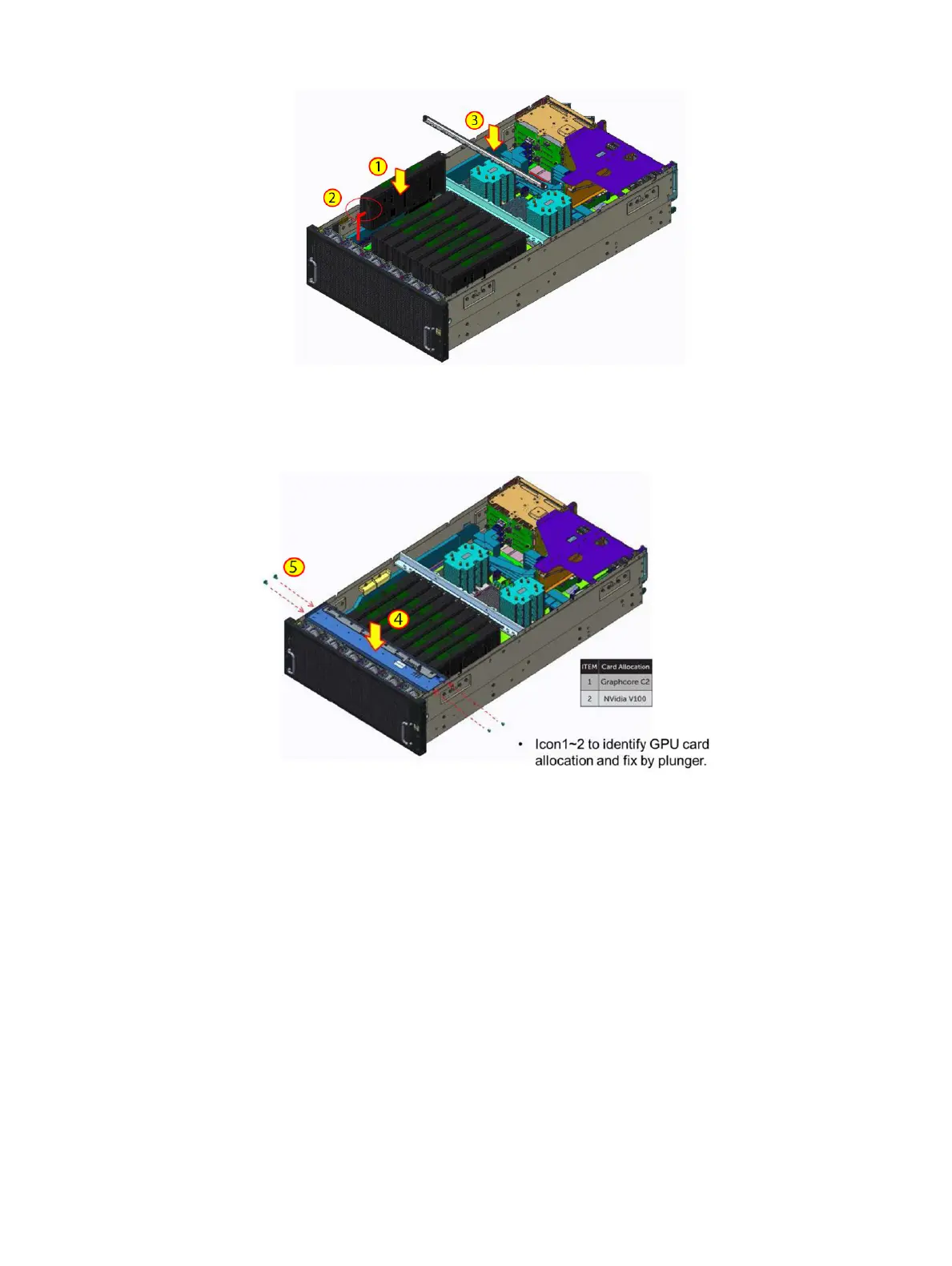

Figure 26. Installing the GPU card
4 Insert the GPU clamp into chassis.
5 Secure xing the GPU clamp by four screws.
Figure 27. Installing the GPU clamp
Next steps
1 Installing the system cover..
2 Follow the procedure listed in After working inside your system
Removing a GPU support bracket
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the system cover.
4 Remove the GPU card.
Installing and removing system components
55
