3 Install the GPU card
4 Install the system cover
5 Follow the procedure listed in After working inside your system
Removing a GPU power interposer board
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the system cover.
4 Remove the GPU card.
5 Remove the GPU support bracket.
6 Remove the PCIe switch board module.
Steps
1 Remove the eleven screws securing the GPU power interposer board.
2 Lift the GPU power interposer board from the system.

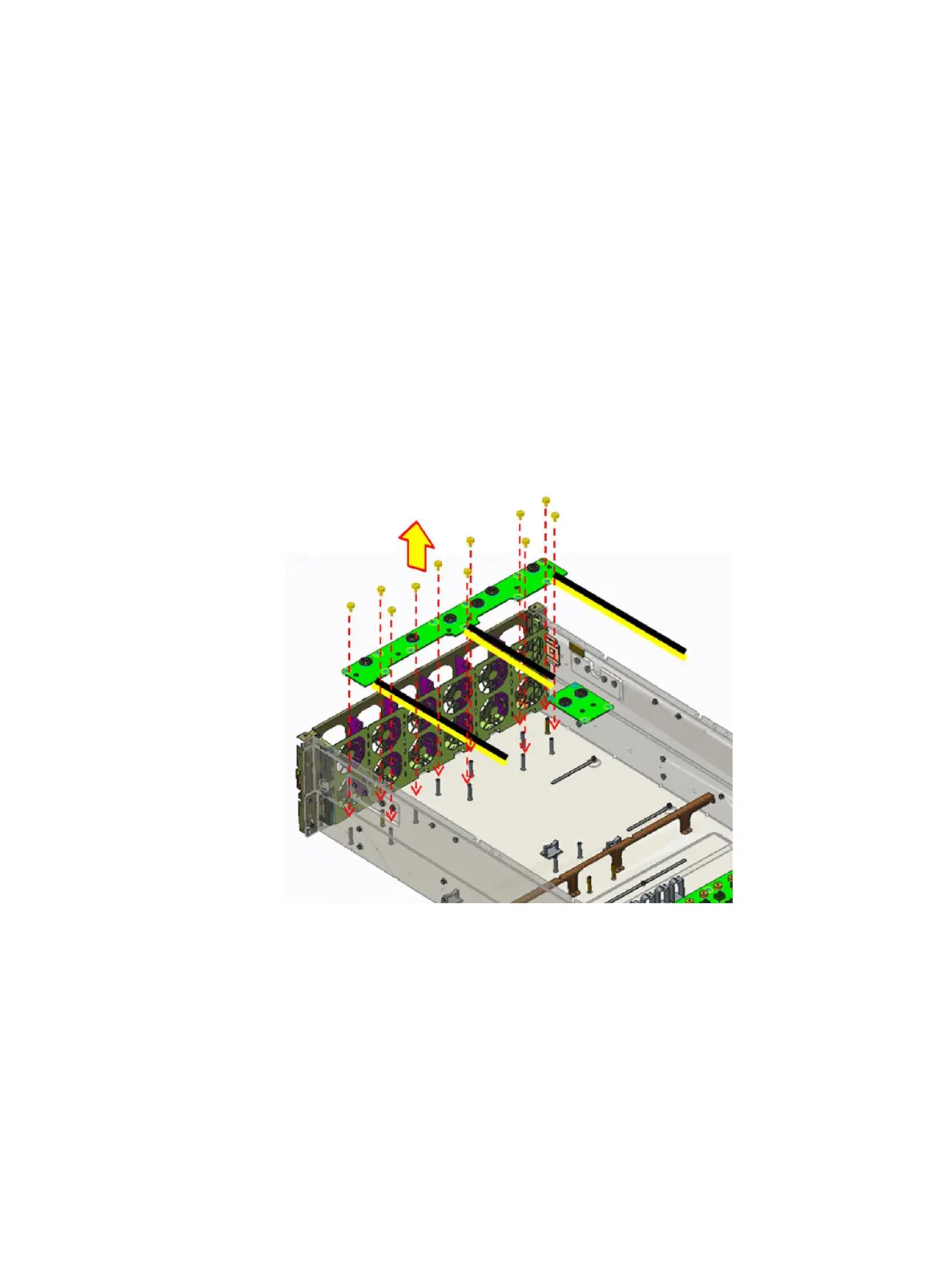

Figure 36. Removing the GPU power interposer board
Next steps
• Disconnect all the cables from the GPU power interposer board. For more information, see Power cable assembly to PDB
• Installing a GPU power interposer board
Installing and removing system components
61
