Dell EMC DSS8440 - Fan Louvers; Removing the Fan Louvers

3 Connect the front control module cable to the system board and ensure that the cable routing is correct.

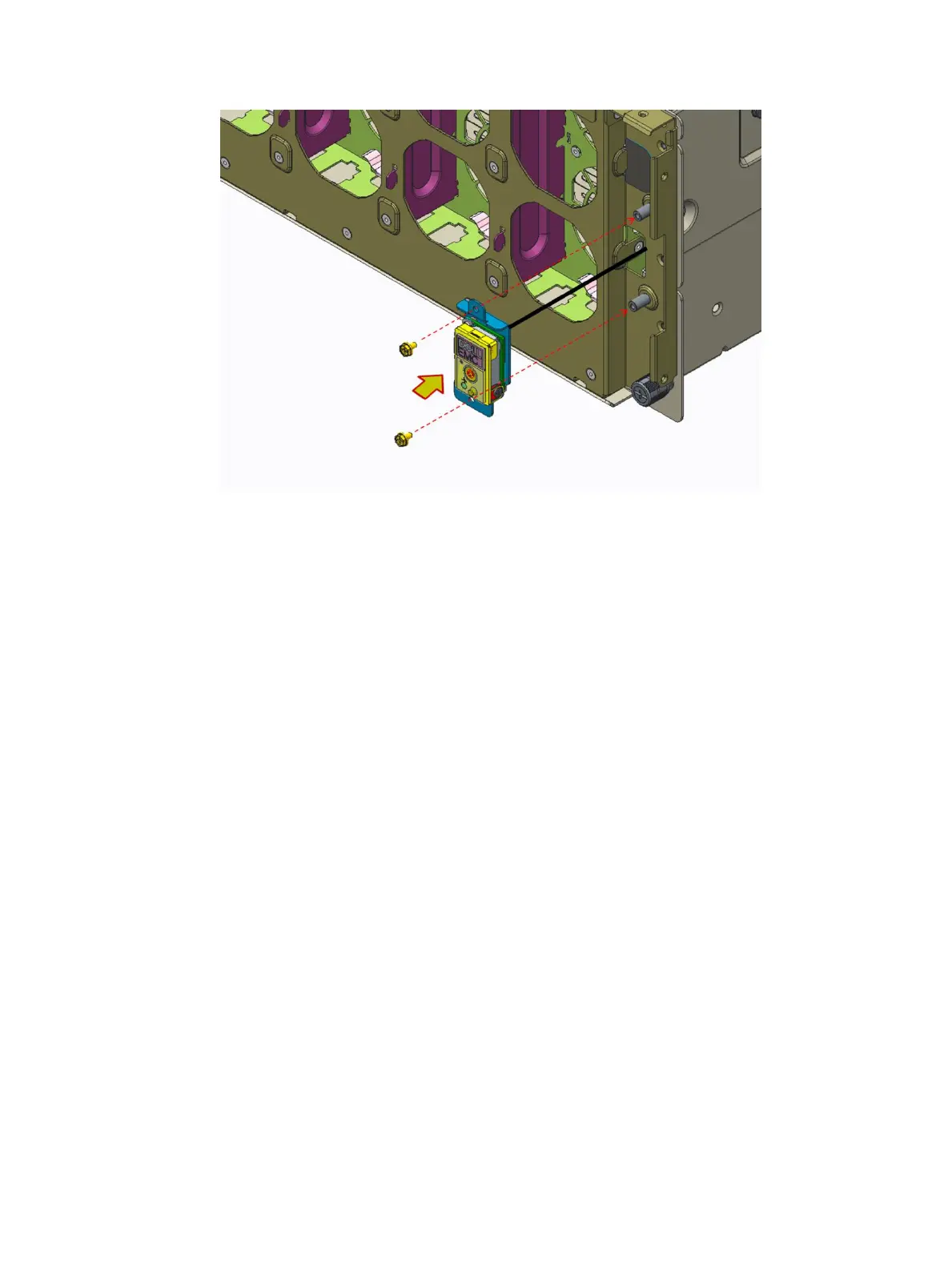

Figure 70. Installing the front control module
Next steps
1 Install the Buttery module,front bezel,System cover.
2 Follow the procedure listed in After working inside your system.
Fan louvers
Removing the fan louvers
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the system cover.
4 Remove the PCIe switch board module.
5 Remove the air shroud.
6 Remove the GPU support bracket.
Steps
1 Lift the fan louver from the hooks
2 Pull the fan louver away from the system.
88
Installing and removing system components
