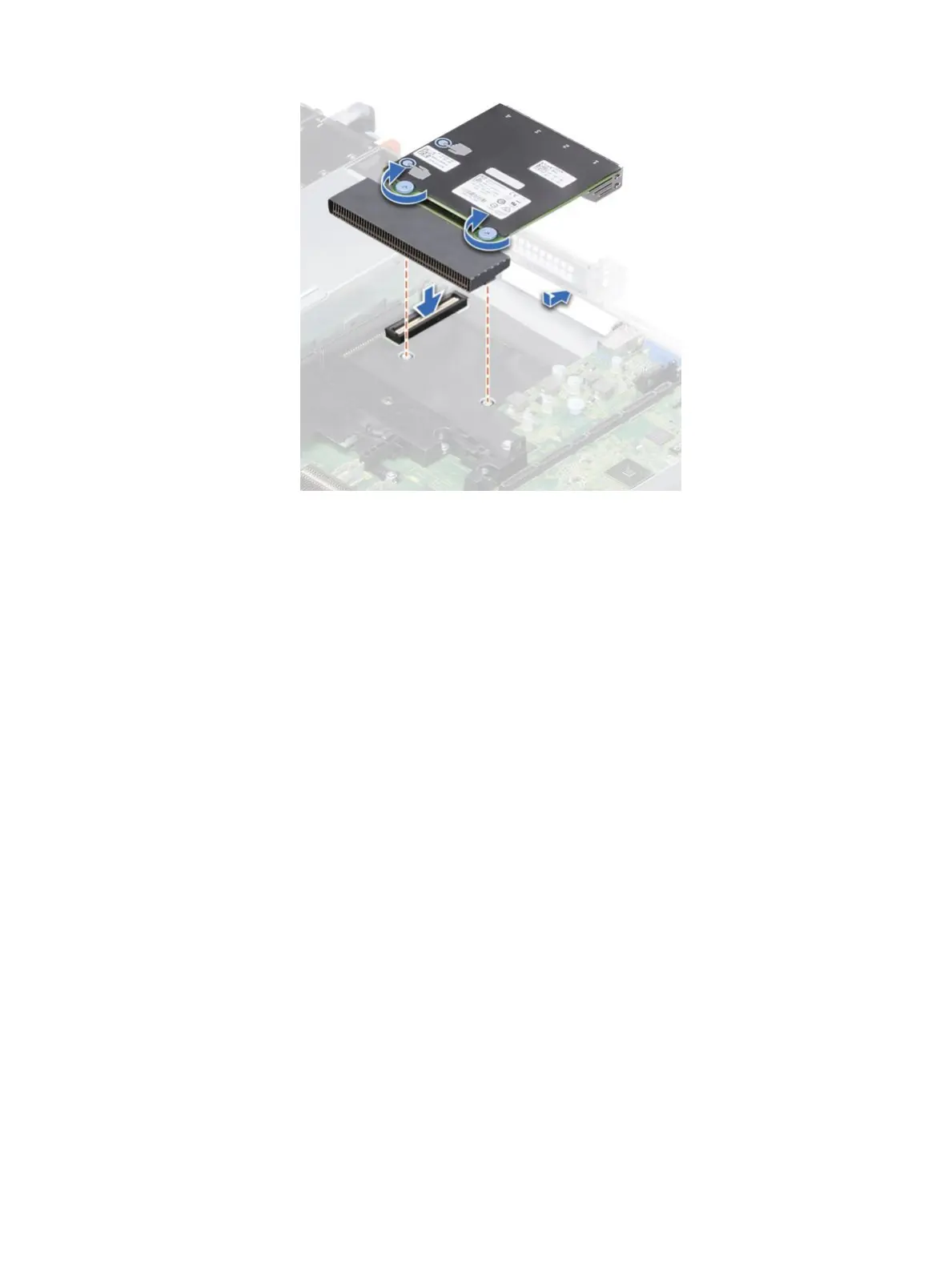

Figure 54. Installing the network daughter card
System board tray module
Removing the system board tray module
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the following:
a Remove the system cover.
b Remove the air shroud.
c Remove the GPU card.
d Remove the GPU support bracket.
e Remove the PCIe switch board module.
f Buttery module
g Riser 2 Module
h Riser 1 module
i Memory
j Processor and heat sink
k Network daughter card
Steps
1 Disconnect all cables from the system board.
2 Before the removing the system board tray module, it should loosen the screw at the red mark position.
