DSS8440 system feature overview
The DSS8440 is a 4U PCIe Accelerator Server by PCIe Switch Board(PSB) with PCIe downstream up to 10x general-purpose double width
graphics processing unit (GPGPU), 8x NVMe, 4x (center) + 4x (right, optional) rear-PCIe slots and upstream the 14G leveraged
PowerEdge C4140.
The system contains conguration-A with 8x/10x double width GPGPU, 10x 2.5” hot-swap storage-drives (no expander), single or dual
Skylake processors, 845.4mm maximum length, PCIe slots (through PCIe Switch Board(PSB) and C4140 risers), 24x DIMM slots, quad hot-
plug power-supply units, rNDC, and the ability to use an HBA for the data drives.

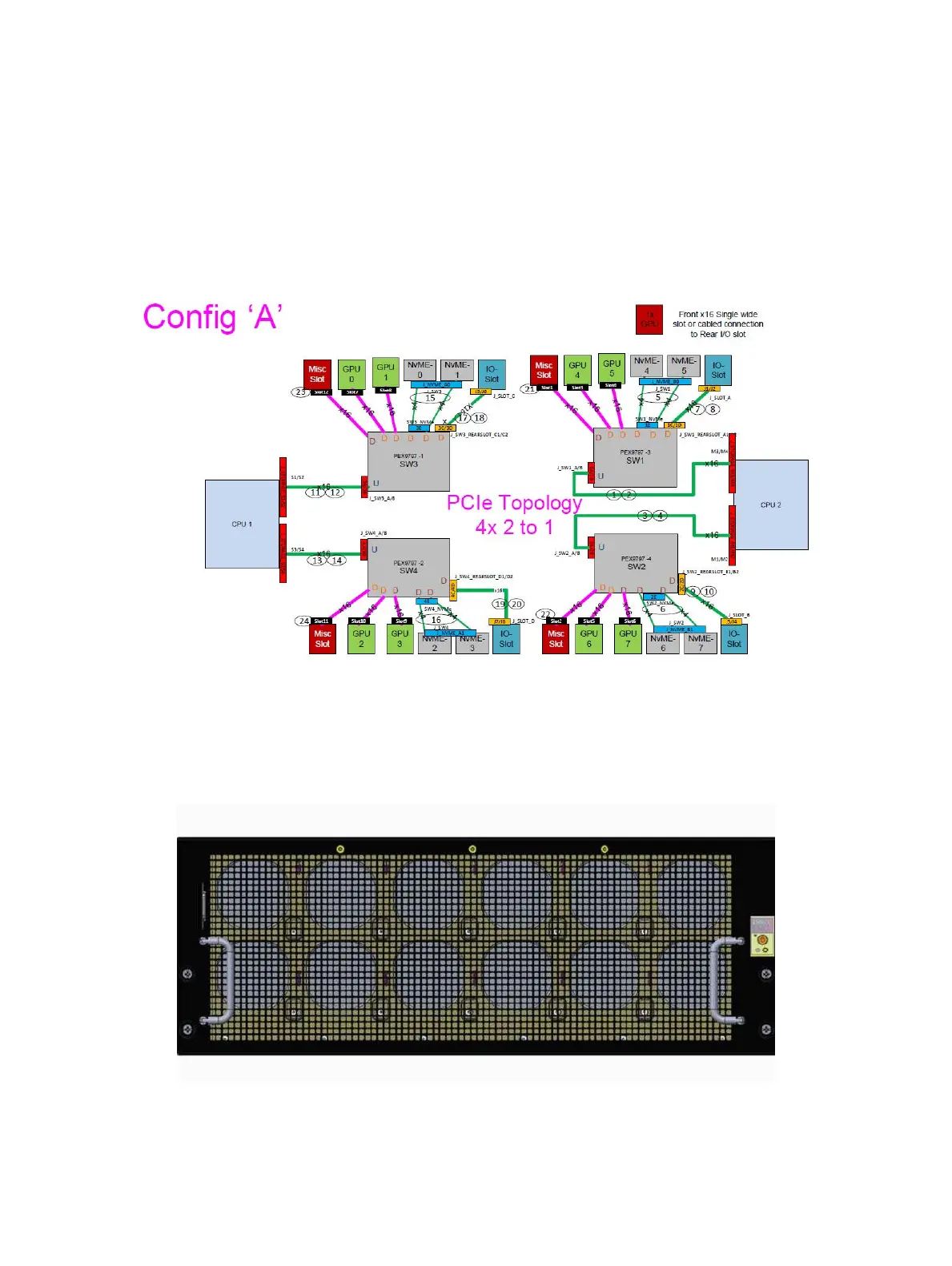

Figure 3.
DSS8440 system feature overview
Front view of the system
Dell EMC DSS8440 system overview
9
