1 Install the power distribution board.
Installing the power distribution board
Prerequisite
1 Follow the safety guidelines listed in Safety instructions.
Steps
1 Install the power distribution board to the system chassis.
2 Tighten the eight screws to secure the power distribution board to the system chassis.

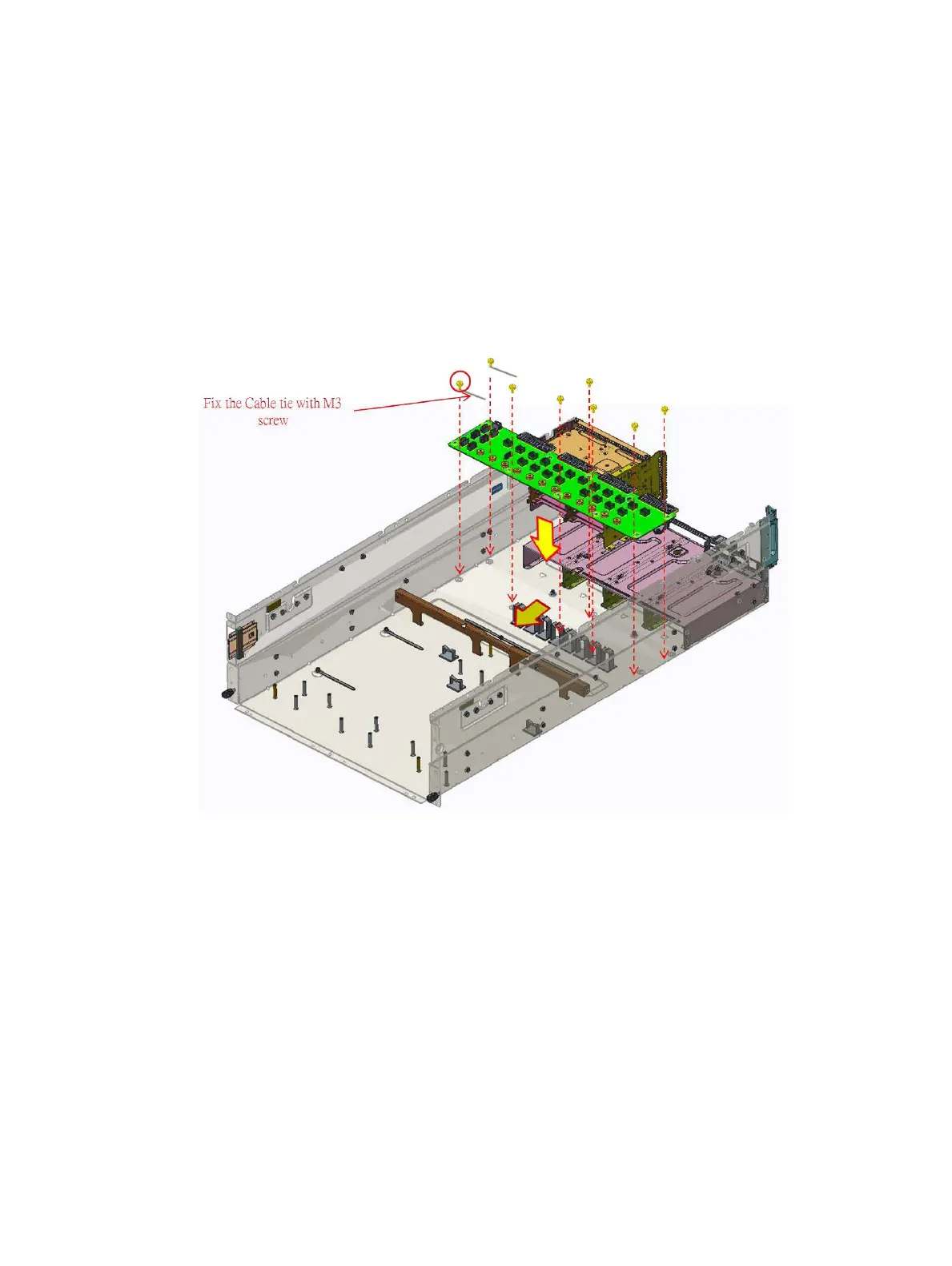

Figure 66. Installing the power distribution board
Next steps
1 Connect all cables from the power distribution board.
2 Install the system board tray module.
3 Install the Air shroud
4 Install all the PSUs.
5 Install the system cover
6 Follow the procedure that is listed in After working inside your system.
