Dell EMC DSS8440 - Network Daughter Card; Removing the Network Daughter Card

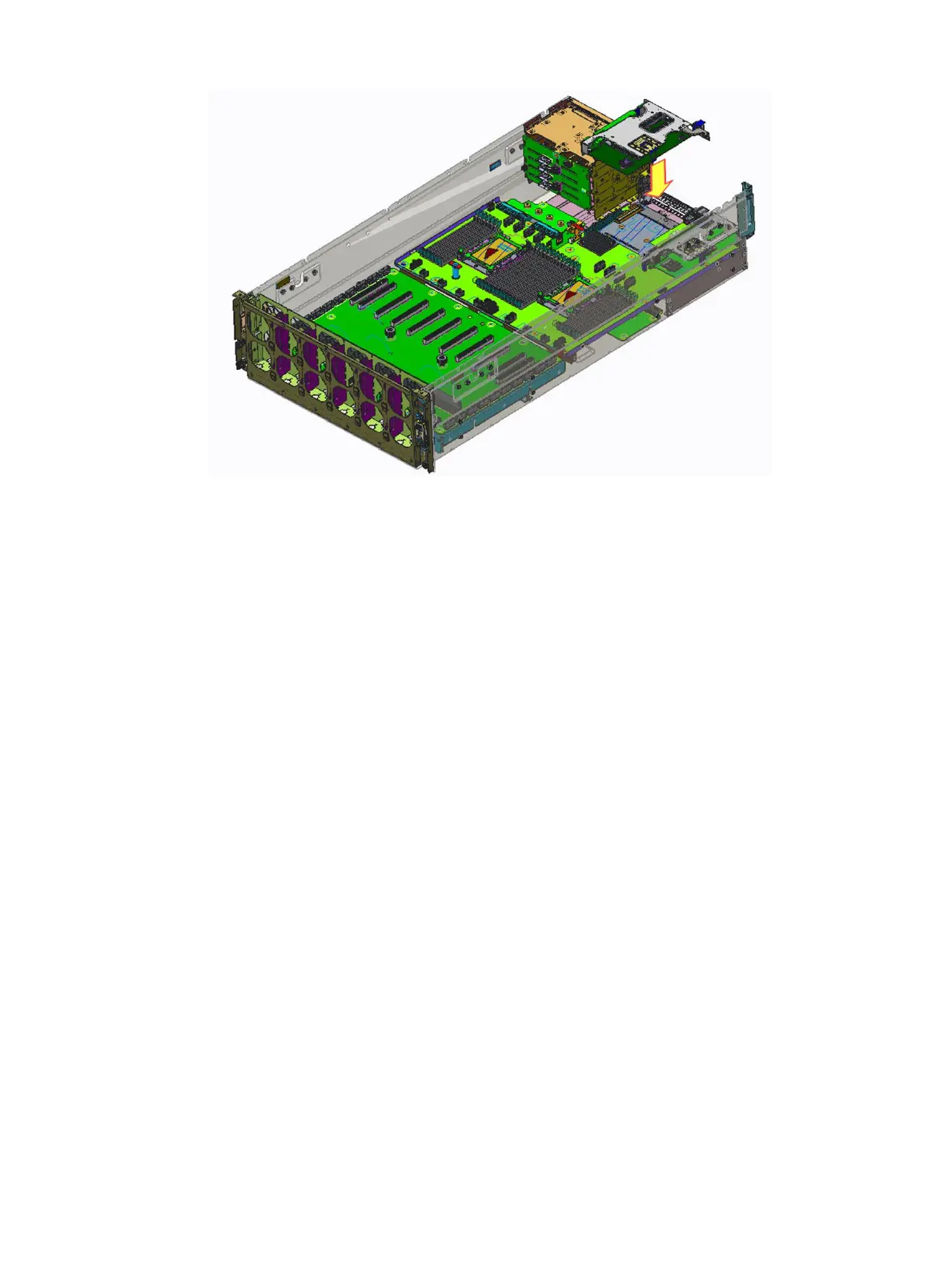

Figure 52. Installing the riser 1 module
Next steps
1 Install the buttery module.
2 Install the top cover.
3 Follow the procedure listed in After working inside your system
Network daughter card
Removing the network daughter card
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the system cover..
4 Remove the air shroud.
5 Buttery module
6 Riser 2 Module
7 Riser 1 module
Steps
1 Using a Phillips #2 screwdriver, loosen the captive screws that secure the network daughter card (NDC) to the system board.
2 Hold the NDC by the edges on either side of the touch points, and lift to remove it from the connector on the system board.
3 Slide the NDC towards the front of the system until the Ethernet connectors are clear of the slot in the back panel.
74
Installing and removing system components
