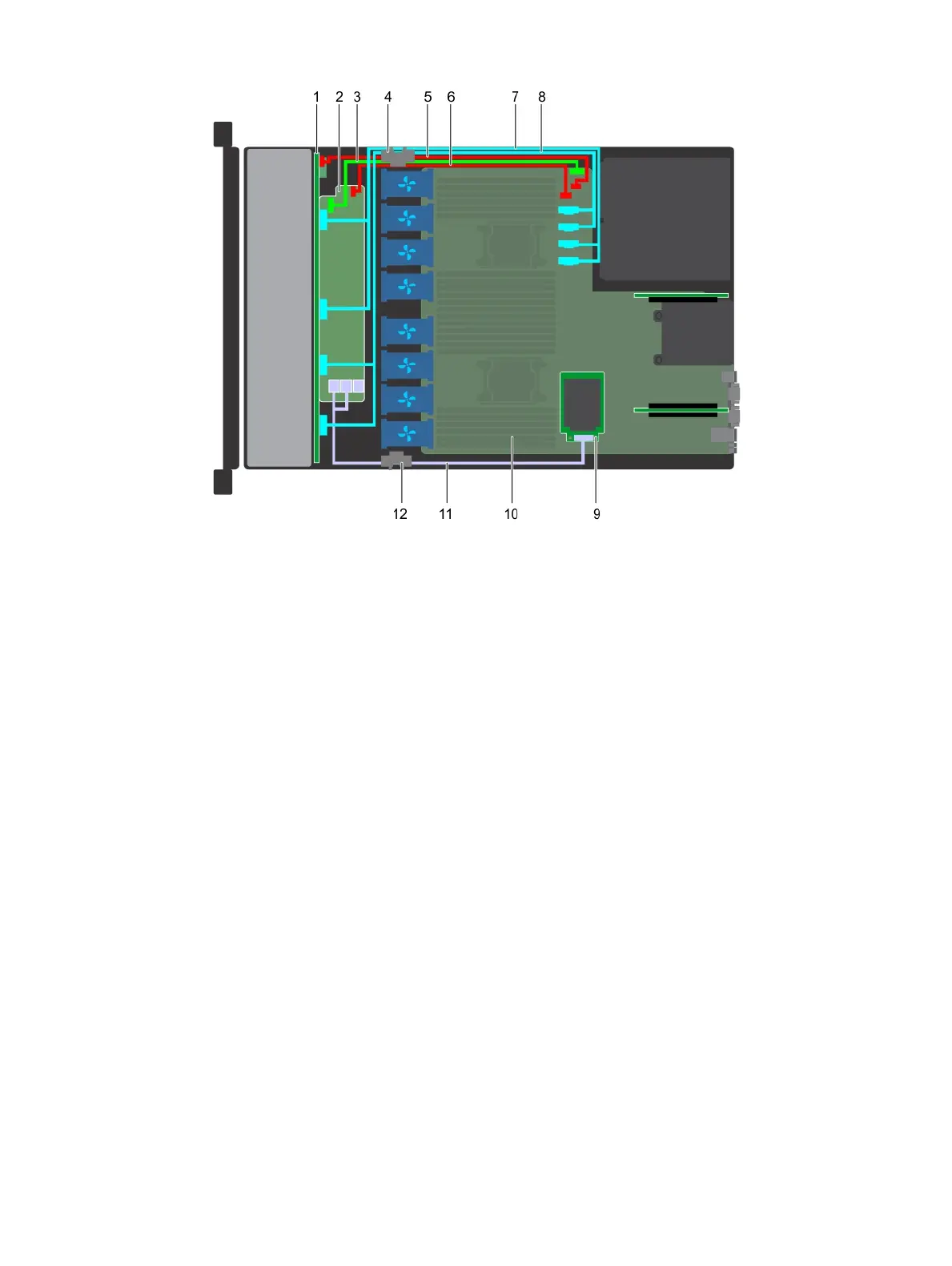

Figure 88. Cable routing - 10 x 2.5 drive backplane with mini PERC
1
backplane 2 backplane expander
3 backplane signal cable (BP: J_BP_SIG to MB: J_BP_SIG1) 4 cable routing clip
5 backplane power cable(BP: J_BP_PWR_A1 to MB: J_BP1) 6 backplane expander power cable(BP: J_BP_PWR_A to MB:
J_BP1)
7 NVMe cable (BP PCIe B1 and BP PCIe A1) 8 NVMe cable (BP PCIe B0 and BP PCIe A0)
9 mini PERC card 10 system board
11 SAS cable(BP: BP SAS A0, BP SAS B0 to MP: J_STORAGE1) 12 cable routing clip
Installing and removing system components 137
