Dell 0G8DW - Installing the Left Control Panel

4 For ease of removal of the left control panel, remove the cooling fan #1 to access the cable latch.
Steps
1 Pull the cable latch and disconnect the control panel cable from the system board connector.
2 Pull the cable latch and disconnect the control panel cable from the system board connector.
3 Using a Phillips #1 screwdriver, remove the screws that secure the cable cover.

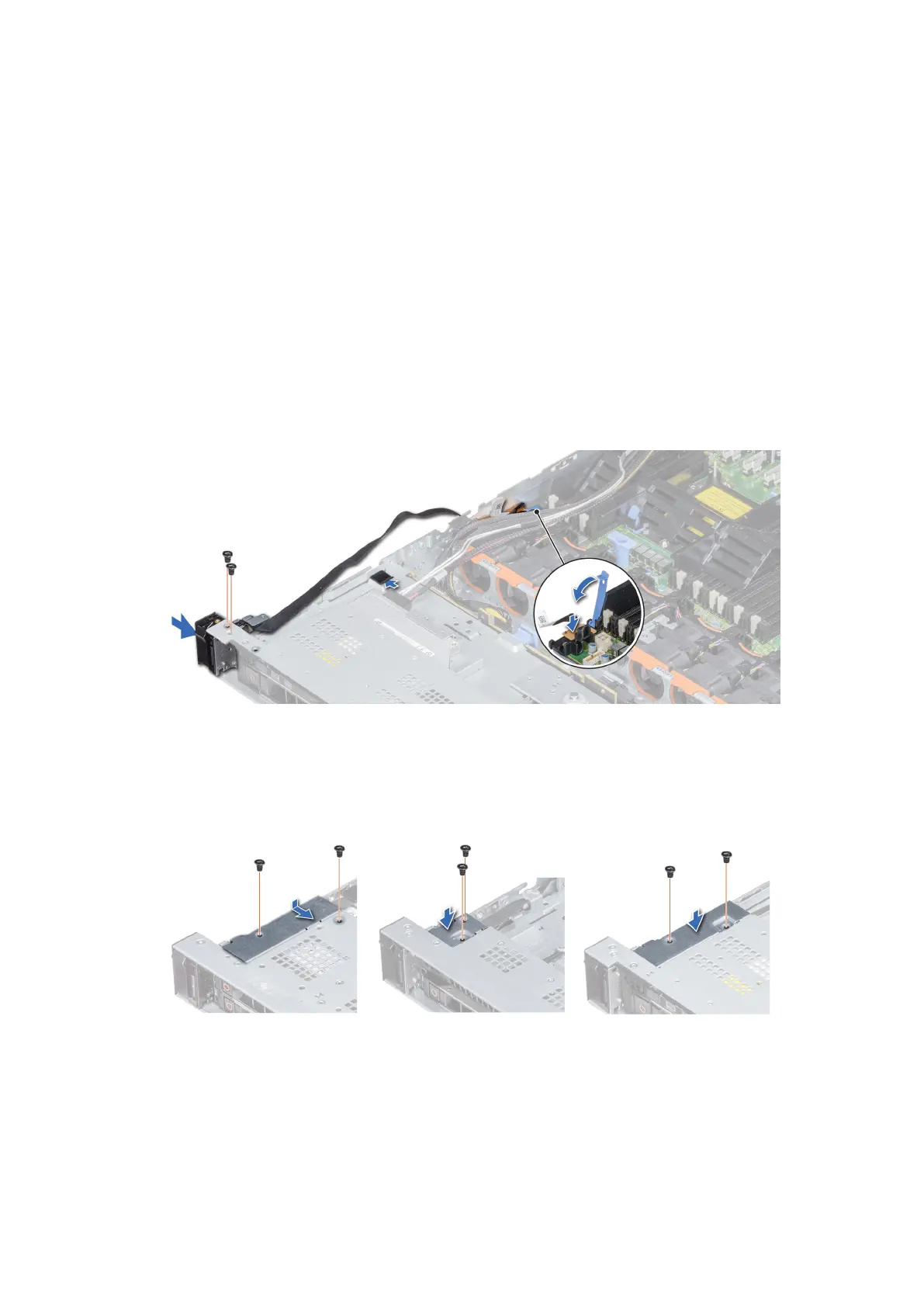

Figure 112. Removing the cable cover
4 Using a Phillips #1 screwdriver, remove the screws that connect the control panel to the system.

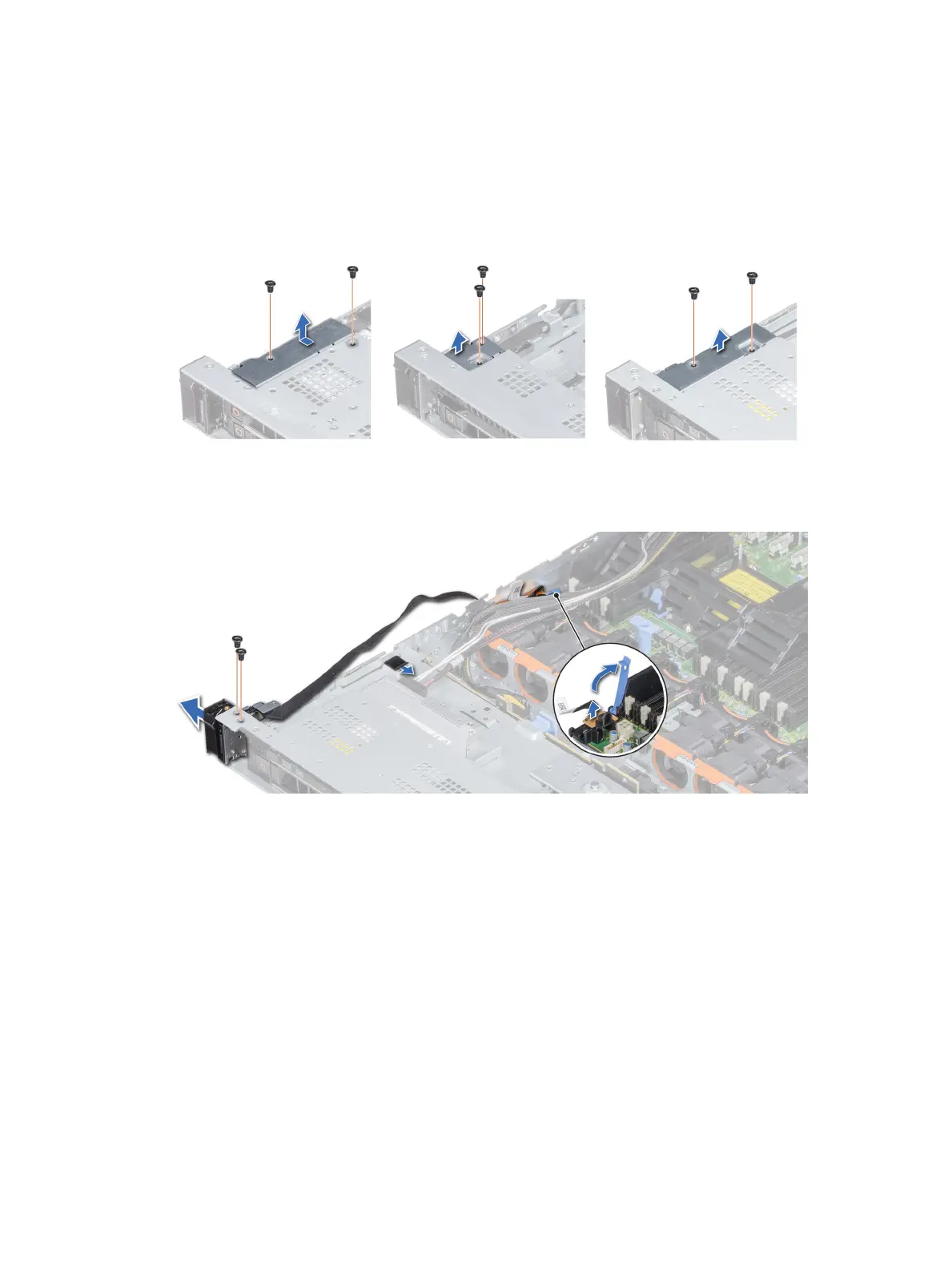

Figure 113. Removing left control panel
5 Holding the control panel by its sides, remove the control panel away from the system.
Next step
Install the left control panel.
Installing the left control panel
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Route the control panel cable through the side wall of the system.
2 Align the left control panel assembly with the control panel slot on the system and place the assembly in the slot on the system.
3 Connect the control panel cable to the system board connector and secure it using cable latch.
