Cable routing

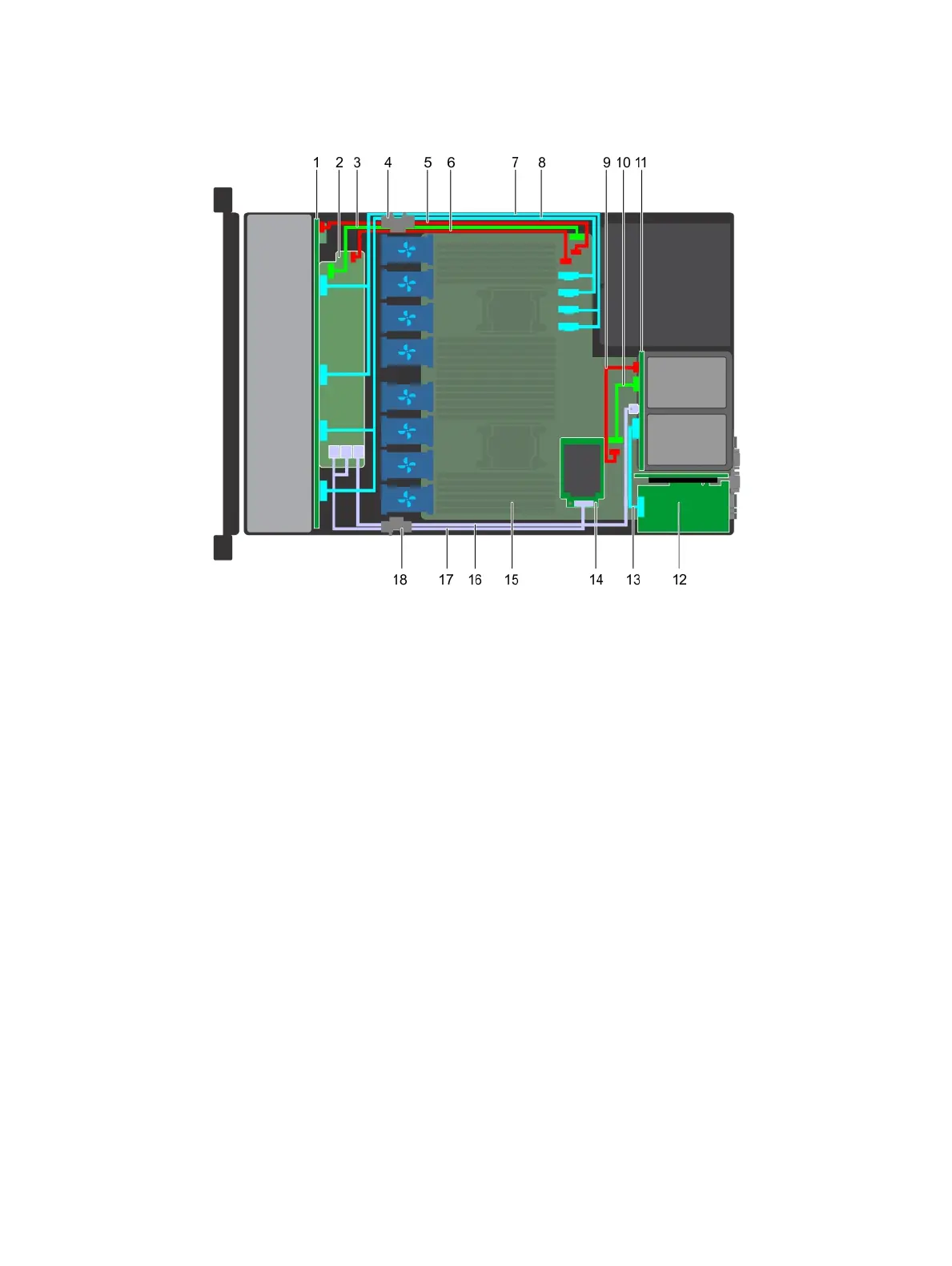

Figure 87. Cable routing - 10 x 2.5 drive backplane and 2 x 2.5 rear drive backplane with mini PERC
1
backplane 2 backplane expander
3 backplane signal cable (BP: J_BP_SIG to MB: J_BP_SIG1) 4 cable routing clip
5 backplane power cable(BP: J_BP_PWR_A1 to MB: J_BP1) 6 backplane expander power cable
7 NVMe cable (BP PCIe B1 and BP PCIe A1) 8 NVMe cable (BP PCIe B0 and BP PCIe A0)
9 rear backplane power cable(Rear BP: J_BP_BPO to MB:
J_BP_PWR_A1)
10 rear backplane signal cable (Rear BP: J_BP_SIG0 to MB:
J_BP_SIG1)

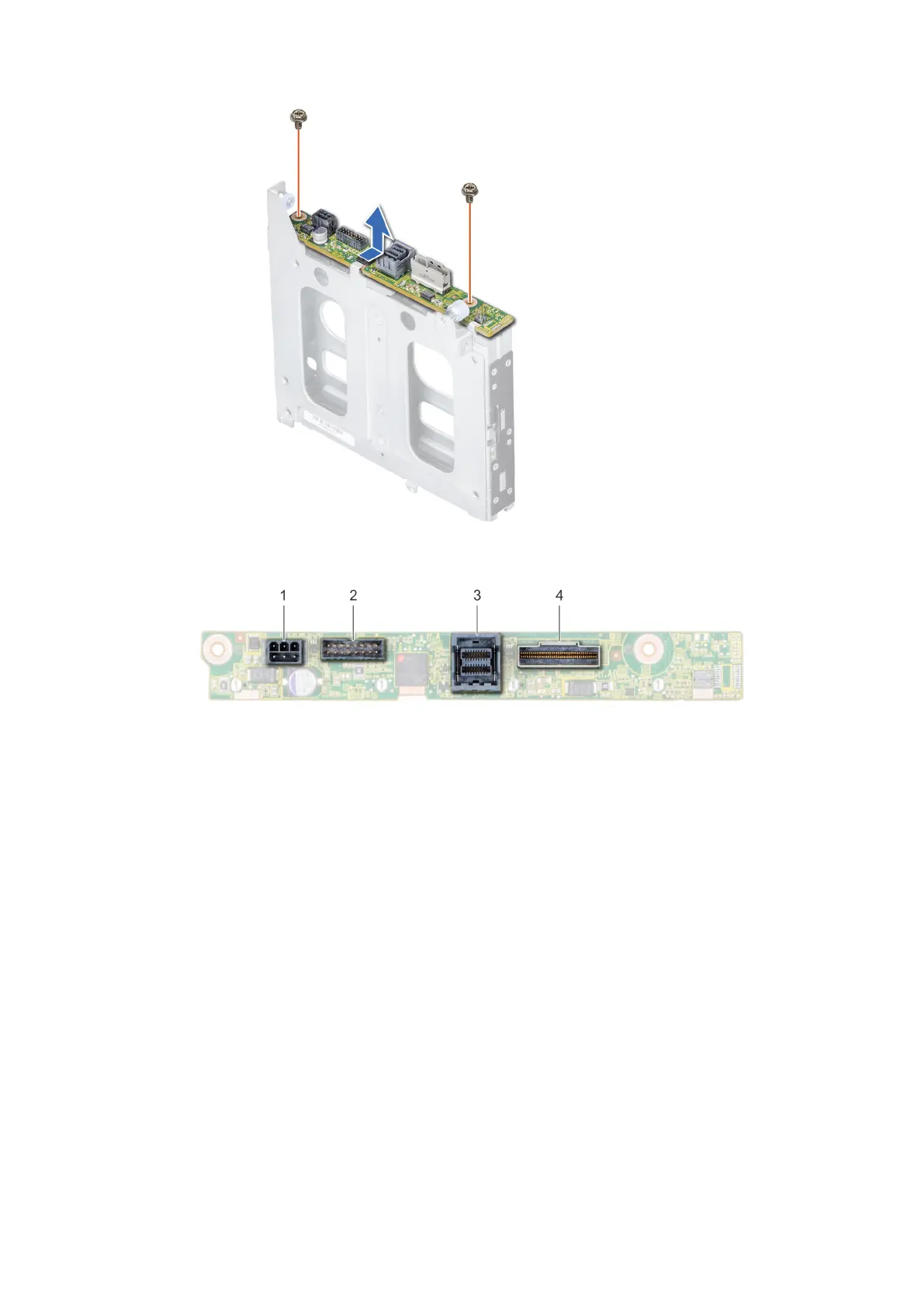

11 rear backplane 12 PCIe expansion card
13 PCIe cable 14 mini PERC card
15 system board 16 SAS cable (BP: MiniSAS HD A2 to MB: J_SAS_1)
17 SAS cable (BP: BP SAS A0, BP SAS B0 to MP: J_STORAGE1) 18 cable routing clip
