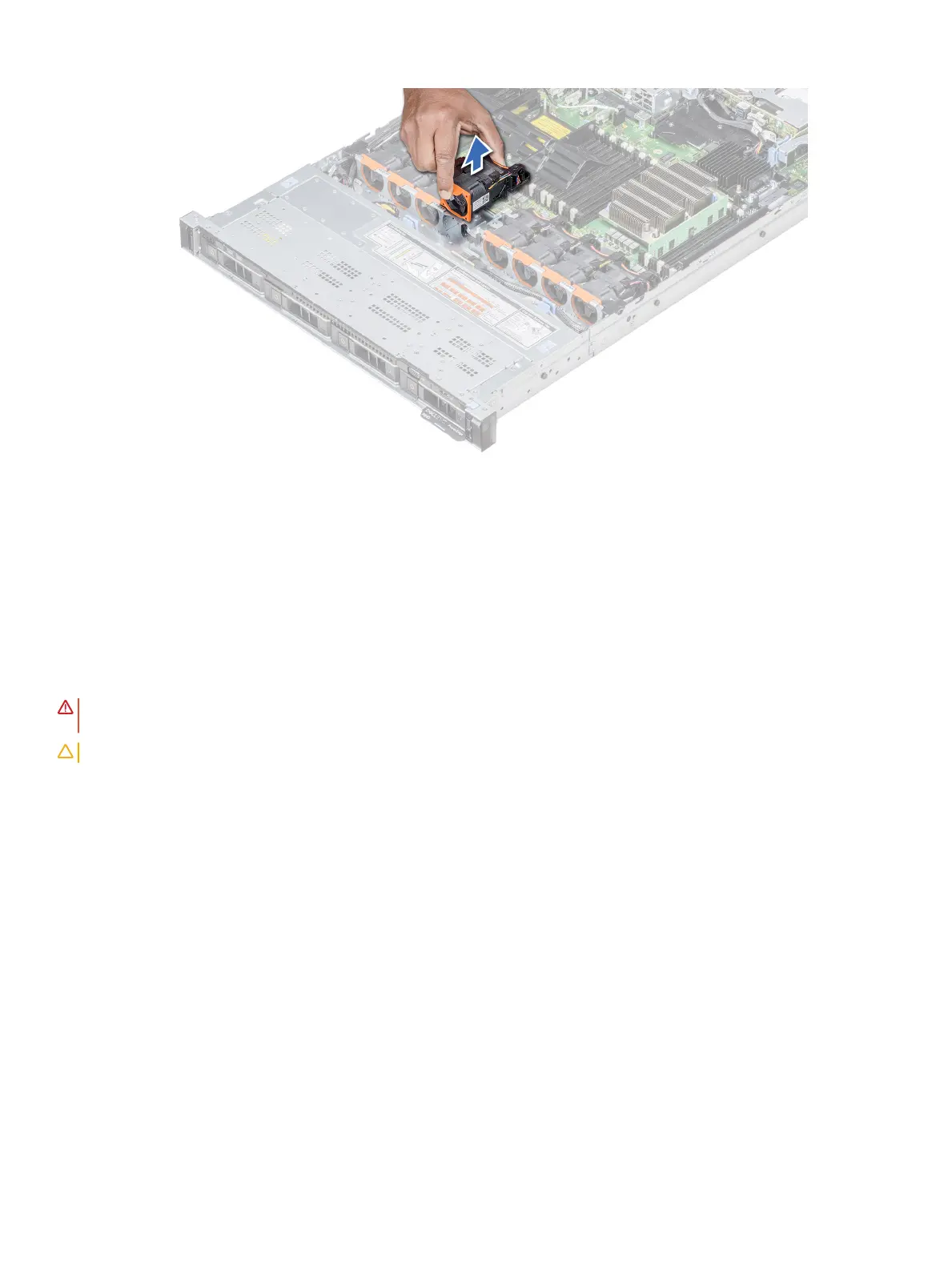

Figure 31. Removing the cooling fan
Next step
If applicable, install the cooling fan.
Installing a cooling fan
The procedure for installing standard and high performance fans is identical.
Prerequisites
WARNING
: Opening or removing the system cover when the system is on may expose you to a risk of electric shock. Exercise
utmost care while removing or installing cooling fans.
CAUTION: The cooling fans are hot swappable. To maintain proper cooling while the system is on, replace only one fan at a time.
Follow the safety guidelines listed in Safety instructions.
Steps
1 Holding the touch points on the cooling fan, align the connector on the cooling fan with the connector on the system board.
2 Push the cooling fan, by pressing on the touch point, till the fan is rmly seated on the connector.
82
Installing and removing system components
